Aiphone JP-4MED Aiphone Corporation
Images may not represent actual product and finish

Aiphone JP-4MED Aiphone Corporation

Your Price: $1,726.25
Retail Price:$2,762.0000
Your Savings:$1,035.75(38%)
Hands-Free Color Video Intercom Master Station, Handset, Color LDC Touchscreen, Status LED, Microphone and SD Card slot
Part Number : AIP_JP4MED
Availability: 23 In Stock
Aiphone JP-4MED Aiphone Corporation

Notice: The info below is not item specific.

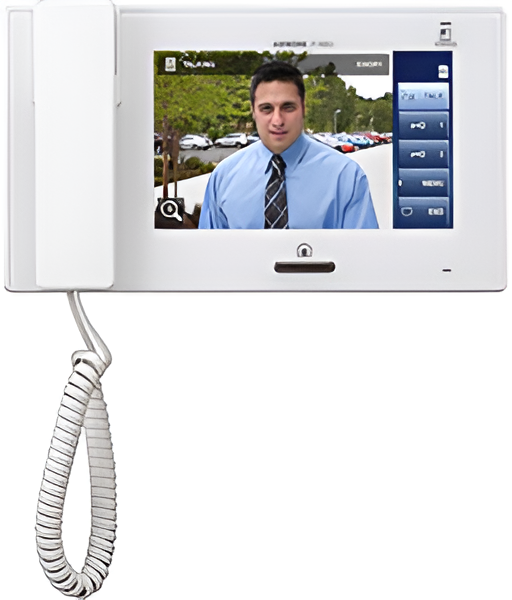

JP-4MED is a video master station with a 7" color touchscreen LCD. The JP-4MED offers handset (duplex) and hands-free (VOX) communication. This unit will support up to 4 door stations and 8 inside stations. All inside stations are equipped with a door release button for the user to allow visitor entry. JP-4MED is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. Picture memory records up to 20 calls to internal memory and 1,000 calls to a removable SD / SDHC card (not included).

Features:

  • 7" color touchscreen LCD.
  • Hands-free (VOX) or handset communication.
  • Camera position and zoom can be set for call-in.
  • Video out via supplied connector.
  • Picture Memory: Internal: 20 calls; SD / SDHC: 1,000 calls.
  • Door release button.
  • Optional service button.
  • Security inputs for alerting stations.
  • PTZ and brightness control.
  • Selectable call tones (8).
  • Station partitioning with security code.
  • All Call to inside stations.
  • Door monitoring.
  • Continuous room monitoring.

Specifications:

  • Power Source: 24V DC - use PS-2420UL
  • Consumption: 340mA (max).
  • Communication:
    • Handset: Simultaneous communication.
    • Hands-free: Auto-voice actuation.
  • Monitor: 7" TFT color touchscreen LCD.
  • Pixels: 800 x 480.
  • Picture memory:
    • Internal: 20.
    • External: 1,000 using.
    • SD / SDHC: card (not included).
  • Picture protect:
    • Internal: 5.
    • External: 100.
  • Mounting: Surface wall mount or desk mount using MCW-S/A (sold separately).
  • Temperature: 32-104°F (0-40°C).
  • Dimensions (HxWxD): 5-11/16" x 10-1/16" x 1-7/8".
  • Weight: Approx. 1.74 lbs (790g).

Features

  • 7" color touchscreen LCD.
  • Hands-free (VOX) or handset communication.
  • Camera position and zoom can be set for call-in.
  • Video out via supplied connector.
  • Picture Memory: Internal: 20 calls; SD / SDHC: 1,000 calls.
  • Door release button.
  • Optional service button.
  • Security inputs for alerting stations.
  • PTZ and brightness control.
  • Selectable call tones (8).
  • Station partitioning with security code.
  • All Call to inside stations.
  • Door monitoring.
  • Continuous room monitoring.

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: JP-4MED, JP4MED

Application: Hands-Free

Category: Access Control, Alarms & Intercom, Intercom Entry Systems, Intercom/Sound

Commercial Residential: Commercial

Communication: Voice and Video

Installation: Commercial

Series: JP Video Intercom Touchscreen System

Station Type: Hand Set

Subtype: Intercom

Type: Intercoms
