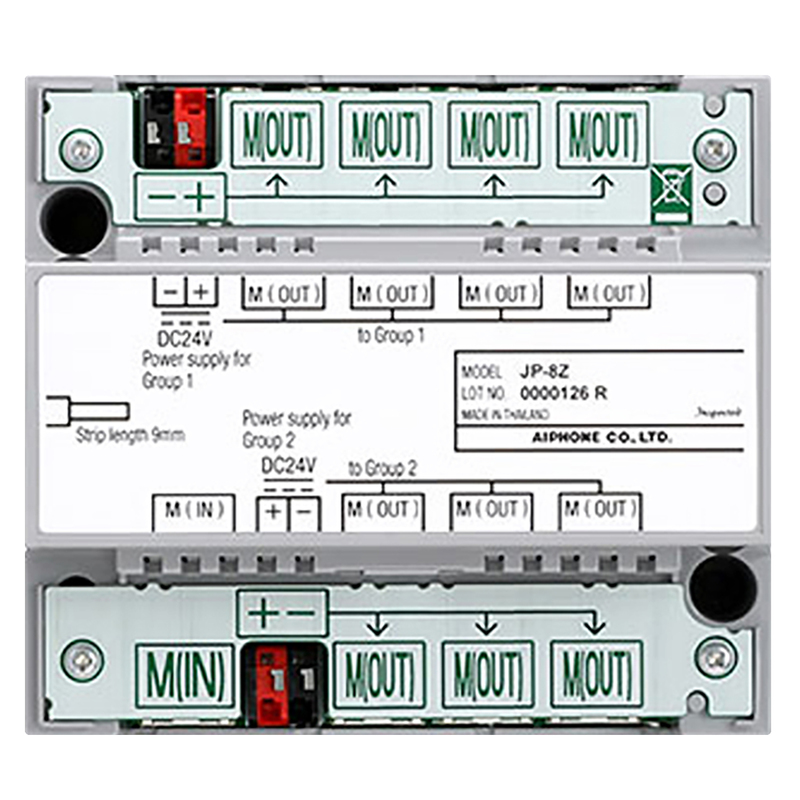

JP-8Z is a distribution adaptor for the JP Series. The adaptor is utilized when homerun wiring is desired. The JP-4MED master station and each JP-4HD sub master station will connect to this adaptor using CAT-5e/CAT-6 cable. The JP-8Z can surface mount using the mounting holes or with the W-DIN11 mounting rail. One or two PS-2420UL power supplies are used, depending on how many sub master stations are connected.
Features:
Specifications:
Features
Alternate Codes: JP-8Z, JP8Z
Category: Access Control, Alarms & Intercom, Intercom Entry Systems, Intercom/Sound
Commercial Residential: Commercial
Installation: Commercial
Operating Volt: 24 VDC
Operating Voltage: 24 VDC
Pack Qty: 1
Series: JP Video Intercom Touchscreen System
Station Size: 4-5/16"X4-13/16"X2-3/8"
Subtype: Intercom
Type: ACCESS CONTROL
Unit of Measure: Each
Wire Required: CAT5/5E/6
