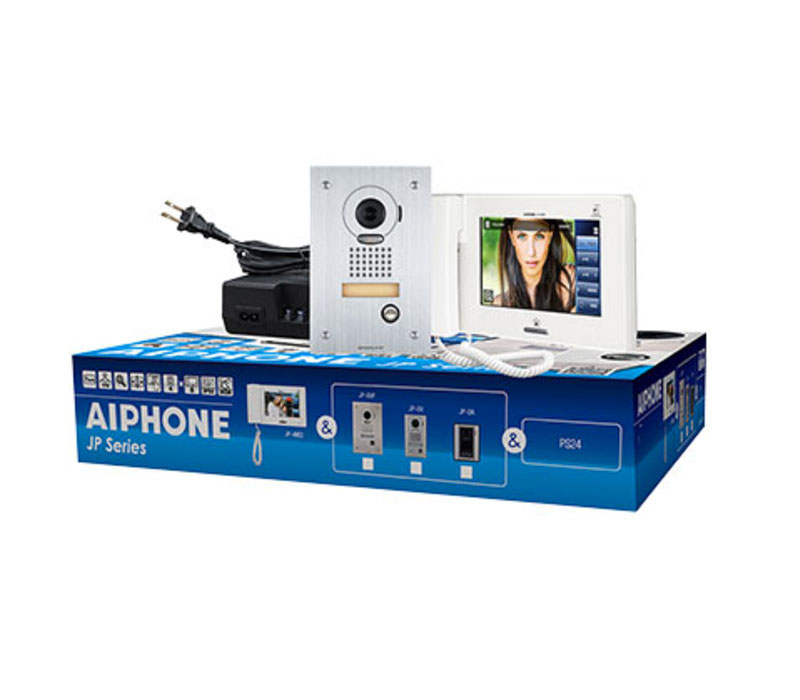

Aiphone JPS-4AEDF 7" Touchscreen Color Video Set

Aiphone JPS-4AEDF 7" Touchscreen Color Video Set offers a sophisticated communication solution for both commercial and residential applications. Featuring a vibrant 7-inch color LCD touchscreen, this video intercom system allows for intuitive navigation and seamless interaction. Users can choose between hands-free (VOX) communication or full-duplex handset communication, ensuring flexibility in how they connect. This advanced system includes picture memory capabilities that record up to 20 calls internally, preserving 6 images per call. For expanded storage, it supports SD/SDHC cards, allowing for the recording of up to 1,000 calls with 40 images per call, protecting the most critical calls from overwriting. The 1/4" color CMOS camera provides a wide view area of 100° vertically and 170° horizontally, enhancing visibility at entry points. Installation is straightforward, requiring a 24V DC power source, and supports distances up to 330 feet from the door station to the master station. The system is designed for commercial installation, making it ideal for various settings. With its robust features and user-friendly design, the Aiphone JPS-4AEDF is an excellent choice for those seeking reliability and advanced functionality in their intercom systems.

7" TOUCHSCREEN COLOR VIDEO SET

JP Series Video Intercom with 7-Inch Touchscreen, 7" Touchscreen Handset, Hands-Free 4x8 Color Video Set

Has a 7" touchscreen for system navigation.

Hands-free and handset communication is featured on all inside stations and picture memory records images onto an SD/SDHC card.

• Power Source: 24V DC – use PS‑2420UL
• Communication: Hands-free (VOX) or handset (full-duplex)
• Video: Display 7" color LCD touchscreen
• Picture Memory: Internal / Built‑In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting; SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
• Camera: Type: 1/4" color CMOS; View Area: 100° vert. x 170° horiz.
• Door Release: N/O dry contact, 24V AC/DC, 500mA – use EL‑12S (use RY‑24L for larger contact rating and use RY‑3DL for 3~4 doors)
• Wire Type: Door Station to Master Station: 2‑cond., mid cap,

solid, non‑shielded – use Aiphone #871802
Power Supply to Master Station: 2‑cond., mid cap,
solid, non‑shielded – use Aiphone #871802
Master Station to Adaptor: CAT‑5e or CAT‑6
Adaptor to Sub Master Station: CAT‑5e or CAT‑6

• Distance: Door Station to Master Station: 330'

Master Station to Distribution Adaptor: 650'
Distribution Adaptor to Sub Master Station: 165'
Power Supply to Master Station: 16'(22AWG) 33'(18AWG)
Power Supply to Distribution Adaptor: 16'(22AWG) 33'(18AWG)
