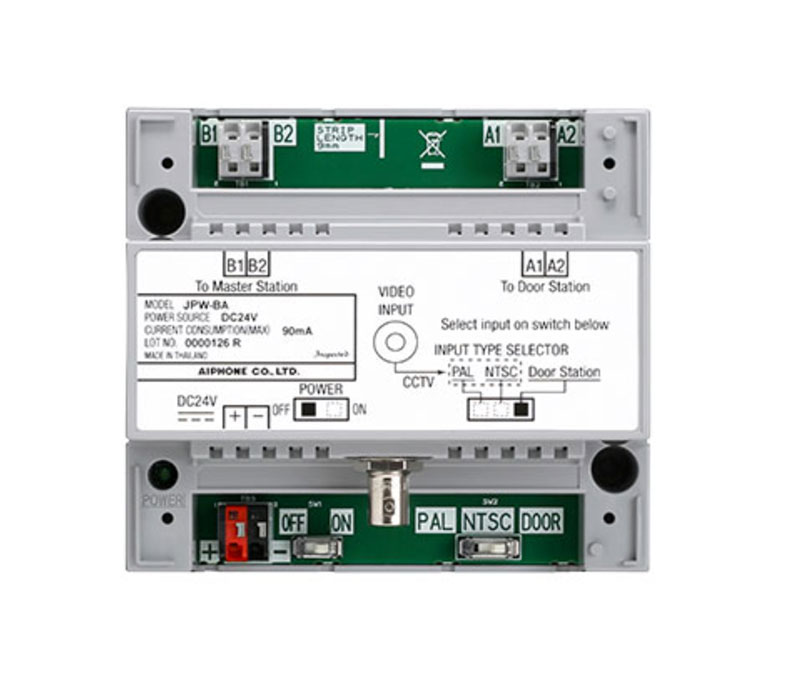

Aiphone JPW-BA Long-Distance Door Adapter

Aiphone JPW-BA Long Distance Door Adaptor enhances your security system with its long-range capabilities, allowing communication and video transmission up to 980 feet to a door. This versatile CCTV camera adaptor pairs seamlessly with audio door stations, ensuring clear, hands-free or handset communication between inside stations. Equipped with a 7" color LCD touchscreen, navigating your intercom system is straightforward and user-friendly. The device features picture memory that records calls directly onto an internal SD/SDHC card, accommodating up to 1,000 calls and 40 images per call, while protecting 100 calls from overwriting, ensuring vital footage is never lost. The integrated 1/4" color CMOS camera provides a wide viewing area of 100° vertically and 170° horizontally, enhancing your monitoring capabilities. The adaptor supports a 24V DC power source and can connect to master and sub-master stations via CAT-5e or CAT-6 cables. With a maximum distance of 330 feet from the door station to the master station and a distribution adaptor extending up to 650 feet, installation flexibility is a key benefit. Ideal for commercial applications, the Aiphone JPW-BA Long Distance Door Adaptor ensures effective communication and security in your building.

LONG DISTANCE DOOR ADAPTOR

Long Distance CCTV Adaptor, Up to 980' to Door, CCTV Camera Adaptor with Audio Door Station

Has a 7" touchscreen for system navigation.

Hands-free and handset communication is featured on all inside stations and picture memory records images onto an SD/SDHC card.

• Power Source: 24V DC – use PS‑2420UL
• Communication: Hands-free (VOX) or handset (full-duplex)
• Video: Display 7" color LCD touchscreen
• Picture Memory: Internal / Built‑In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting; SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
• Camera: Type: 1/4" color CMOS; View Area: 100° vert. x 170° horiz.
• Door Release: N/O dry contact, 24V AC/DC, 500mA – use EL‑12S (use RY‑24L for larger contact rating and use RY‑3DL for 3~4 doors)
• Wire Type: Door Station to Master Station: 2‑cond., mid cap,

solid, non‑shielded – use Aiphone #871802
Power Supply to Master Station: 2‑cond., mid cap,
solid, non‑shielded – use Aiphone #871802
Master Station to Adaptor: CAT‑5e or CAT‑6
Adaptor to Sub Master Station: CAT‑5e or CAT‑6

• Distance: Door Station to Master Station: 330'

Master Station to Distribution Adaptor: 650'
Distribution Adaptor to Sub Master Station: 165'
Power Supply to Master Station: 16'(22AWG) 33'(18AWG)
Power Supply to Distribution Adaptor: 16'(22AWG) 33'(18AWG)
