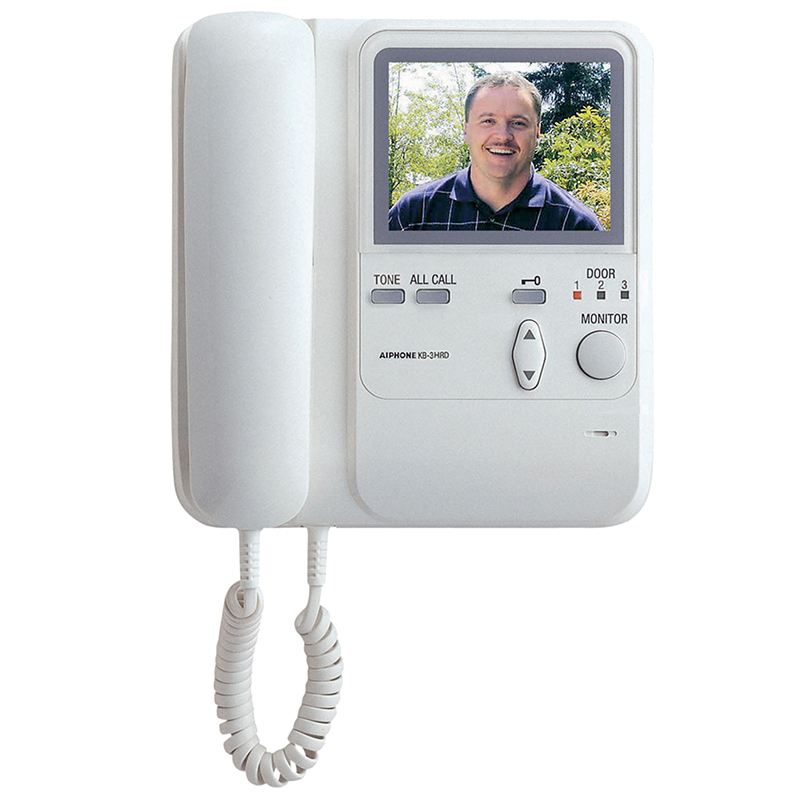

Aiphone KB-3HRD Room Substation Color Video System

Aiphone KB-3HRD ROOM SUB STATION COLOR VIDEO is a versatile video entry system designed for enhanced communication and security in commercial settings. This color sub master station can accommodate up to three video door stations and up to five video handset stations, making it an ideal choice for busy environments. Equipped with a 4" direct-view TFT color LCD monitor, the KB-3HRD allows users to see and communicate with visitors instantly. With features like hands-free reply, selective calling, and all-call options, it ensures seamless interaction. The system operates on a 24V DC power source, and it provides a chime, image, and audio notification for approximately 30 seconds, ensuring you never miss a visitor. The video monitor boasts a scanning line count of 525, offering a clear image view area, while night viewing capabilities extend visibility up to 1 foot from the camera. Its wiring requirements include solid, non-shielded cables, making installation straightforward. With a surface wall mount design, the Aiphone KB-3HRD is built to fit comfortably in various spaces. This system not only enhances security but also streamlines communication, making it a valuable addition to any commercial facility.

ROOM SUB STATION COLOR VIDEO

Color Sub Master Station For KB (Max 4 Per System)

The KB Series Color Video Sentry is a video entry system with capacity for three video door stations and up to five video handset stations

Capacity for three video door stations and up to five video handset stations.

Equipped with 4" color monitors that allow for internal communication, both selective calling and all call, with hands-free reply.

• Power Source: 24V DC - Use PS-2420UL
• Calling: Chime, image and audio approx. 30 sec., hear and see door instantly
• Communication: Pick up at any station to reply, 2-1/2 min. timed, recycle with MONITOR, monitor audio and image of door, hands-free with MONITOR, press a station selector and call by voice, the called station replies hands-free, lift handset, press All Call button to call the other stations with pre-tone and voice
• Video Monitor: 4” direct-view TFT color LCD
• Scanning Line: 525 lines
• Image View Area: Approx. 2’ horizontal, 3’8”~7’9” vertical  at 4’3” high and at 20” in front of camera
• Night Viewing: Up to 1’ from camera, with white LED projected, background beyond 1’ cannot be seen
• Door Release: Contact rating: 12V AC, 400mA Use RY-24L for larger contact rating
• Wiring: Door to master: 2-cond., mid cap, solid, non-shielded Master to subs: 2 x 2-cond., mid cap, solid, non-shielded
• Distance: Master to door: 330’(22AWG) 650’(18AWG) Master to farthest sub: 165’(22AWG) 330’(18AWG) Master to IER-2: 165’(22AWG) 330’(18AWG)
• Wire Type: Aiphone #871802
