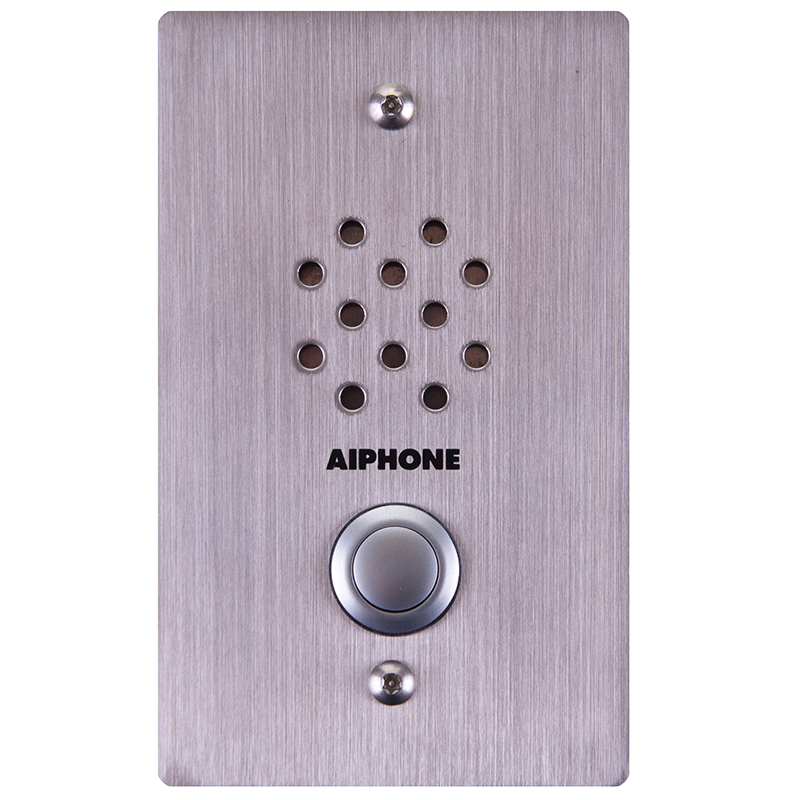

Aiphone LE-SS-1G Surface-Mounted Door Station

Aiphone LE-SS-1G Door Station Surface is a robust flush mount audio substation designed for both commercial and residential applications. Constructed from stainless steel, it offers superior weather and vandal resistance, making it an ideal choice for high-traffic areas. The red mushroom call button is easily identifiable, while the moisture and puncture-resistant speaker ensures reliable audio communication. This audio-only, selective calling open voice system allows for seamless interaction. Users can connect with 3, 5, or 10-call master stations, enabling a customizable setup to enhance security. The communication features include call-tone notifications and an LED indicator for incoming calls, along with hands-free response capabilities. The system operates at 12V DC and is compatible with the PS-1225UL power supply. Additionally, the Aiphone LE-SS-1G supports a door release function, rated for 24V DC and 1A, ensuring secure and efficient entry management. Installation is straightforward, and wiring requirements vary by system, so consult the instruction manual or technical support for assistance. With a compact size of 4-1/2"x2-3/4" and flush mounting for a sleek appearance, this door station is a reliable choice for enhancing communication and security at your premises.

DOOR STATION SURFACE

Flush Mount 1-Gang Audio Sub Station, Stainless Steel

Weather and vandal resistant, red mushroom call button, moisture and puncture resitant speaker, 3-layer steel baffle protects speaker from tampering.

Audio only, selective calling, open voice system.

Has 3, 5 and 10-call masters andyou can intermix system with any number of masters and subs to maximum security.

• Power Source: 12V DC - Use PS-1225UL
• Communication: Sub calls in with call-tone and LED, 20 sec. Depress the LED selector button, use TALK/LISTEN switch. Master calls in with tone or voice (no LED lit), reply hands-free. To call, depress a selector, and call by voice or tone Chime available with BG-10C
• Communication Output: 500mW
• Door release: RY-PA Contact rating: 24V DC, 1A Use 1 RY-PA per door being released
• Wiring: Varies by system, see instruction manual or contact technical support
