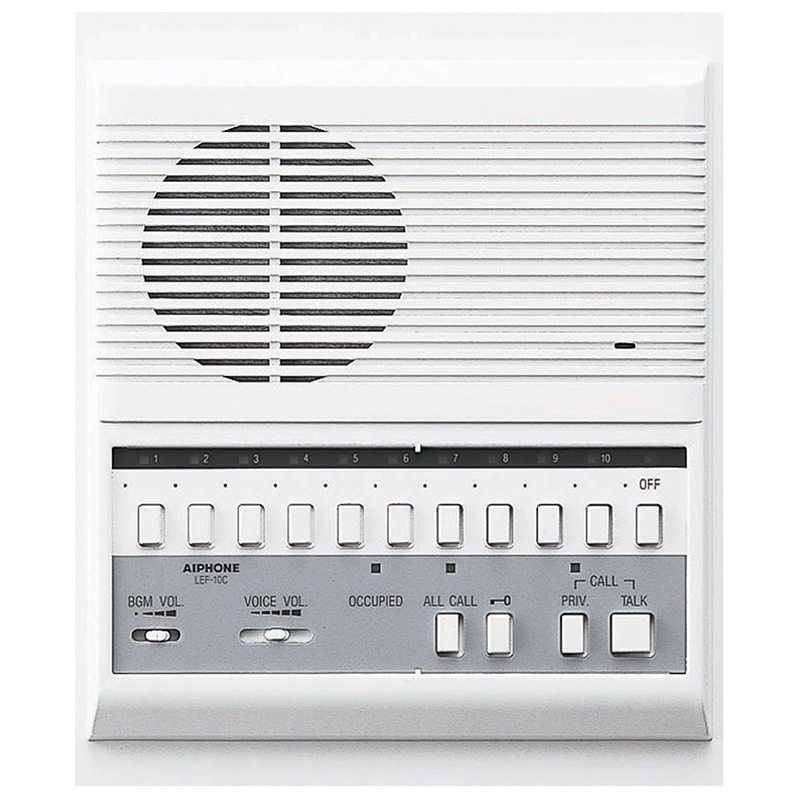

Aiphone LEF-10C MSTR 10CALL Semi-Flush Mount

Aiphone LEF-10C MSTR 10CALL SEMI FLUSH MT is a versatile audio-only intercom system designed for both commercial settings and knowledgeable homeowners. This 10-call semi-flush mount master station is part of the LEF Series, which allows for selective calling and open voice communication, accommodating up to 11 total stations in various configurations. With a power source of 12V DC, the LEF-10C is equipped for efficient operation, requiring the PS-1225UL power supply. Users can easily communicate with sub stations through a call-tone and LED indicator, allowing for a 20-second response time. The master station features hands-free communication, enabling users to reply without needing to press any buttons. The system offers a communication output of 500mW and supports door release with the RY-PA relay, rated for 24V DC at 1A. Designed for surface wall installation, the unit measures 9-3/8" x 7-7/8" x 3", making it a practical choice for a variety of spaces. The LEF-10C ensures reliable intercom functionality while allowing for a customized setup that meets your specific needs. Enjoy seamless communication with the Aiphone LEF-10C, a trusted solution for your audio intercom requirements.

MSTR 10CALL SEMI FLUSH MT

10-Call Semi-Flush Mount Master

The LEF Series is a selective calling open voice, audio only system with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations, up to its mAXimum capacity.

Audio only, selective calling, open voice system.

Has 3, 5 and 10-call masters andyou can intermix system with any number of masters and subs to maximum security.

• Power Source: 12V DC - Use PS-1225UL
• Communication: Sub calls in with call-tone and LED, 20 sec. Depress the LED selector button, use TALK/LISTEN switch. Master calls in with tone or voice (no LED lit), reply hands-free. To call, depress a selector, and call by voice or tone Chime available with BG-10C
• Communication Output: 500mW
• Door release: RY-PA Contact rating: 24V DC, 1A Use 1 RY-PA per door being released
• Wiring: Varies by system, see instruction manual or contact technical support
