Aiphone LEF-10S MSTR 10CALL Selective Door Relay All Call

Aiphone LEF-10S MSTR 10CALL SEL DR REL ALLCALL is a state-of-the-art selective calling open voice intercom system designed for commercial applications. This audio-only system accommodates up to 11 total stations, allowing for flexible configurations of masters and sub-stations to meet various communication needs. The LEF-10S features a surface-mounted master station that includes a selective door release function and an all-call button for efficient communication. With the ability to intermix 3, 5, and 10-call masters, this system ensures maximum security and versatility. Users can communicate clearly using the hands-free TALK/LISTEN switch, and sub-stations signal incoming calls with an audible tone and LED indicator. The master station replies via tone or voice without illumination of the LED. Powered by a 12V DC source, the LEF-10S delivers a robust communication output of 500mW. Its door release mechanism, rated at 24V DC and 1A, provides reliable access control. Installation is straightforward, as the system’s wiring varies based on specific configurations, with dedicated support available for assistance. Designed for commercial environments, the Aiphone LEF-10S MSTR is an ideal solution for efficient and effective communication in any facility.

MSTR 10CALL SEL DR REL ALLCALL

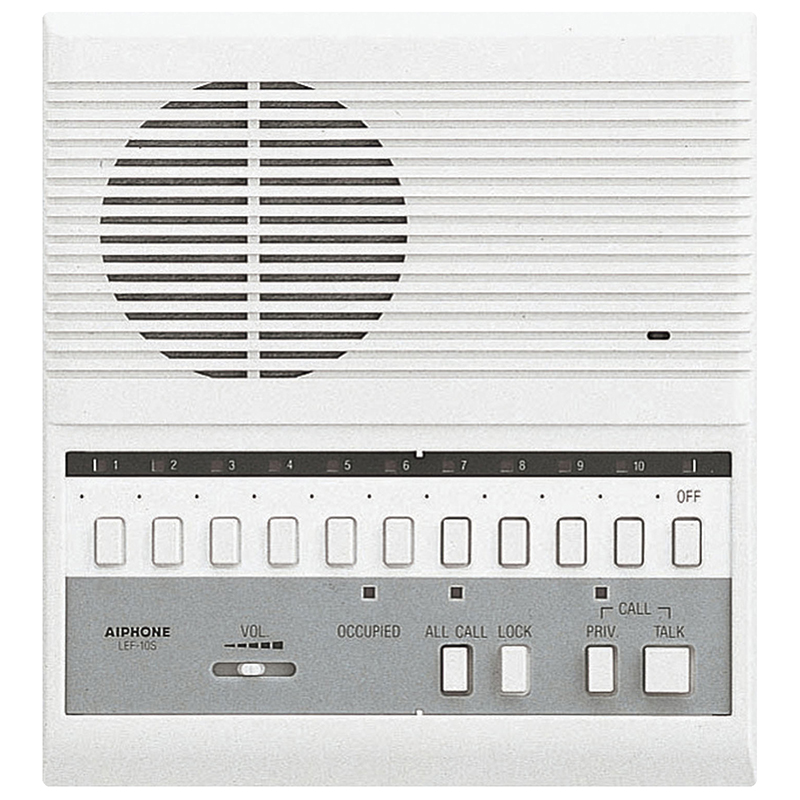

10-Call Surface Mt Master W/Sel Door Rel, All Call Btutton

The LEF Series is a selective calling open voice, audio only system with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations, up to its mAXimum capacity.

Audio only, selective calling, open voice system.

Has 3, 5 and 10-call masters andyou can intermix system with any number of masters and subs to maximum security.

• Power Source: 12V DC - Use PS-1225UL
• Communication: Sub calls in with call-tone and LED, 20 sec. Depress the LED selector button, use TALK/LISTEN switch. Master calls in with tone or voice (no LED lit), reply hands-free. To call, depress a selector, and call by voice or tone Chime available with BG-10C
• Communication Output: 500mW
• Door release: RY-PA Contact rating: 24V DC, 1A Use 1 RY-PA per door being released
• Wiring: Varies by system, see instruction manual or contact technical support
