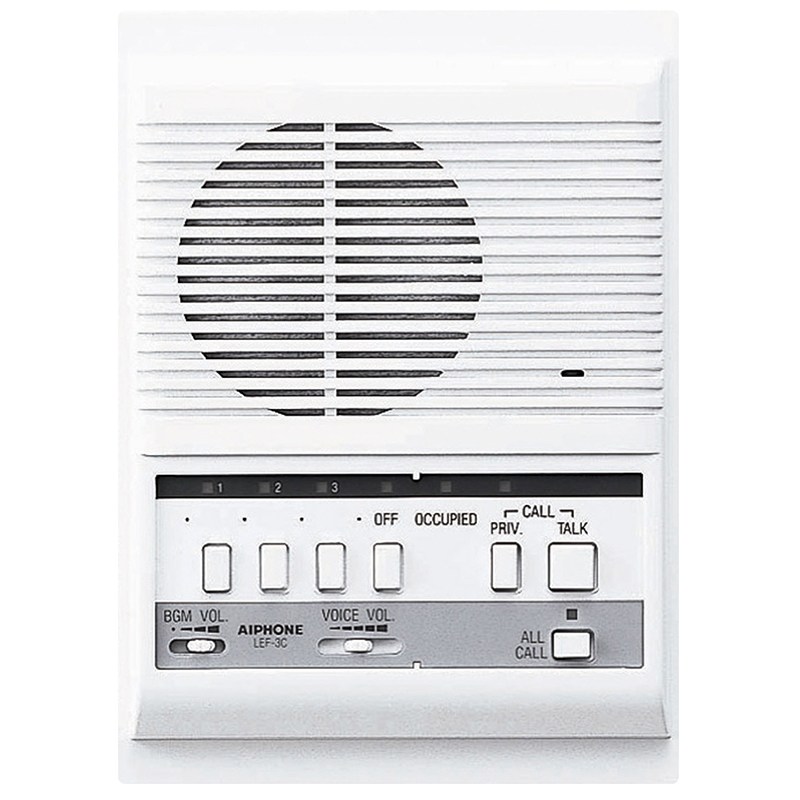

Aiphone LEF-3C Master 3 Call Semi-Flush Mount

Aiphone LEF-3C MASTER 3 CALL SEMI-FLUSH MT offers a reliable solution for your communication needs with its 3-call semi-flush mount master station. Designed as part of the LEF Series, this selective calling open voice system accommodates up to 11 total stations, providing flexibility for various configurations of master and sub stations. This audio-only system allows seamless communication through a hands-free setup. Sub stations initiate calls with a distinct call-tone and LED indicator, while the master station can respond using voice or tone without visual alerts. With a communication output of 500mW, users can engage easily and efficiently. The door release function, compatible with RY-PA contact ratings, adds an extra layer of convenience for security measures. Built for commercial environments, the LEF-3C operates on a 12V DC power source, ensuring reliable functionality. Its surface wall mounting design and dimensions of 8-3/16"x6"x2" make it a practical choice for various installation settings. Whether you need a robust intercom system for an office or another commercial space, the Aiphone LEF-3C is engineered to meet your demands effectively. Enhance your communication capabilities with this versatile, easy-to-install intercom system.

MASTER 3 CALL SEMI-FLUSH MT

3-Call Semi-Flush Mount Master Station

The LEF Series is a selective calling open voice, audio only system with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations, up to its mAXimum capacity.

Audio only, selective calling, open voice system.

Has 3, 5 and 10-call masters andyou can intermix system with any number of masters and subs to maximum security.

• Power Source: 12V DC - Use PS-1225UL
• Communication: Sub calls in with call-tone and LED, 20 sec. Depress the LED selector button, use TALK/LISTEN switch. Master calls in with tone or voice (no LED lit), reply hands-free. To call, depress a selector, and call by voice or tone Chime available with BG-10C
• Communication Output: 500mW
• Door release: RY-PA Contact rating: 24V DC, 1A Use 1 RY-PA per door being released
• Wiring: Varies by system, see instruction manual or contact technical support
