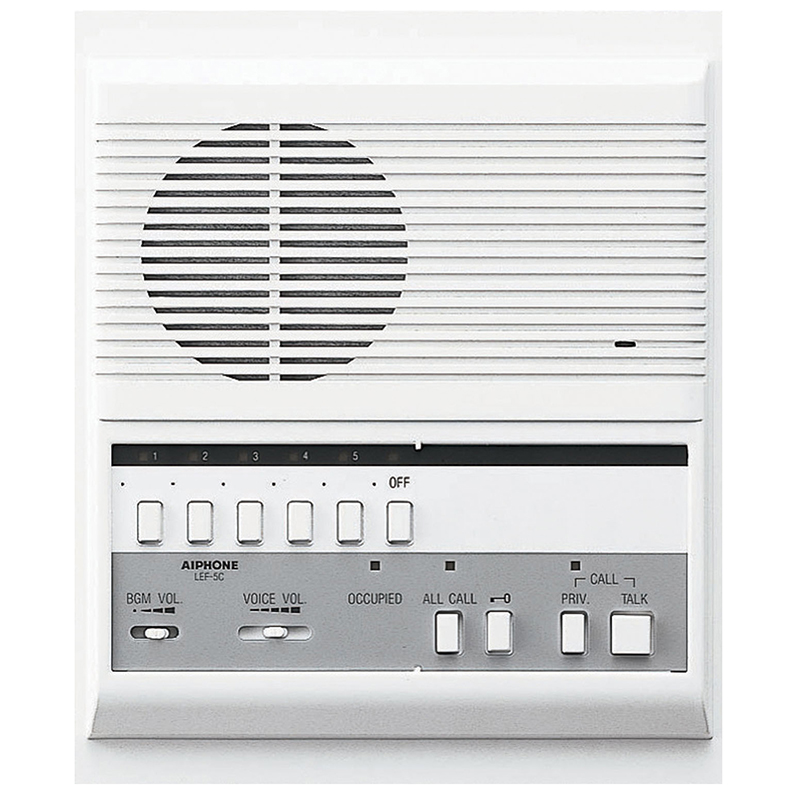

Aiphone LEF-5C MASTER 5 Call Semi-Flush Mount

Aiphone LEF-5C MASTER 5 CALL SEMI FLUSH MT is a versatile 5-call semi-flush mount master station designed for efficient audio communication in commercial settings. This unit is part of the LEF Series, which supports a selective calling, open voice, audio-only system with the capability to integrate up to 11 total stations, allowing for flexible configurations of master and sub-stations to meet diverse needs. The LEF-5C features user-friendly communication with sub-stations calling in with a call-tone and LED indicator. Users can easily manage conversations with the TALK/LISTEN switch and respond hands-free, enhancing workflow and accessibility. The system operates on a 12V DC power source and can be paired with the PS-1225UL for optimal performance. For added functionality, the door release feature supports RY-PA contacts, rated for 24V DC at 1A, ensuring secure access control. With a communication output of 500mW, the LEF-5C ensures clear audio transmission. Measuring 9-3/8"x7-7/8"x3", this surface-mounted intercom is designed for easy installation and complements various commercial environments. Equip your space with the Aiphone LEF-5C for reliable, hands-free communication that enhances security and operational efficiency.

MASTER 5 CALL SEMI FLUSH MT

5-Call Semi-Flush Mount Master Station

The LEF Series is a selective calling open voice, audio only system with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations, up to its mAXimum capacity.

Audio only, selective calling, open voice system.

Has 3, 5 and 10-call masters andyou can intermix system with any number of masters and subs to maximum security.

• Power Source: 12V DC - Use PS-1225UL
• Communication: Sub calls in with call-tone and LED, 20 sec. Depress the LED selector button, use TALK/LISTEN switch. Master calls in with tone or voice (no LED lit), reply hands-free. To call, depress a selector, and call by voice or tone Chime available with BG-10C
• Communication Output: 500mW
• Door release: RY-PA Contact rating: 24V DC, 1A Use 1 RY-PA per door being released
• Wiring: Varies by system, see instruction manual or contact technical support
