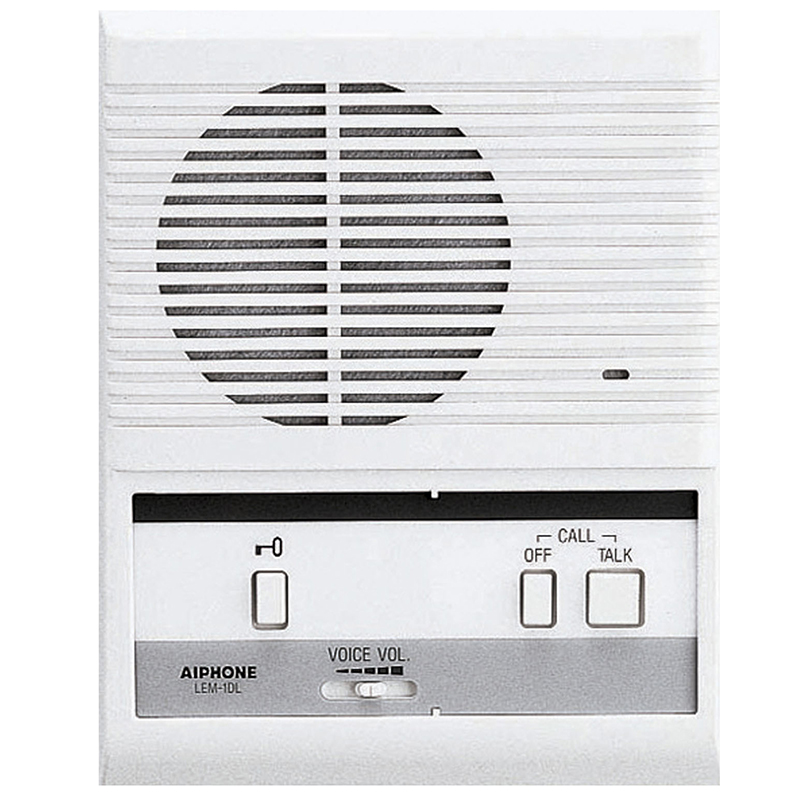

Aiphone LEM-1DL MASTER 1 Call with Door Release

Aiphone LEM-1DL MASTER 1 CALL W/DOOR RELEASE is an efficient surface mount intercom system designed for commercial environments. This model operates as a selective calling open voice system, allowing audio-only communication with a capacity for up to 11 total stations. Its hands-free functionality ensures seamless interaction, making it ideal for settings where quick communication is essential. The LEM-1DL features a push-to-talk master unit, paired with either door or room sub stations, providing flexibility in configuration to meet various needs. With a communication output of 350mW, users can expect clear audio quality. The system supports a distance of up to 650 feet with 22AWG wiring and 1,600 feet with 18AWG wiring, ensuring reliable connectivity across larger installations. Powering the system is straightforward, requiring an AC 12-16V or DC 12-24V power supply. The wiring is simple, utilizing a 2-cond overall shield for door/sub to master connections. Compact in size at 7-1/8"x5-5/8"x2-1/8", the LEM-1DL is designed for surface wall mounting, making it an unobtrusive addition to any facility. Upgrade your communication system with the Aiphone LEM-1DL, where efficiency meets reliability.

MASTER 1 CALL W/DOOR RELEASE

1-Call Surface Mount Master With Door Release

The LEF Series is a selective calling open voice, audio only system with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations, up to its mAXimum capacity.

Audio only, hands free intercom system.

LEM System is an open voice communication and has a push-to-talk master. LE Sub stations, either door or room sub station.

• Power Supply: AC 12-16V or DC 12-24V
• Communication: Sub calls in with tone, press TALK button to reply, sub called by tone or voice, hands-free as sub (with LEM-3 : LED, 20 sec., depress selector button)
• Communication Output: 350mW output
• Wiring: Door/Sub to master: 2-cond., overall shield
• Distance: Door/Sub to farthest master: 650’(22AWG) 1,600’(18AWG)
• Wire Type: Aiphone #822202 or Aiphone #821802

Resources

• BA-1 Paging Adapter Instructions
• LE-SS / LESSR Vandal and Weather Resistant Sub Station Specs
• LE-SS/A, LE-SSR - for LEF, LEM, AP, MP Systems
• LEM-1 and LEM-3 Master Selective Intercom Instructions
• SP-20N Flush Mount Ceiling Speaker Sub Station
• Video: LEM-1DLS Boxed Set Wiring
