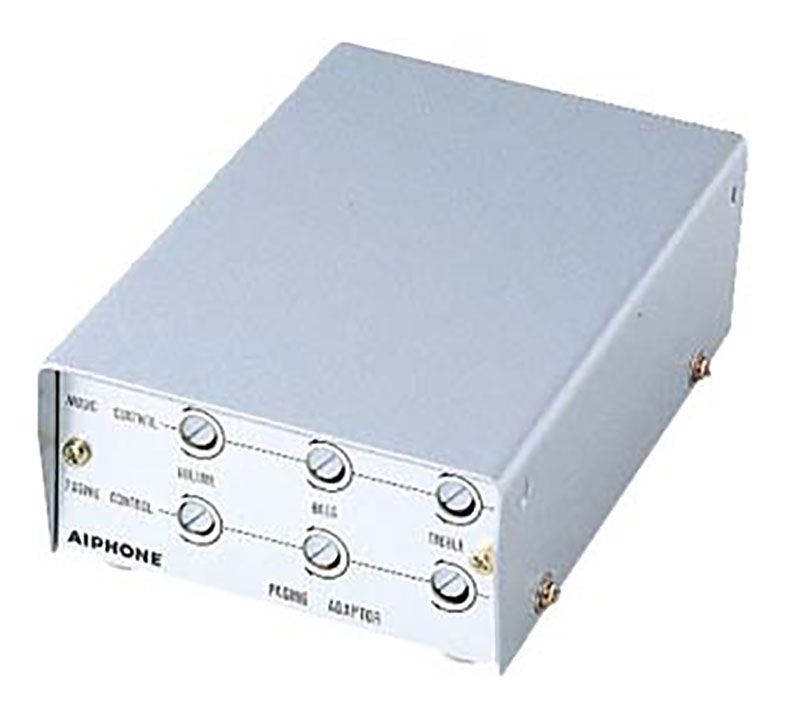

Aiphone MC-A/A Market-Com Paging Adapter

Aiphone MC-A/A Market-Com Paging Adaptor enhances communication within marketplace environments, offering a reliable solution for paging and conversation needs. Designed specifically for the MC-60/4A Series, this handset-style system accommodates up to 60 stations, providing selective communication through four talk channels, each equipped with in-use LEDs for clear operational visibility. Powered by a 24V DC source, this adaptor requires the PS-2420UL power supply and ensures seamless communication by allowing users to easily pick up the handset, select a channel, and initiate paging with a simple press of the PAGE button. The called party can respond by pressing the illuminated channel button, facilitating efficient interactions. The MC-A/A is built for flexibility in wiring, utilizing a non-twisted, low capacitance configuration with a maximum distance of 1,700 feet when using 22AWG wire or up to 4,000 feet with 18AWG wire. For cumulative wiring distances, it supports up to 5,000 feet with 22AWG. This commercial-grade intercom system is perfect for various applications, ensuring effective communication in bustling environments. With a compact station size of 2"x3-9/16"x5-5/8", the Aiphone MC-A/A Paging Adaptor is a valuable addition to any market setting.

MARKET-COM PAGING ADAPTOR

Paging Adaptor For Market-Com

The MC-60/4A Series is a handset style paging/communication system for use in marketplace applications.

A handset style paging/communication system for use in marketplace applications.

Maximum 60-station paging and communication system with selective 4 talk channels with in-use LED’s.

• Power Source: 24V DC - Use PS-2420UL
• Communication: Pick-up and depress channel selector 1~4 and page with PAGE button Called party picks up and presses lit LED channel button
• Wiring: 7 wires in loop, non-twisted, low capacitance (PE insulation)
• Distance: MC-A/A to farthest MC-60/4A or MC-60/4B* on block: 1,700’(22AWG) 4,000’(18AWG) *Total cumulative wiring distance between MC-60/4A or Total cumulative wiring distance between MC-60/4A or MC-60/4B: 5,000’(22AWG)
• Wire Type: Aiphone #852207
