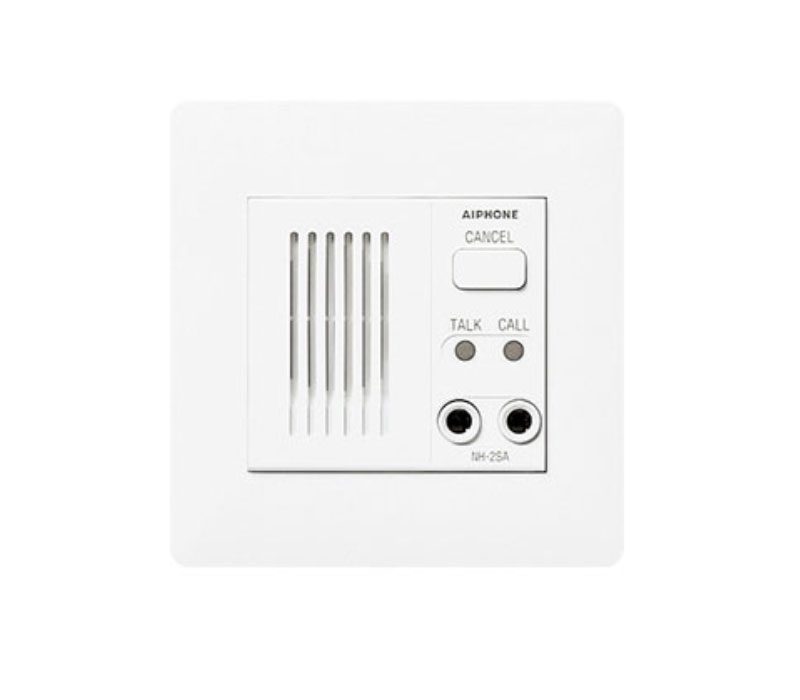

Aiphone NH-2SA/A Dual Call Patient Station

Aiphone NH-2SA/A Dual Call Patient Station is an integral component of the NHX Series Nurse Call Intercom system, designed to enhance communication and alerting in healthcare environments. UL 1069 listed, this patient station is ideal for nursing homes, elder-care facilities, clinics, sub-acute wards, and hospitals, ensuring quick responses to patient needs. The NH-2SA/A features multiple calling options, including routine calls, urgent bathroom calls, and cord-out trouble calls, with the capability to display up to five calls on the NHX-50M. Communication is facilitated through a single and private talk channel, utilizing either a press-to-talk feature or a handset voice-actuation system. Call-in priority is meticulously structured, with urgent situations receiving top attention. Additionally, the station provides essential warning tones for line-off troubles and off-hook notifications, ensuring staff are alerted to critical situations. Its wiring capabilities allow subs to communicate effectively up to 165 feet, while duty stations maintain a strong connection to the central control unit (CCU). Installation is straightforward with a 10-pin plug-in connector and preset volume controls, making setup efficient for commercial applications. With its robust features, the Aiphone NH-2SA/A is a reliable solution for enhancing patient care and communication in any healthcare setting.

DUAL CALL PATIENT STATION

NHX Series Nurse Call Intercom, Double Call Patient Station for NHX System

A UL 1069 listed Nurse Call Intercom system.

Provides staff alerts and communications for a variety of health care settings such as nursing homes, elder-care facilities, clinics, sub-acute wards, and hosptials.

• Power Source: Use PS-2420UL x 2 (NHX-80X); Powered by CCU (NHX-80X)
• Calling: Routine call, urgent bathroom call and cord-out trouble call (up to 5 calls can be displayed on the NHX-50M)
• Communication: Single and private talk channel, press-to-talk or handset voice-actuation
• Call-in Priority:
  • 1) Cord-out trouble call
  • 2) urgent bathroom call and NHR-3TS common area bathroom or staff call
  • 3) routine call, sub station call-ins on standby connected according to urgency level and time of call
• Warning Tones:
  • 1) Line-off trouble at bedside or NHR-3TS and duty station (to stop tone on duty station, plug in 2-pin jumper to CN104 in CCU)
  • 2) 90 sec. elapse timer: call tone goes up to HIGH level
  • 3) 90 sec. off-hook timer: steady tone will notify that handset is off-hook
• Distance: Subs to CCU: 165’(22AWG) - Duty station to CCU: 65’(22AWG) - CCU to master: 65’(22AWG)
• Wiring Type: Sub/Duty station to CCU: Aiphone #862208 - CCU to master: Aiphone #862210
• Wiring: 10-pin plug-in connector (to NHX-80X), provided with preset volume controls, can verify connection of all sub stations
