Aiphone NHR-3TS Common Area Call Station

Aiphone NHR-3TS COMMON AREA CALL STATION enhances communication and alert systems in healthcare environments. This dual corridor light substation is designed to facilitate urgent calls without requiring a bedside station, ensuring immediate assistance when needed. Constructed with a durable stainless steel faceplate, it blends seamlessly into any clinical setting. The NHR-3TS is UL 1069 listed, making it a reliable choice for nursing homes, elder-care facilities, clinics, sub-acute wards, and hospitals. Its functionalities include routine calls, urgent bathroom calls, and cord-out trouble calls, with the ability to display up to five calls on the NHX-50M. Communication options feature both press-to-talk and handset voice activation, providing flexibility for staff interactions. Prioritization of calls is structured to address emergencies effectively, with a dedicated system alerting for cord-out trouble calls first, followed by urgent requests. Additionally, the station includes warning tones for line-off troubles and off-hook notifications, ensuring that staff remain informed at all times. Wiring is straightforward, using Aiphone’s specific connectors and allowing for substantial distances between components. The NHR-3TS is not just a call station; it’s a critical component of an efficient nurse call intercom system, improving patient care and staff responsiveness.

COMMON AREA CALL STATION

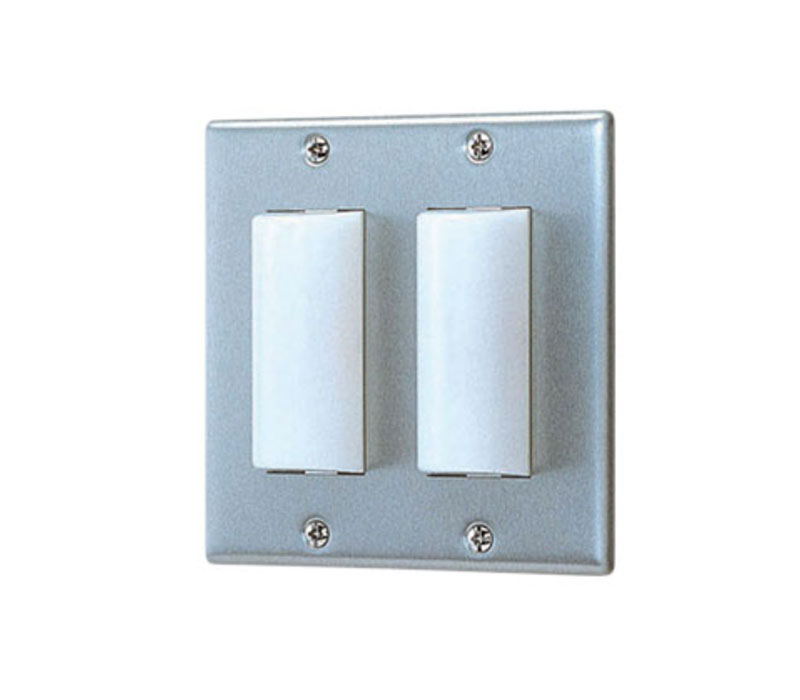

Dual Corridor Light Sub Station, Allows Urgent Call Pull Cord to be Used Without the Need for a Bedside Station, Indicates where an Urgent Call has been made, Flush 2-Gang Mount, Stainless Steel Faceplate

A UL 1069 listed Nurse Call Intercom system.

Provides staff alerts and communications for a variety of health care settings such as nursing homes, elder-care facilities, clinics, sub-acute wards, and hosptials.

• Power Source: Use PS-2420UL x 2 (NHX-80X); Powered by CCU (NHX-80X)
• Calling: Routine call, urgent bathroom call and cord-out trouble call (up to 5 calls can be displayed on the NHX-50M)
• Communication: Single and private talk channel, press-to-talk or handset voice-actuation
• Call-in Priority:
  • 1) Cord-out trouble call
  • 2) urgent bathroom call and NHR-3TS common area bathroom or staff call
  • 3) routine call, sub station call-ins on standby connected according to urgency level and time of call
• Warning Tones:
  • 1) Line-off trouble at bedside or NHR-3TS and duty station (to stop tone on duty station, plug in 2-pin jumper to CN104 in CCU)
  • 2) 90 sec. elapse timer: call tone goes up to HIGH level
  • 3) 90 sec. off-hook timer: steady tone will notify that handset is off-hook
• Distance: Subs to CCU: 165’(22AWG) - Duty station to CCU: 65’(22AWG) - CCU to master: 65’(22AWG)
• Wiring Type: Sub/Duty station to CCU: Aiphone #862208 - CCU to master: Aiphone #862210
• Wiring: 10-pin plug-in connector (to NHX-80X), provided with preset volume controls, can verify connection of all sub stations
