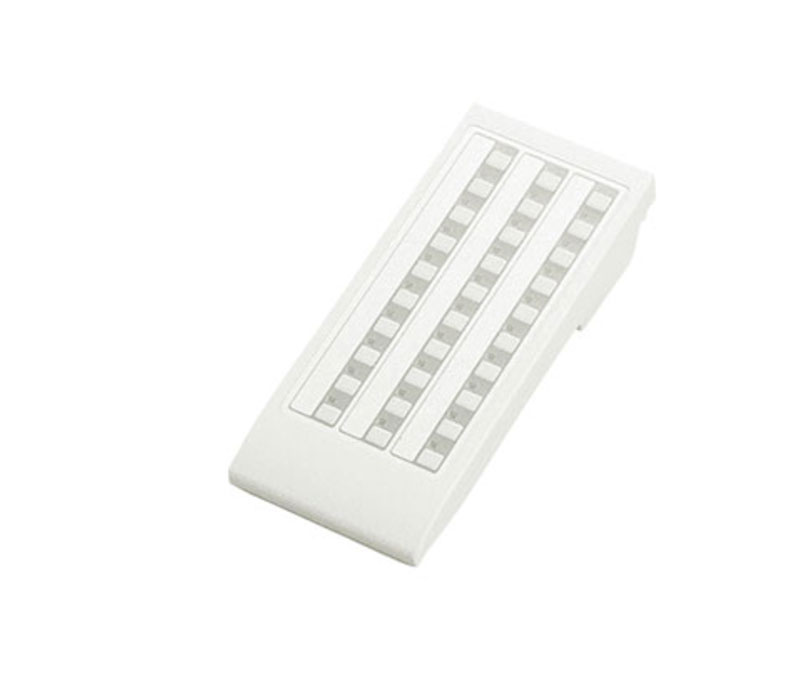

Aiphone NHX-30G 30-CALL ADD-ON SELECTOR

Aiphone NHX-30G 30-Call Add-On Selector expands the NHX Series Nurse Call Intercom system, increasing capacity to a maximum of 80 stations. This UL 1069 listed system is specifically designed to enhance communication and alerting in various healthcare environments, including nursing homes, elder-care facilities, clinics, sub-acute wards, and hospitals. The NHX-30G facilitates efficient staff alerts through multiple call types, including routine, urgent bathroom, and cord-out trouble calls. It features a single and private talk channel with options for press-to-talk or voice-actuated communication, ensuring clarity and immediate response when needed. Call priorities are well-defined, with urgent calls taking precedence to streamline assistance. This model supports a distance of 165 feet from subs to the central control unit (CCU) and 65 feet between duty stations and the CCU, making it adaptable for various layouts. The wiring requirements utilize Aiphone’s specific configurations, ensuring a robust connection. Additionally, the 10-pin plug-in connector simplifies installation and includes preset volume controls for user convenience. Ideal for commercial settings, the Aiphone NHX-30G is a vital component for any healthcare facility looking to improve patient care and staff efficiency through reliable communication.

30-CALL ADD-ON SELECTOR

NHX Series Nurse Call Intercom, 30 Station Add on Selector Expands the NHX System, to its Maximum Capacity of 80 Stations

A UL 1069 listed Nurse Call Intercom system.

Provides staff alerts and communications for a variety of health care settings such as nursing homes, elder-care facilities, clinics, sub-acute wards, and hosptials.

• Power Source: Use PS-2420UL x 2 (NHX-80X); Powered by CCU (NHX-80X)
• Calling: Routine call, urgent bathroom call and cord-out trouble call (up to 5 calls can be displayed on the NHX-50M)
• Communication: Single and private talk channel, press-to-talk or handset voice-actuation
• Call-in Priority:
  • 1) Cord-out trouble call
  • 2) urgent bathroom call and NHR-3TS common area bathroom or staff call
  • 3) routine call, sub station call-ins on standby connected according to urgency level and time of call
• Warning Tones:
  • 1) Line-off trouble at bedside or NHR-3TS and duty station (to stop tone on duty station, plug in 2-pin jumper to CN104 in CCU)
  • 2) 90 sec. elapse timer: call tone goes up to HIGH level
  • 3) 90 sec. off-hook timer: steady tone will notify that handset is off-hook
• Distance: Subs to CCU: 165’(22AWG) - Duty station to CCU: 65’(22AWG) - CCU to master: 65’(22AWG)
• Wiring Type: Sub/Duty station to CCU: Aiphone #862208 - CCU to master: Aiphone #862210
• Wiring: 10-pin plug-in connector (to NHX-80X), provided with preset volume controls, can verify connection of all sub stations
