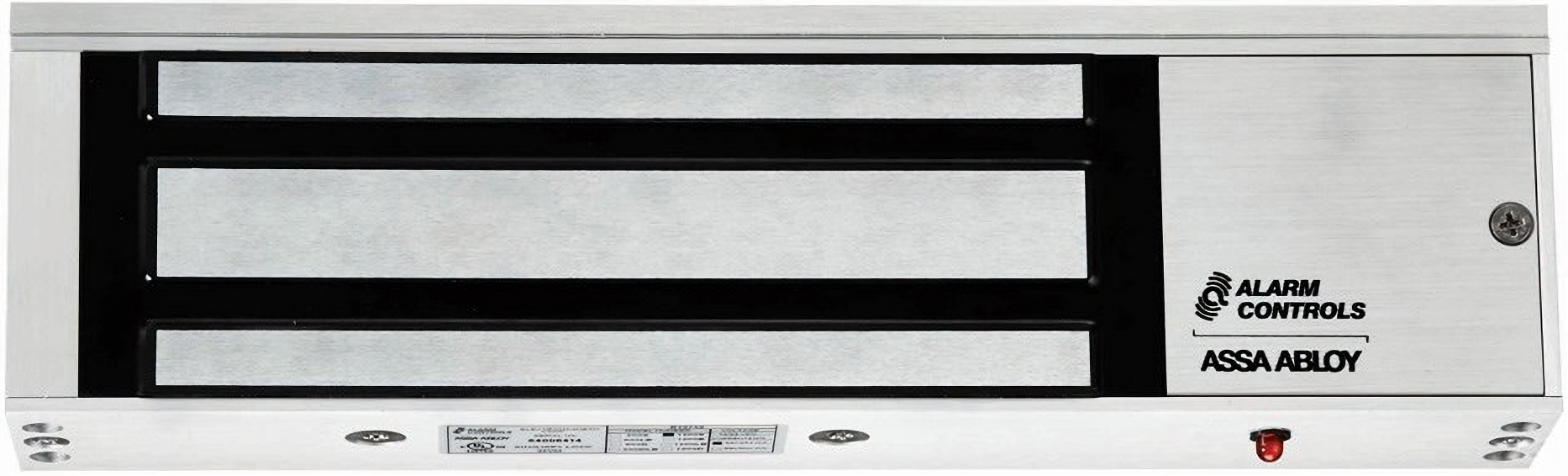

Alarm Controls 1200LB 28 1200lbs Magnetic Lock, 12-24VDC, Bond Door Status Sensors, LED Indicator

Alarm Controls Corporation 1200LB Single Magnetic Lock offers a formidable 1200 lbs of holding force, making it an ideal choice for high-traffic areas requiring secure access control. Designed for both wood and metal door applications, this lock operates on a versatile 12-24VDC input voltage, ensuring compatibility with various access control systems. Its E-Z mount system allows for hassle-free installation without special tools, making it accessible for both professionals and knowledgeable homeowners. Equipped with an instant release feature and no hysteresis, this magnetic lock ensures immediate disengagement when needed. The built-in bond sensor and door status sensor enhance operational efficiency, while the LED status indicator provides real-time feedback on the lock's condition. The lock also features corrosion-resistant plating on non-aluminum parts, ensuring durability in demanding environments. This product is UL and ULC listed, adhering to rigorous safety standards, including UL 294 for access control systems. With a maximum operating temperature of 131°F and a minimum of 14°F, it operates effectively across a wide temperature range. Backed by a limited lifetime warranty, the Alarm Controls Corporation 1200LB Magnetic Lock combines reliability, strength, and ease of use, making it a top choice for enhanced security solutions.

1200lbs, Single Magnetic Lock, 12-24VDC, Bond Sensor, Door Status Sensor, LED Status Indicator, SPDT 3 Amp, UL, ULC, 628/US28 Satin Aluminum

Bracket mounted, single magnetic lock with 1200 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications. Available with LED, bond sensor and door status signaling options.

Features:

• Instant release, no hysteresis
• Self drilling TEC screws
• Built-in arc suppression
• E-Z mount system, no special tools required
• Non-aluminum parts are plated to resist corrosion
• Can be used with any access control system
• Application Door Type : Wood|Metal
• Limited lifetime warranty

Specifications:

• Strength & Durability: Holding Force (lbs) : 1200
• Electrical:
• Input Operating Voltage : 12 or 24 VDC, field selectable
• Current 12v DC : 505
• Current 24v DC : 260
• Switch : 1 SPDT - Single Pole Double Throw
• Contact Rating : 1200LB bond sensor has SPDT 3A relay contacts
• Environmental:
• Maximum Operating Temperature (°F) : 131
• Minimum Operating Temperature (°F) : 14
• Certifications:
• CAN/ULC-S104 Listed
• CE Certified
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• UL 294 - Standard for Access Control System Units
