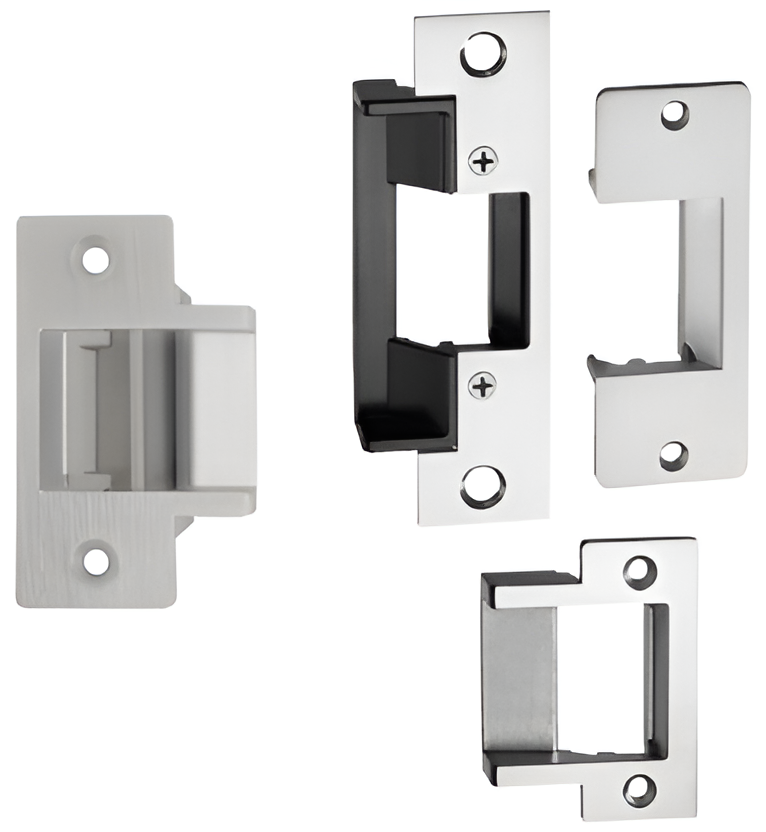

Alarm Controls AES-300-24V-KIT Dual Voltage Electric Strike, Fail Secure, ANSI Faceplates, Grade 2, UL

Alarm Controls Corporation AES-300-24V-KIT Electric Strike delivers innovative, reliable security in a compact design. This dual voltage electric strike operates on 24VAC/VDC and is engineered for fail secure applications, making it an excellent choice for both commercial and residential access control systems. With a depth of 15/16 inches and the ability to accommodate latch throws up to 5/8 inches, it is perfect for cylindrical locksets without deadbolts. The AES-300 features an impressive static strength of 1000 lbs and dynamic strength of 50 ft-lbs, ensuring robust performance. Factory-tested to endure 500,000 cycles, this electric strike is built for longevity and dependability. Its non-handed design simplifies installation, while spacers and keeper shims provide up to 1/4 inch of horizontal adjustability, making it ideal for retrofit projects where space may be limited. Certified to UL 1034 standards for burglary-resistant electric locking mechanisms, the AES-300 is compatible with various frame types, including aluminum, metal, and wood. Choose the AES-300-24V-KIT for a secure, efficient, and versatile access solution that meets the demands of any environment.

Electric Strike, Dual Voltage, 24VAC/VDC, FSE Fail Secure, ANSI Metal and Wood Faceplates, 15/16in Depth, up to 5/8in Throw, Grade 2, UL

The flexible, compact AES-300 electric strike offers value and innovation in one compact product. The small body design eliminates the need to cut out the dust box during installation, making this a great option for retrofit applications where size restraints may occur. Offering up to 1/4" horizontal adjustability, the AES-300 is ideal for cylindrical locksets with a latch up to 5/8" throw without a deadbolt.

Features:

• Static strength: 1000 lbs.
• Dynamic strength: 50 ft.-lbs
• Factory tested to 500,000 cycles
• Strike body depth 1-3/16"
• For use with 5/8" cylindrical locksets
• Non-handed for easy installation
• Spacers and keeper shims for horizontal adjustment
• Small body design eliminates the need to cut out the dust box
• Available in fail secure only
• 12 or 24 VAC or VDC

Specifications:

• Strength & Durability:
• Holding Force : 1000
• Dynamic Strength : 50
• Electrical:
• Current 12v DC : 200
• Current 24v DC : 100
• Current 12v AC : 200
• Current 24v AC : 100
• Input Operating Voltage : Available in either 12 or 24 VAC or VDC
• Certifications: UL 1034 - Standard for Burglary-Resistant Electric Locking Mechanisms
