Images may not represent actual product and finish

Alarm Controls DE-1 Electrical Accessories

Your Price: $249.75

Retail Price:$370.000

Your Savings:$120.25(32%)

Delayed Egress Station

Part Number : ALC_DE1

Availability: 36 In Stock

Quantity

Description

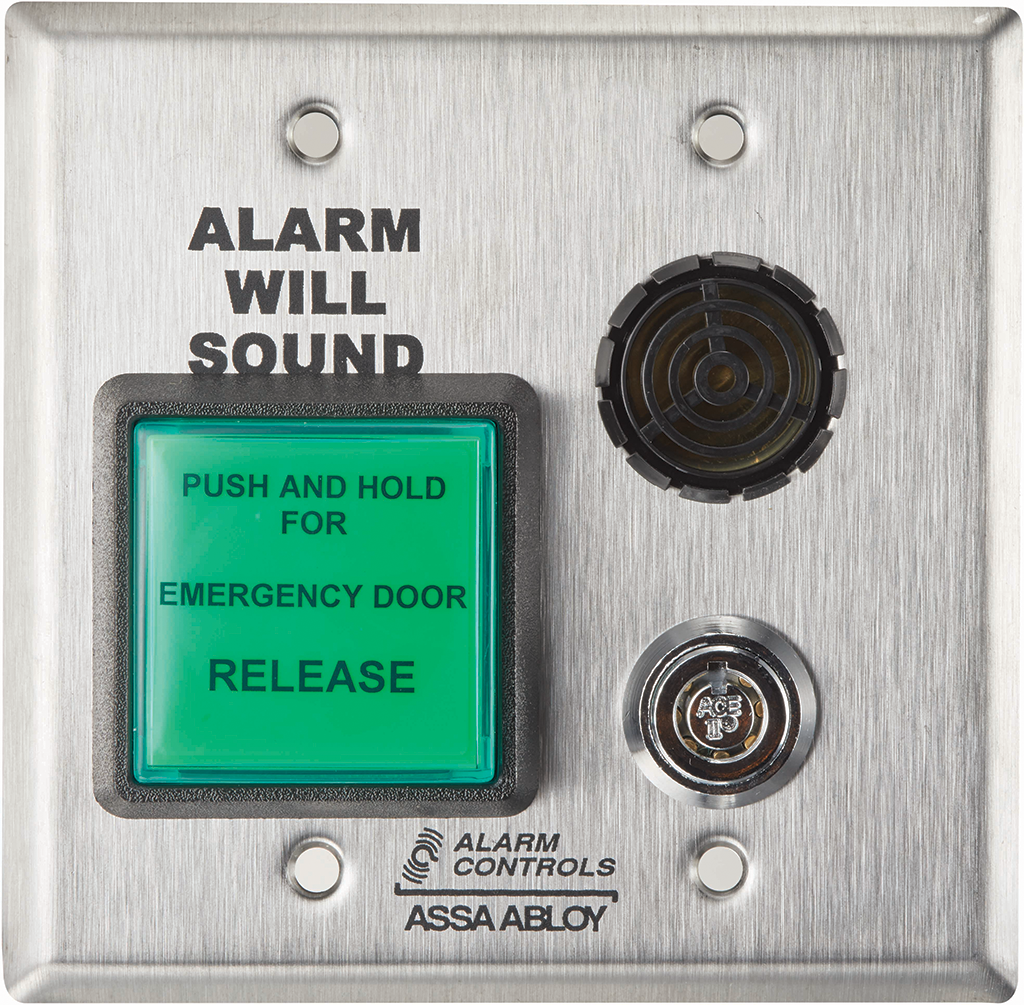

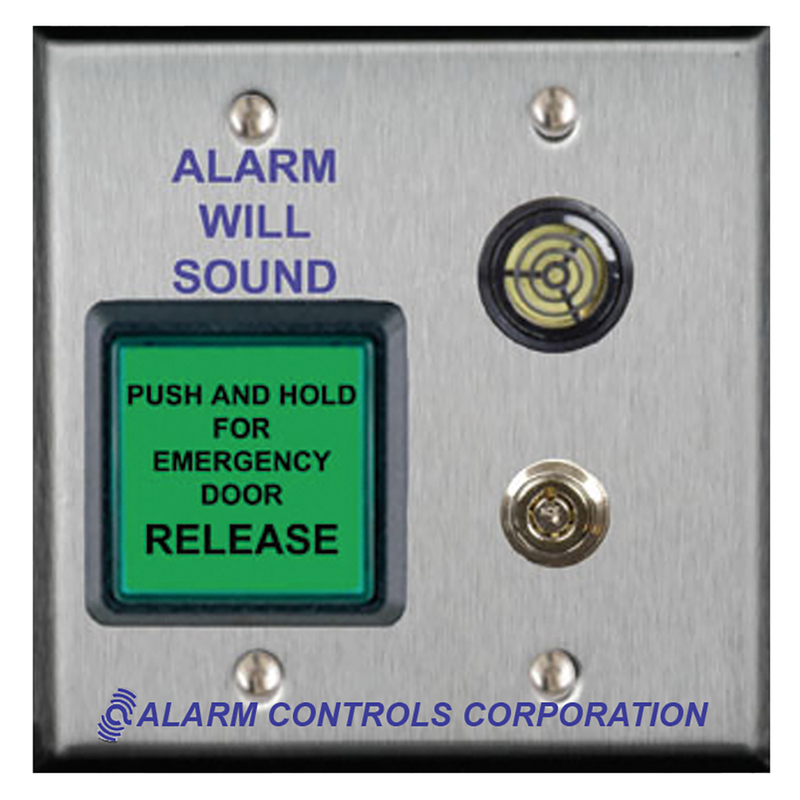

Alarm Controls DE-1 Electrical Accessories

Two Sec. Nuisance Delay, S.P.D.T. Timed Contacts, Keyswitch Reset & Re-Lock, 12 or 24 VDC, Countdown Buzzer & Flashing Lamp During Timing Mode, Mounted on Double Gang Stainless Steel Plate.

Input Voltage: 12 to 24 VDC
Current Draw: 200 mA maximum
Delay Time: 2 to 30 seconds adjustable
Nuisance time delay (DE-1 only): 2 seconds
Outputs: SPDT Alarm Relay and Lock Relay
Contact Rating: 5 A @ 35 Volts
Buzzer Sound Level: 85 dB @ 3 feet
Buzzer Frequency: 2900 Hz
Button Illumination: LED

Attributes

Alternate Codes: DE-1, DE1

Category: Access Control, Hardwired, Pushplates/Buttons & Switches

Commercial Residential: Commercial

Door Application: Pushplates/Buttons & Switches

Installation: Commercial

Mounting: Double Gang, Surface Mount

Pack Qty: 1

Series: Alarm Controls Access Control Accessories

Size: 4-1/2" x 4-1/2"

Style: Square Push Button

Subtype: Electrical Accessories

Switch Mode: Delay Egress

Type: SPDT

Unit of Measure: EACH

Voltage/ Amp Rating: 12 - 24V DC
