Alarm Controls KP-300 Alarm Controls Corporation

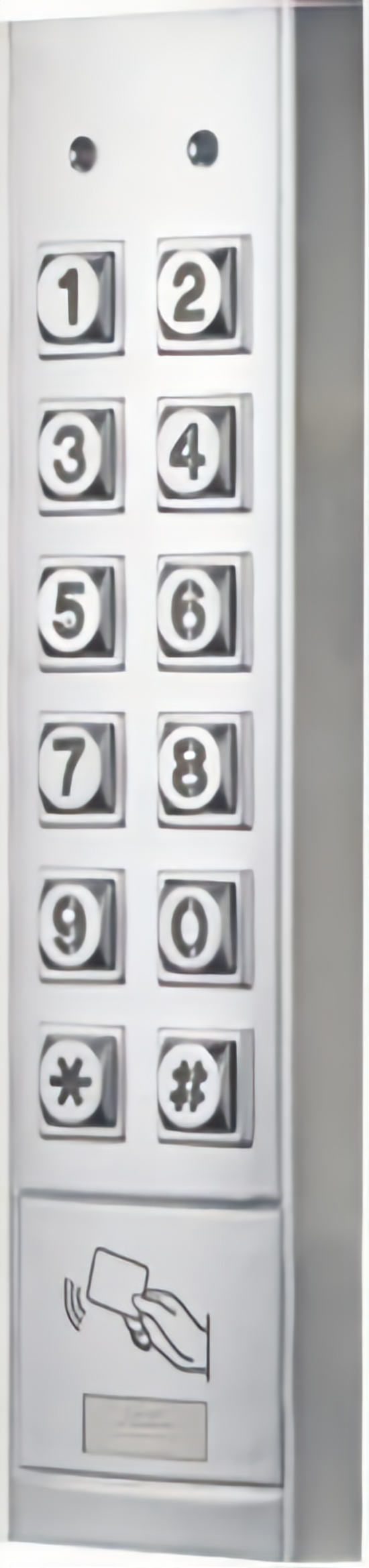

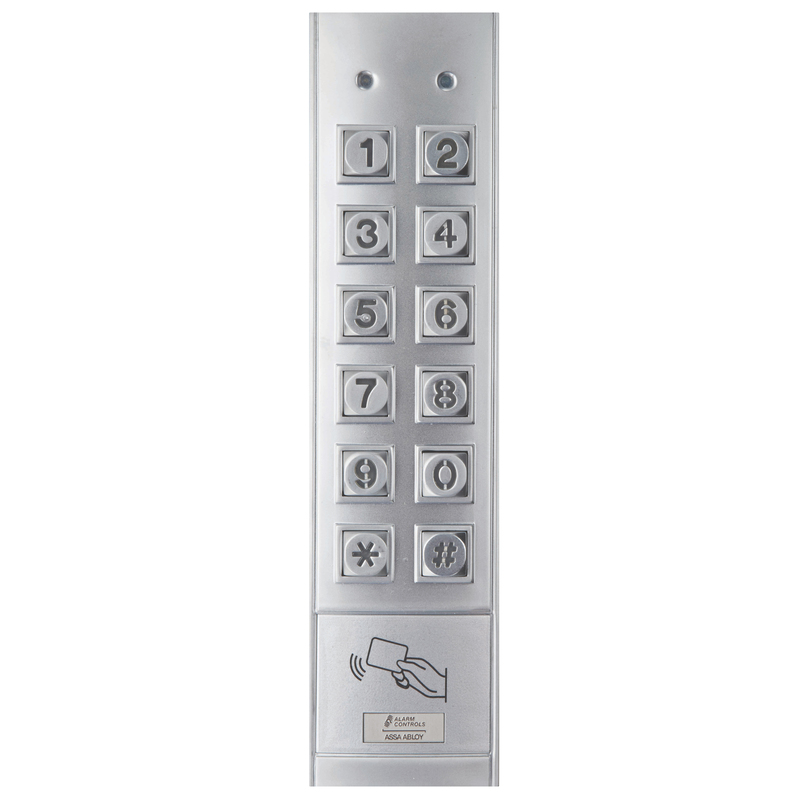

The KP-300 is a weather-proof, vandal resistant, mullion mount keypad. It combines the functions of a digital keypad and proximity EM card reader in one unit. The KP-300 has been designed to work independently as a stand alone keypad. The keypad has multiple functions that can be programmed to meet a variety of applications.

Features:

• Narrow stile mullion mount with die cast zinc alloy housing
• 10-digit operation (10 digits plus * and # keys)
• Operates with card only, user code and card, or user code only
• Multiple outputs allow control of up to two devices (1000 users on output 1, 100 on output 2)
• All users can be programmed for card and/or codes at the device
• 50 Visitor cards and/or codes can be programmed for one time use or with time limit at the device
• Programmable passage and false-code lockout mode capabilities
• Built-in tamper switch
• Green and yellow LEDs for status and programming feedback
• Fail safe or fail secure capable
• Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
• For indoor or outdoor applications

Specifications:

• Electrical:
• Input Operating Current : 60mA at rest; 95 mA active
• Input Operating Voltage : 12 VDC nominal, 11-15 VDC
• Contact Action : N/O and N/C dry contacts
• Outputs : Output Relay 1: SPDT rated 2A at 24 VDC max Output Relay 2: SPDT rated 1A at 24 VDC max
• Environmental:
• Maximum Operating Temperature : 158
• Minimum Operating Temperature : -4
• Operating Humidity : 5-95% relative humidity non-condensing

• Fully programmable from keypad
• Operated on 12VDC nominal, 11-15 VDC, operating current 95mA
• Mullion surface mount die cast zinc alloy housing, weather-proof to IP65 standard
• Two programmable S.P.D.T. relay outputs
• Output 1: capacity of 1000 user codes and/or codes
• Output 2: capacity of 100 user codes and/or codes
• Die cast metal keys with audible and visible key press
• 50 visitor codes, programmable for one time use or with time limit
• Built-in tamper switch, built-in buzzer
• LEDs indicated keypad status
• Operating temperature: -20 C to +70 C
• Supplied with 2 EM cards: Model EM-10 is a package of 10 additional cards

Features

• Narrow stile mullion mount with die cast zinc alloy housing
• 10-digit operation (10 digits plus * and # keys)
• Operates with card only, user code and card, or user code only
• Multiple outputs allow control of up to two devices (1000 users on output 1, 100 on output 2)
• All users can be programmed for card and/or codes at the device
• 50 Visitor cards and/or codes can be programmed for one time use or with time limit at the device
• Programmable passage and false-code lockout mode capabilities
• Built-in tamper switch
• Green and yellow LEDs for status and programming feedback
• Fail safe or fail secure capable
• Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
• For indoor or outdoor applications
