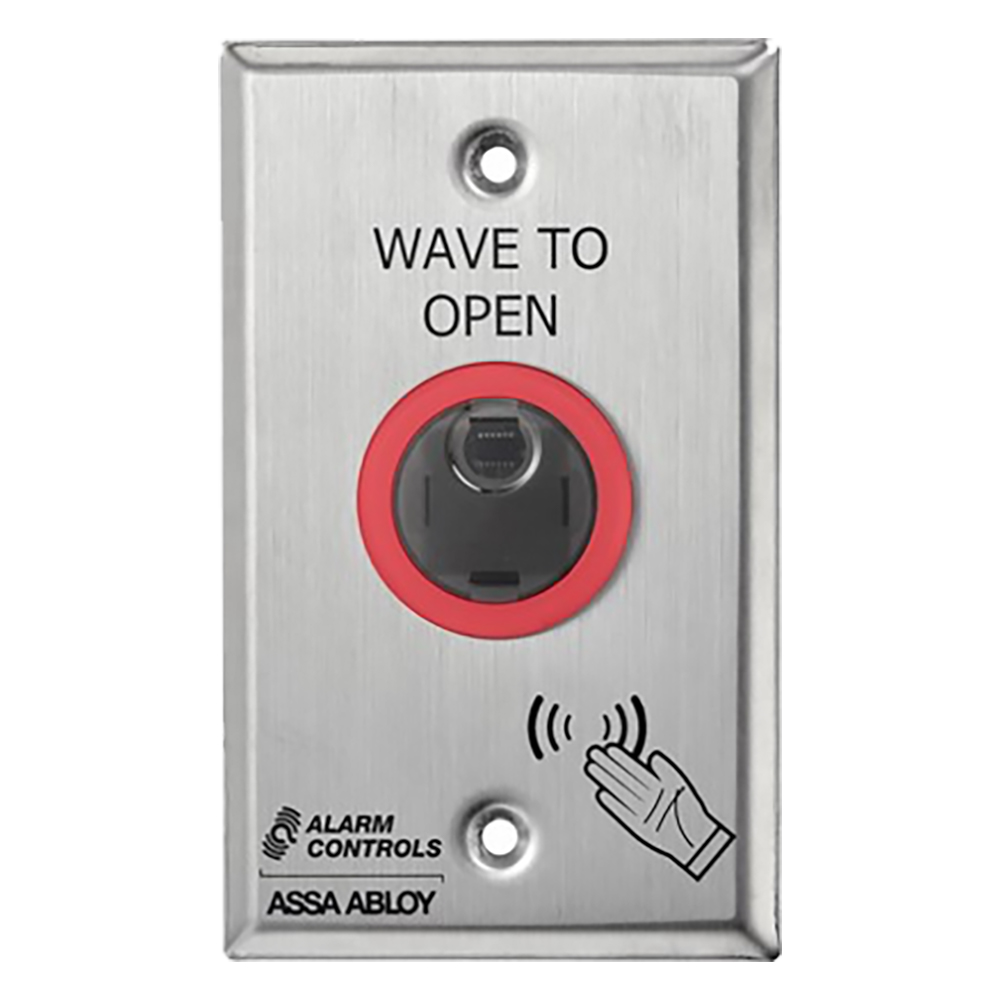

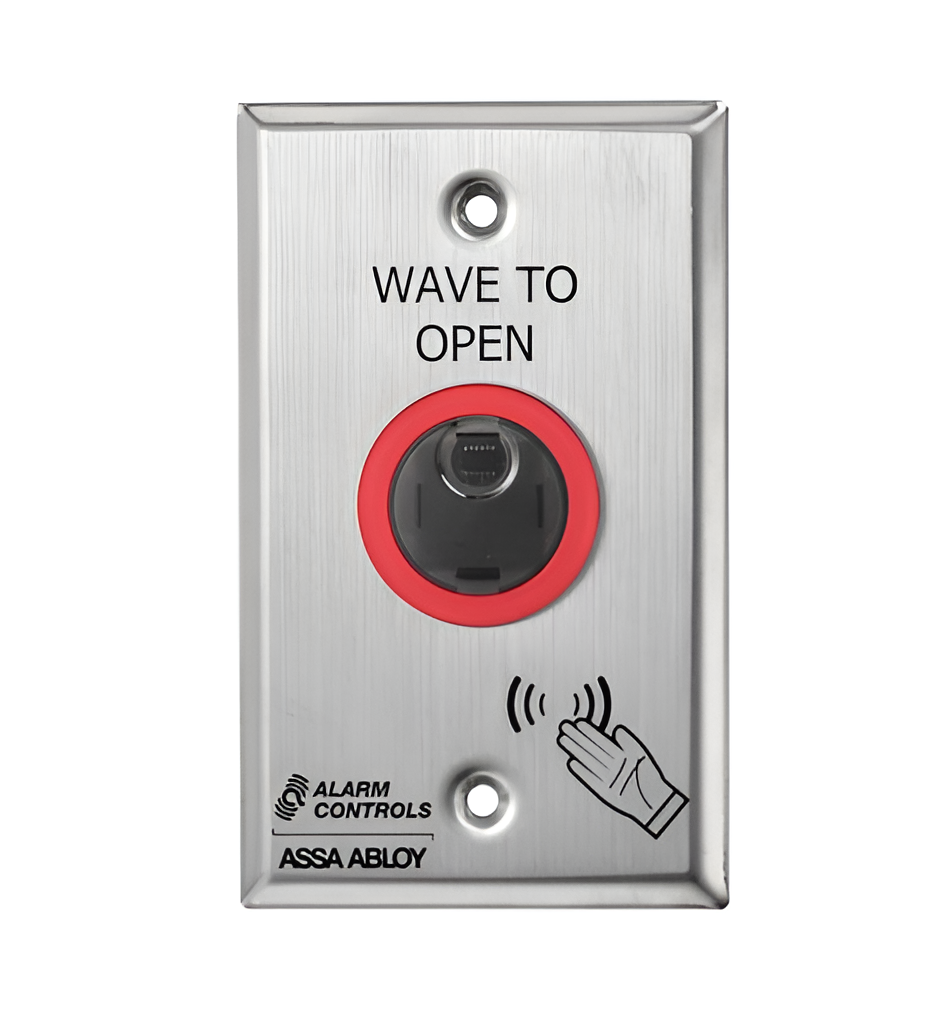

Alarm Controls NTB-1 Alarm Controls Corporation

The battery powered no touch request to exit activation switches use infrared sensors to reliably allow safe egress or activation of a device with a simple hand presentation. These surface mounted, request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending access control in an easy and affordable way. The NTB series is a direct replacement for traditional "request to exit" push buttons and can be used to quickly upgrade existing applications to code compliant touchless solutions using existing wiring.

Features:

• Quickly upgrade existing applications to code compliant touchless using existing wiring
• Designed to work in product configurations with and without auto operator (Can include electric strike, electrified deadlatch, exit devices with latch retraction, magnetic locks. Always check with your local AHJ.)
• Direct replacement for traditional "request to exit" push buttons
• Battery or DC powered (optional)
• Wired communication or wireless upgrade (optional)
• Stainless steel with vandal resistant face plate
• Sensor detection range up to 4" for applications that require precise activation
• Field-configurable bi-color (red/green) LED status indicators
• Selectable time delay 1 to 10 seconds
• Field-configurable on/off audible tones configurable via jumper
• Plate screened "wave to open"
• For use with swinging and sliding door applications
• Part of a continuum of Safer2Open low-touch and touchless door hardware solutions from ASSA ABLOY

Specifications:

• Electrical:
• Input Operating Voltage : 12 or 24 VDC hard-powered
• Switch : 1 DPDT - Double pole double throw
• Contact Rating : 2A at 30 VDC/VAC
• Batteries Included : Yes
• Battery Type : 2 AA alkaline batteries
• Environmental:
• Maximum Operating Temperature (F) : 131
• Minimum Operating Temperature (F) : -13
• Certifications:
• CE Certified
• RoHS Compliant
• UL 294 - Standard for Access Control System Units

Features

• Quickly upgrade existing applications to code compliant touchless using existing wiring
• Designed to work in product configurations with and without auto operator (Can include electric strike, electrified deadlatch, exit devices with latch retraction, magnetic locks. Always check with your local AHJ.)
• Direct replacement for traditional "request to exit" push buttons
• Battery or DC powered (optional)
• Wired communication or wireless upgrade (optional)
• Stainless steel with vandal resistant face plate
• Sensor detection range up to 4" for applications that require precise activation
• Field-configurable bi-color (red/green) LED status indicators
• Selectable time delay 1 to 10 seconds
• Field-configurable on/off audible tones configurable via jumper
• Plate screened "wave to open"
• For use with swinging and sliding door applications
• Part of a continuum of Safer2Open low-touch and touchless door hardware solutions from ASSA ABLOY
