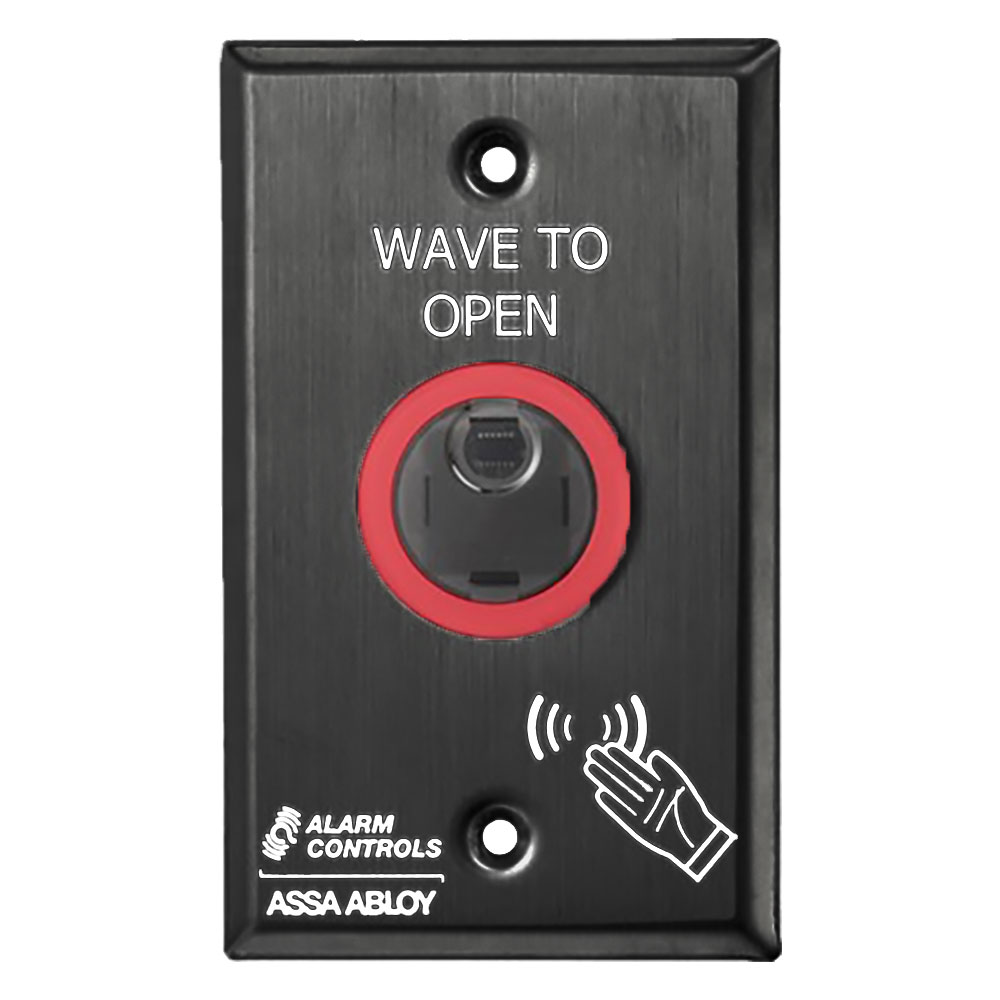

Alarm Controls NTB-1-BK No-Touch Door Actuator by Batt Op

Alarm Controls NTB-1-BK Battery Operated No-Touch Door Actuator offers a seamless solution for touchless access and egress, enhancing safety and convenience in any commercial setting. This innovative actuator features an infrared sensor that activates with a simple hand wave, eliminating the need for physical contact. The NTB-1-BK is designed for easy installation, serving as a direct replacement for traditional request-to-exit push buttons, allowing for quick upgrades to code-compliant touchless systems using existing wiring. With a durable black finish, this single-gang "Wave to Open" plate not only looks professional but is also built to withstand wear and tear, thanks to its stainless steel construction with a vandal-resistant faceplate. Its wired DPDT relay output is rated for 2A at 30V AC/DC, and the actuator includes 2 AA batteries for immediate use, with an optional hard-wired 12 or 24 VDC power supply available. The device features a programmable delay of 1 to 10 seconds, ensuring flexibility for various applications. In addition, the built-in bi-color LED indicators provide clear status feedback, while obstruction detection enhances safety. The NTB-1-BK is an ideal choice for those seeking effective, no-touch solutions for swinging and sliding door applications.

Batt Op No-Touch DoorActuator

Touchless Actuator, Infrared Sensor, Wired DPDT Relay Output rated 2A @ 30V AC/DC, Programmable Delay, Bi-Color LED, 2 AA Batteries Included, Single Gang "Wave to Open" Plate, Black Finish

These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring. These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.

Battery powered infrared sensors to reliably allow safe egress or to activate a device with a simple hand presentation.

These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.

• Quickly upgrade existing applications to code compliant touchless using existing wiring
• Designed to work in product configurations with and without auto operator (Can include electric strike, electrified deadlatch, exit devices with latch retraction, magnetic locks. Always check with your local AHJ.)
• Direct replacement for traditional “request to exit” push buttons

Standard Features:

• Battery or DC powered (optional)
• Low battery LED status indicator
• Wired communication
• Stainless steel with vandal resistant face plate
• Sensor detection range up to 4" for applications that require precise activation
• Built in obstruction detection
• Field-configurable bi-color (red/green) LED status indicators
• Selectable time delay 1 to 10 seconds
• Field-configurable on/off audible tones configurable via jumper
• Plate screened "Wave To Open"
• For use with swinging and sliding door applications

Options:

• NTB-1 with single gang wall plate
• NTB-1A single gang with ADA symbol
• NTB-2 with double gang wall plate
• NTB-2A double gang with ADA symbol
• NTB-3 with narrow stile wall plate
• NTB-3A narrow stile with ADA symbol
• Available in stainless steel (standard), black (BK), and Duranodic Dark Bronze (DURO) finishes

Certifications & Listings:

• CE Certified
• UL294 Listed

Electrical:

• DPDT relay rated 2A at 30 VDC/VAC
• 2 AA alkaline batteries (included)
• Optional 12 or 24 VDC hard-powered

Operating Temperature:

•  -13 to + 131 F (-25 to 55 C)
