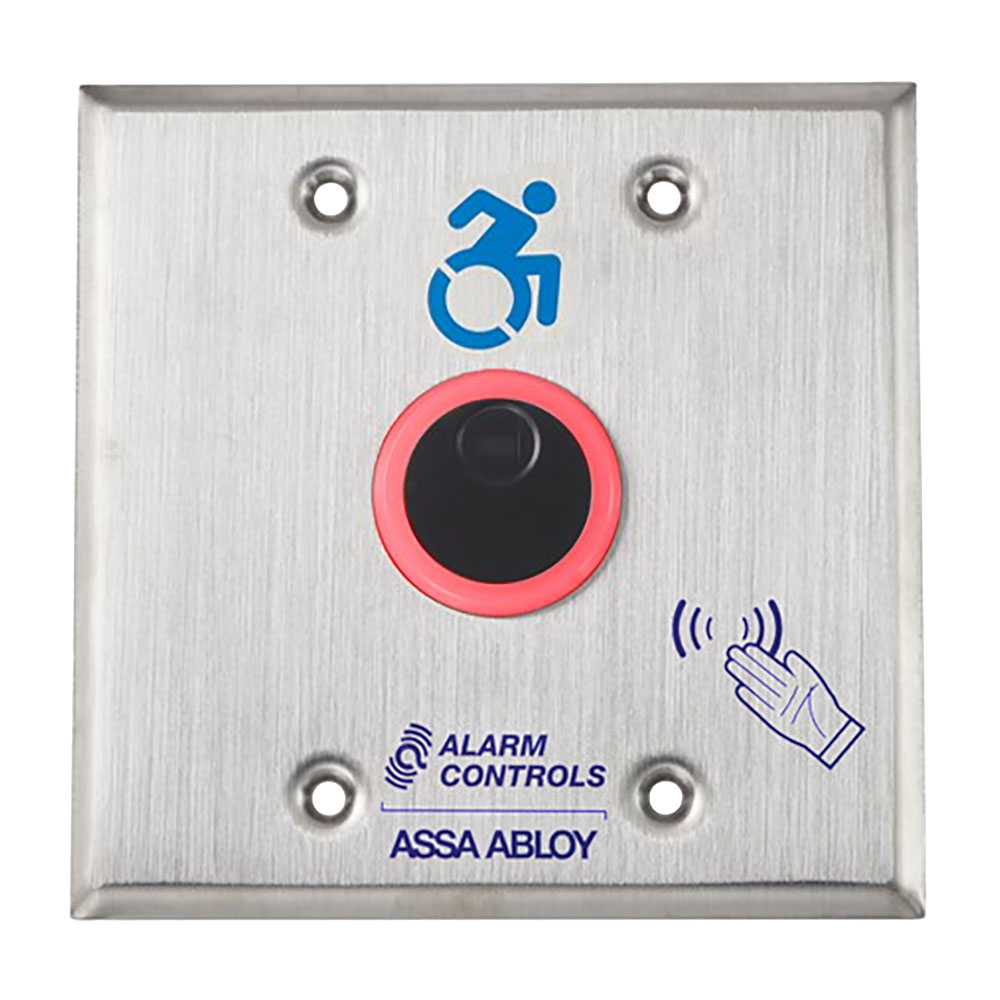

Alarm Controls NTB-2A No-Touch Door Actuator - Battery Operated

Alarm Controls NTB-2A Battery Operated No-Touch Door Actuator offers an innovative solution for touchless access and egress, enhancing convenience and safety in high-traffic environments. This touchless actuator utilizes an infrared sensor, allowing users to activate the door with a simple hand gesture, eliminating the need for physical contact. The unit features a wired DPDT relay output rated at 2A @ 30V AC/DC, providing reliable operation for various door configurations, including electric strikes and exit devices. Designed for commercial applications, the NTB-2A comes with a double gang active wheelchair plate finished in satin stainless steel, ensuring both durability and aesthetic appeal. The built-in bi-color LED provides visual feedback, while the programmable delay of 1 to 10 seconds adds flexibility to its operation. Additionally, the actuator is powered by two included AA batteries, with an optional hardwired 12 or 24 VDC power setup. Certified to meet CE and UL294 standards, the NTB-2A is an ideal replacement for traditional "request to exit" push buttons, allowing for quick upgrades to meet code-compliant, no-touch solutions without extensive modifications. Its sensor detection range of up to 4 inches ensures precise activation, making it a reliable choice for enhancing accessibility and safety in any environment.

Batt Op No-Touch DoorActuator

Touchless Actuator, Infrared Sensor, Wired DPDT Relay Output rated 2A @ 30V AC/DC, Programmable Delay, Bi-Color LED, 2 AA Batteries Included, Double Gang Active Wheelchair Plate, Satin Stainless Steel Finish

These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring. These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.

Battery powered infrared sensors to reliably allow safe egress or to activate a device with a simple hand presentation.

These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.

• Quickly upgrade existing applications to code compliant touchless using existing wiring
• Designed to work in product configurations with and without auto operator (Can include electric strike, electrified deadlatch, exit devices with latch retraction, magnetic locks. Always check with your local AHJ.)
• Direct replacement for traditional “request to exit” push buttons

Standard Features:

• Battery or DC powered (optional)
• Low battery LED status indicator
• Wired communication
• Stainless steel with vandal resistant face plate
• Sensor detection range up to 4" for applications that require precise activation
• Built in obstruction detection
• Field-configurable bi-color (red/green) LED status indicators
• Selectable time delay 1 to 10 seconds
• Field-configurable on/off audible tones configurable via jumper
• Plate screened "Wave To Open"
• For use with swinging and sliding door applications

Options:

• NTB-1 with single gang wall plate
• NTB-1A single gang with ADA symbol
• NTB-2 with double gang wall plate
• NTB-2A double gang with ADA symbol
• NTB-3 with narrow stile wall plate
• NTB-3A narrow stile with ADA symbol
• Available in stainless steel (standard), black (BK), and Duranodic Dark Bronze (DURO) finishes

Certifications & Listings:

• CE Certified
• UL294 Listed

Electrical:

• DPDT relay rated 2A at 30 VDC/VAC
• 2 AA alkaline batteries (included)
• Optional 12 or 24 VDC hard-powered

Operating Temperature:

•  -13 to + 131 F (-25 to 55 C)
