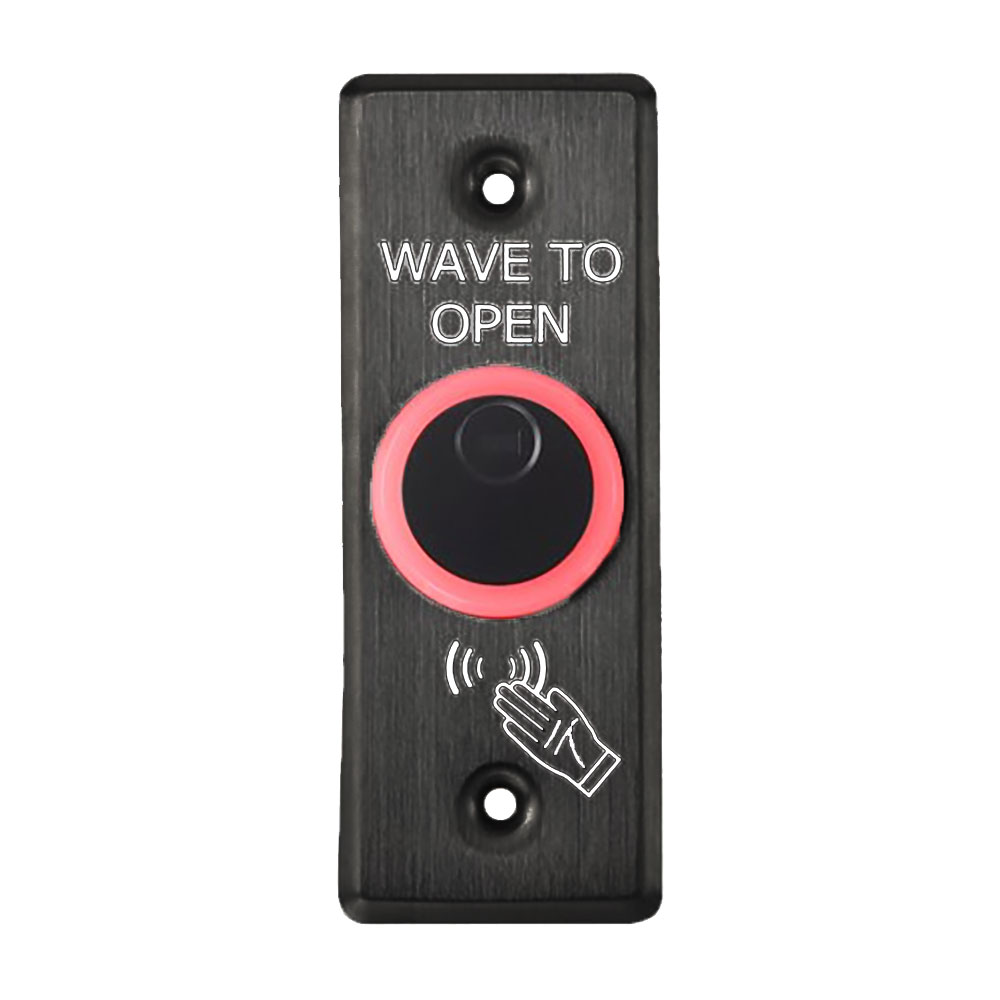

Alarm Controls NTB-3-BK No-Touch Door Actuator - Battery Operated

Alarm Controls NTB-3-BK Battery Operated No-Touch Door Actuator offers a seamless and hygienic solution for access control in commercial spaces. Featuring an infrared sensor, this touchless actuator activates with a simple hand wave, ensuring safe egress without physical contact. It is powered by two included AA batteries, but can also be hardwired to 12 or 24 VDC if preferred. The NTB Series is designed for easy installation as a direct replacement for traditional "request to exit" push buttons, making it an ideal choice for upgrading existing setups to code-compliant, touchless solutions without costly modifications. This model is equipped with a programmable delay of 1 to 10 seconds, allowing configurable activation based on user needs. Key specifications include a wired DPDT relay output rated at 2A @ 30V AC/DC, a detection range of up to 4 inches, and built-in obstruction detection for enhanced safety. The bi-color LED indicators provide clear feedback, indicating the status of the operation. Available in a sleek black finish, the NTB-3-BK is suitable for both swinging and sliding door applications and is designed for indoor use. With its combination of functionality and ease of installation, the Alarm Controls NTB-3-BK is an excellent choice for modern access control needs.

Batt Op No-Touch DoorActuator

Touchless Actuator, Infrared Sensor, Wired DPDT Relay Output rated 2A @ 30V AC/DC, Programmable Delay, Bi-Color LED, 2 AA Batteries Included, Narrow Jamb "Wave to Open" Plate, Black Finish

These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring. These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.

Battery powered infrared sensors to reliably allow safe egress or to activate a device with a simple hand presentation.

These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.

• Quickly upgrade existing applications to code compliant touchless using existing wiring
• Designed to work in product configurations with and without auto operator (Can include electric strike, electrified deadlatch, exit devices with latch retraction, magnetic locks. Always check with your local AHJ.)
• Direct replacement for traditional “request to exit” push buttons

Standard Features:

• Battery or DC powered (optional)
• Low battery LED status indicator
• Wired communication
• Stainless steel with vandal resistant face plate
• Sensor detection range up to 4" for applications that require precise activation
• Built in obstruction detection
• Field-configurable bi-color (red/green) LED status indicators
• Selectable time delay 1 to 10 seconds
• Field-configurable on/off audible tones configurable via jumper
• Plate screened "Wave To Open"
• For use with swinging and sliding door applications

Options:

• NTB-1 with single gang wall plate
• NTB-1A single gang with ADA symbol
• NTB-2 with double gang wall plate
• NTB-2A double gang with ADA symbol
• NTB-3 with narrow stile wall plate
• NTB-3A narrow stile with ADA symbol
• Available in stainless steel (standard), black (BK), and Duranodic Dark Bronze (DURO) finishes

Certifications & Listings:

• CE Certified
• UL294 Listed

Electrical:

• DPDT relay rated 2A at 30 VDC/VAC
• 2 AA alkaline batteries (included)
• Optional 12 or 24 VDC hard-powered

Operating Temperature:

•  -13 to + 131 F (-25 to 55 C)
