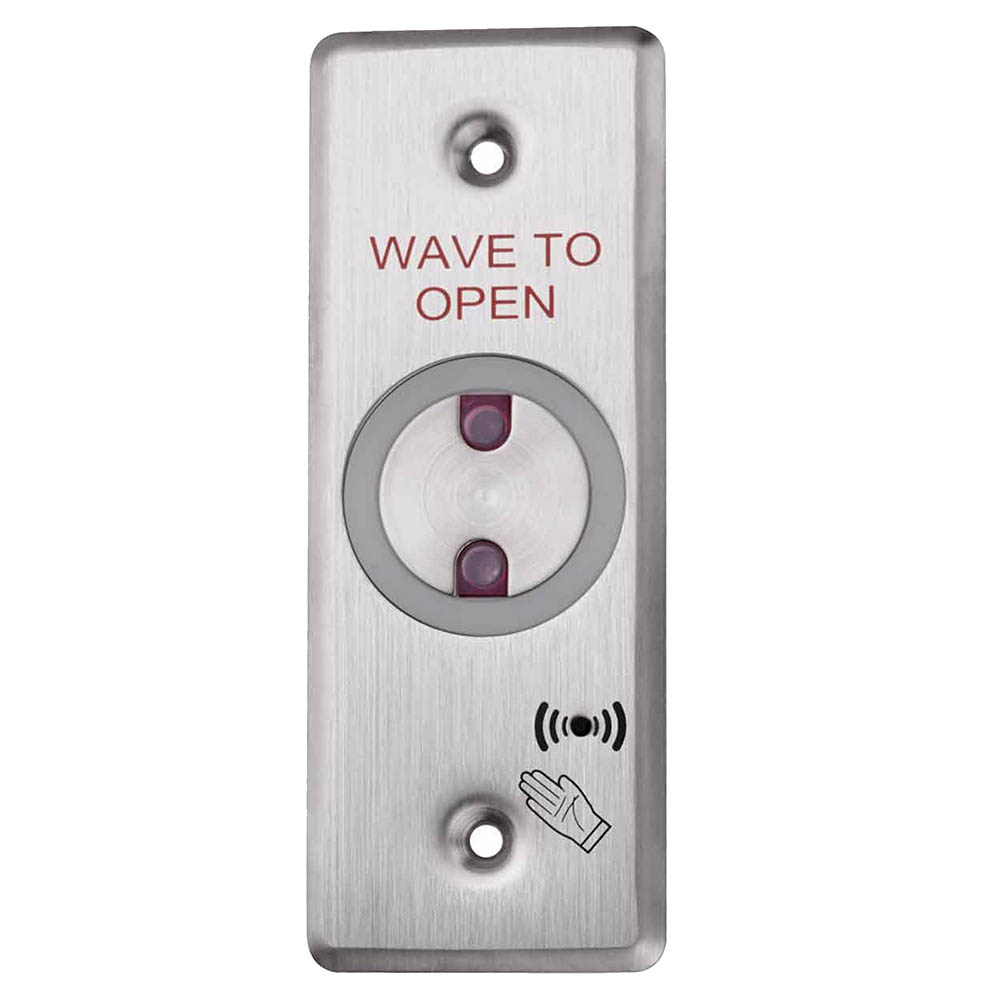

Alarm Controls NTS-3 No Touch Narrow Stile Switch

Alarm Controls NTS-3 No Touch Switch, Narrow Stile is an innovative solution designed for seamless egress in various settings, including hospitals, schools, labs, and offices. This No Touch Request to Exit Station features advanced infrared sensors that activate with a simple hand presentation, significantly reducing the risk of contamination in sensitive environments. Constructed with a durable stainless steel faceplate, the NTS-3 is built to withstand vandalism while maintaining a sleek look. Its sensor detection range extends up to 4 inches, ensuring reliable operation. The bi-color Halo LED status indicators provide clear visual feedback, while the "Wave To Open" plate design enhances user-friendliness. With a customizable time delay ranging from 1 to 35 seconds, this switch can adapt to your specific operational needs. The NTS-3 operates on 12VDC or 24VDC, utilizing an SPDT relay rated for 2A at 30 VDC/VAC, making it versatile for various electrical systems. Certified CE compliant, this unit is suitable for indoor commercial installations. Additional options include different wall plate sizes, catering to various installation requirements. Elevate your access control solutions with the reliability and convenience of the Alarm Controls NTS-3 No Touch Switch.

No Touch Switch, Narrow Stile

No Touch Request to Exit Station Switch, Narrow Stile, Dual Color LED

Infrared sensors to reliably allow safe egress or to activate a device with the simple hand presentation.

Designed to reduce the risk of contamination for sensitive applications including: bathrooms, hospitals, labs, schools and offices.

Standard Features:

• Stainless steel with vandal resistant face plate
• Sensor detection range up to 4"
• Bi-color Halo LED status indicators
• Plate screened "Wave To Open"
• Time delay settable for 1 to 35 seconds

Options:

• NTS-1 with single gang wall plate (4.5"H x 2.75"W)
• NTS-2 with double gang wall plate (4.5"H x 4.5"W)
• NTS-3 with narrow stile wall plate (4.5"H x 1.75"W)

Certifications & Listings:

• CE Certified

Electrical:

• SPDT relay rated 2A at 30 VDC/VAC
• Operates on 12VDC or 24 VDC

Operating Temperature:

•  -13 to + 131 F (-25 to 55 C)

Resources

• Alarm Controls Touchless Solutions Flyer
