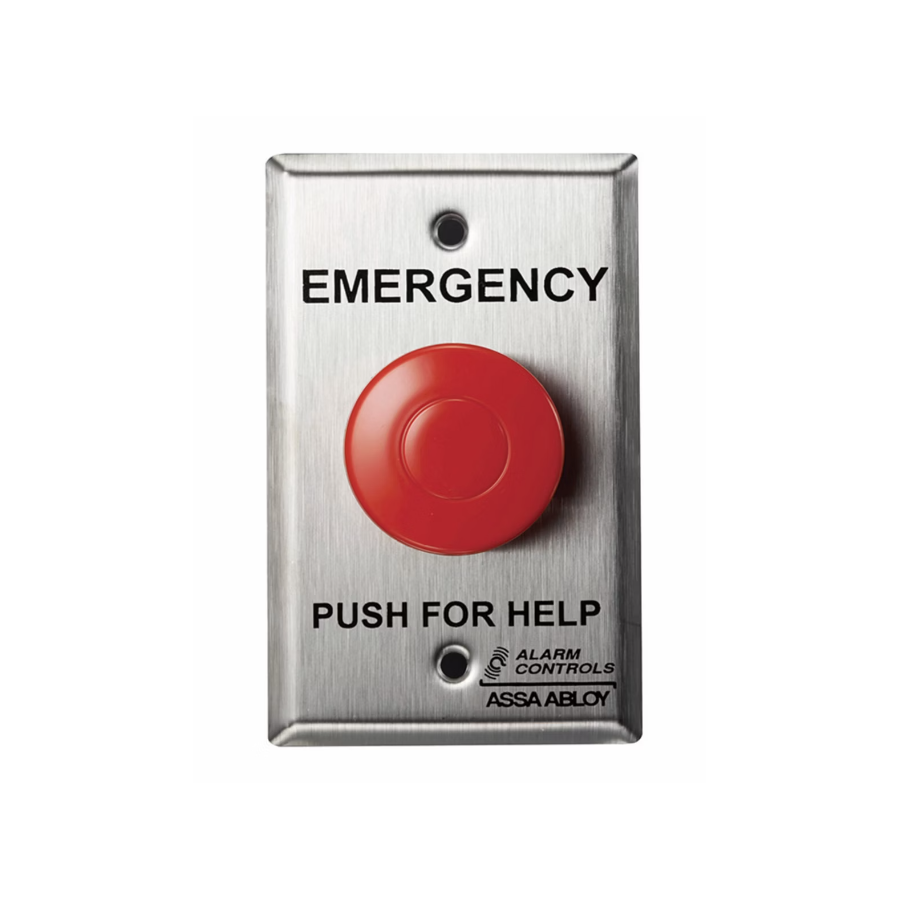

Alarm Controls PBL-1-1-L3-GR Red Mushroom Emergency Push Button, 1 No, 1 NC, LED, 24VDC, Stainless Steel

Alarm Controls Corporation PBL-1-1-L3-GR Red Mushroom Button Emergency Push for Help is designed to provide a reliable solution for emergency situations. This single gang panic station features a latching push button switch that remains in its active or inactive state until it is actuated again, ensuring clear and effective communication during critical moments. Constructed with a durable 302 stainless steel wall plate and weather-resistant to IP65 standards, this emergency button is built to withstand harsh conditions. The prominent 1-1/2" red mushroom button is easy to locate and is clearly marked with "emergency push for help," allowing users to quickly call for assistance. The alternate action switch configuration is compatible with most systems, providing versatility in various applications. Key specifications include a contact rating of 10A at 5 VDC or 120 VAC, and the option for LED illumination in various voltages, ensuring visibility in low-light conditions. With an operating temperature range of -13°F to +158°F (-25°C to 70°C), this button is designed for optimum performance in diverse environments. Additionally, multiple plate finishes and widths are available, allowing customization to fit any aesthetic or functional requirement. The Alarm Controls Corporation PBL-1-1-L3-GR is an essential component for enhancing safety and accessibility in any building.

Red Mushroom Button Emergency Push for Help, 1 No, 1 NC, LED, 24VDC, Guard Ring, 302 Stainless Steel

Single gang panic station with latching push button switch that remains active or inactive until actuated again. Choice of contact configurations ensures compatibility with most systems.

Features:

• Single gang stainless steel wall plate, weather resistant to IP65 standards
• 1-1/2" red mushroom button
• Plate screened "emergency push for help" to quickly call for assistance
• Alternate action switch

Options:

• Plate: multiple finishes and widths available, specify when ordering
• Illumination: long life LED in 6V, 12V, 24V, 120V, specify when ordering
• GR Guard ring
• LUC Lift up cover

Specifications:

• Certifications: Conforms to IP65
• Electrical: Available in any combination of N/O and/or N/C contact pairs.
• Electrical: Contacts rated 10A at 5 VDC or 120 VAC
• Electrical: Switch connection via screw terminals
• Electrical: Switch depth behind plate: 2-1/2"
• Operating Temperature: -13F to +158F (-25 to 70 C)

Plate Options:

• 1: 302 Stainless steel
• 2: White
• 3: Ivory
• 4: Red
• 5: 1-3/4" Stainless
• 6: 1-3/4" Red
