Alarm Controls PS5-111 Alarm Controls Corporation

Vandal resistant push plates with hardwired switches are designed for automatic door activation and request to exit applications. Push plates are available in narrow, T-style, single and double gang options.

Features:

• PN 1-7/8" narrow stile plate is suitable for mullion mounting
• PT T-Style plate mounted on standard single gang electrical box
• PS Single gang plate mounted on standard single gang electrical box
• PD Mounts on standard double gang electrical box
• Machined from solid aluminum with engraved text and anodized finish
• Tamper resistant mounting
• Vandal resistant; Designed for use in high traffic areas
• Finish: multiple plate finish options available
• Switch type, choose: SPDT, DPDT, Pneumatic

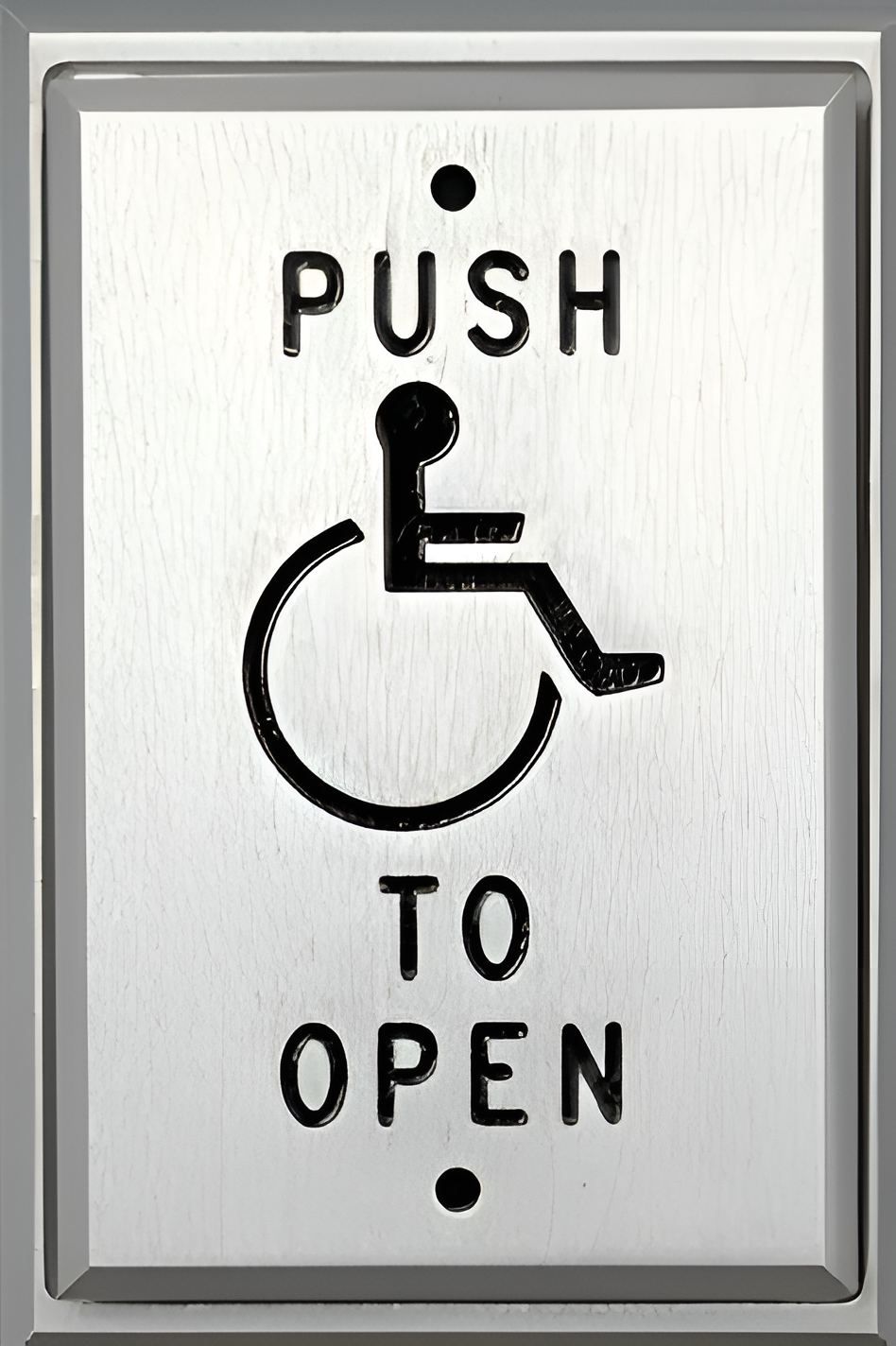

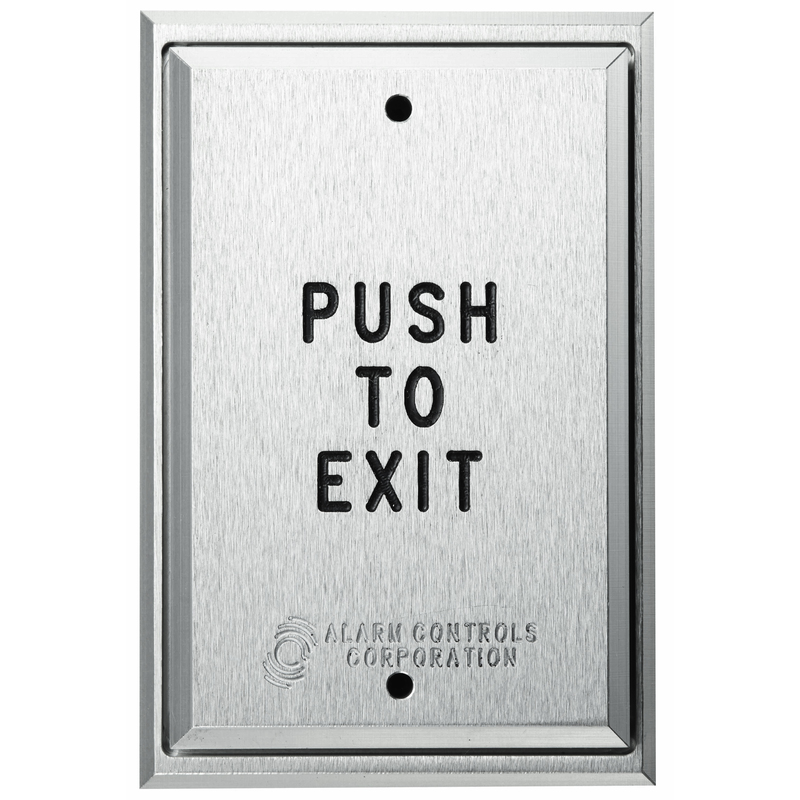

• Plate engraving, available with: "Push to Exit", "Push to Operate", "Push to Open", ADA Symbol, "Emergency Door Release"

Specifications:

• Electrical:
• Contact Action : N/C Pair - Red, N/O Pair - Blue
• Contact Rating : 2A at 12 VDC
• Switch : Switches terminated in 22AWG colored leads:

Features

• PN 1-7/8" narrow stile plate is suitable for mullion mounting
• PT T-Style plate mounted on standard single gang electrical box
• PS Single gang plate mounted on standard single gang electrical box
• PD Mounts on standard double gang electrical box
• Machined from solid aluminum with engraved text and anodized finish
• Tamper resistant mounting
• Vandal resistant; Designed for use in high traffic areas
• Finish: multiple plate finish options available
• Switch type, choose: SPDT, DPDT, Pneumatic
• Plate engraving, available with: "Push to Exit", "Push to Operate", "Push to Open", ADA Symbol, "Emergency Door Release"

Resources

• 2019 Alarm Controls Price Book
• Alarm Controls Push Plates Cut Sheet
