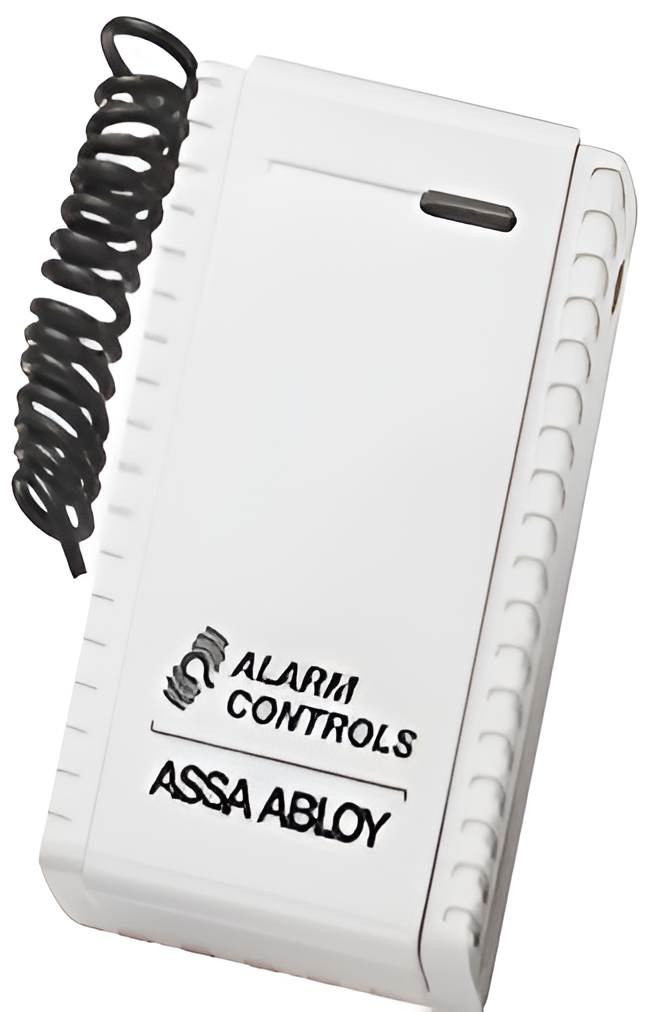

Alarm Controls RT-3R Alarm Controls Corporation

Wireless remote transmitters allow access control for up to three doors from one device. Ideal for front desk/reception applications or hard-to-wire locations. Designed to work with magnetic locks, electric strikes, keypads, gate operators and door operators. Kits include channel receiver and transmitter with mount and keychain.

Features:

• RT-1 Kit includes one channel receiver and two transmitters with mount and keychain
• RT-3 Kit includes three channel receivers, one transmitter with mount and keychain
• Receiver operates on 12 or 24 VAC or VDC
• Maximum current draw 50mA
• Temperature range: -20°C to 60°C
• Rolling code; more than one billion code combinations
• Relay SPDT contacts rated 1 Amp @ 30VDC or 120VAC
• Built-in five second delay on release
• Receiver relay is factory set for momentary mode, relay can be set for latching mode
• Receiver will accept up to 30 transmitters
• Size: 2-1/2" L x 1-1/4" W x 3/4" D
• Off-white case blends with any décor
• Receiver screw terminals are hidden by cover
• Bi-color (red & green) LED on receiver indicates status of relay
• Part of a continuum of Safer2Open™ low-touch and touchless door hardware solutions from ASSA ABLOY

Specifications:

• Electrical:
• Receiver operates on 12 or 24 VDC/VAC
• Max current draw 50mA
• Relay SPDT contact rated 1A at 30 VDC or 120 VAC
• Working frequency: 433.92 MHz
• Operating Temperature: -4 to +140F [-20 to +60C]
• Certifications:
  • CE Certified
  • RoHS compliant

Options:

• RT-1: one receiver, two transmitters
• RT-1T: additional transmitter
• RT-1TW: additional transmitter with wire lead
• RT-3: three receivers, one transmitter
• RT-3R: additional receiver

Features

• RT-1 Kit includes one channel receiver and two transmitters with mount and keychain
• RT-3 Kit includes three channel receivers, one transmitter with mount and keychain
• Receiver operates on 12 or 24 VAC or VDC
• Maximum current draw 50mA
• Temperature range: -20°C to 60°C
• Rolling code; more than one billion code combinations
• Relay SPDT contacts rated 1 Amp @ 30VDC or 120VAC
• Built-in five second delay on release
• Receiver relay is factory set for momentary mode, relay can be set for latching mode
• Receiver will accept up to 30 transmitters
• Size: 2-1/2" L x 1-1/4" W x 3/4" D
• Off-white case blends with any décor
• Receiver screw terminals are hidden by cover
• Bi-color (red & green) LED on receiver indicates status of relay
• Part of a continuum of Safer2Open™ low-touch and touchless door hardware solutions from ASSA ABLOY
