Alarm Controls TS-14 Alarm Controls Corporation
Images may not represent actual product and finish

Alarm Controls TS-14 Alarm Controls Corporation

Your Price: $306.45
Retail Price:$454.000
Your Savings:$147.55(33%)

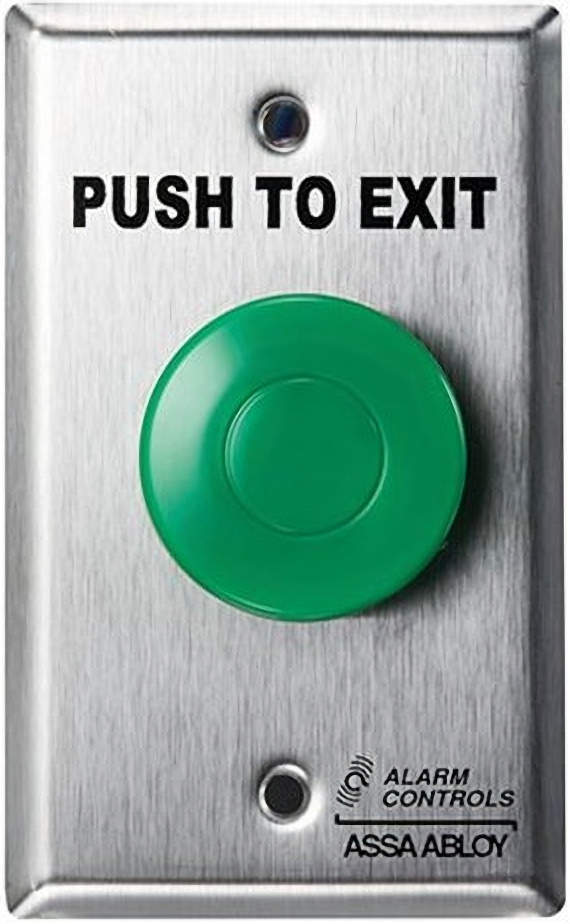

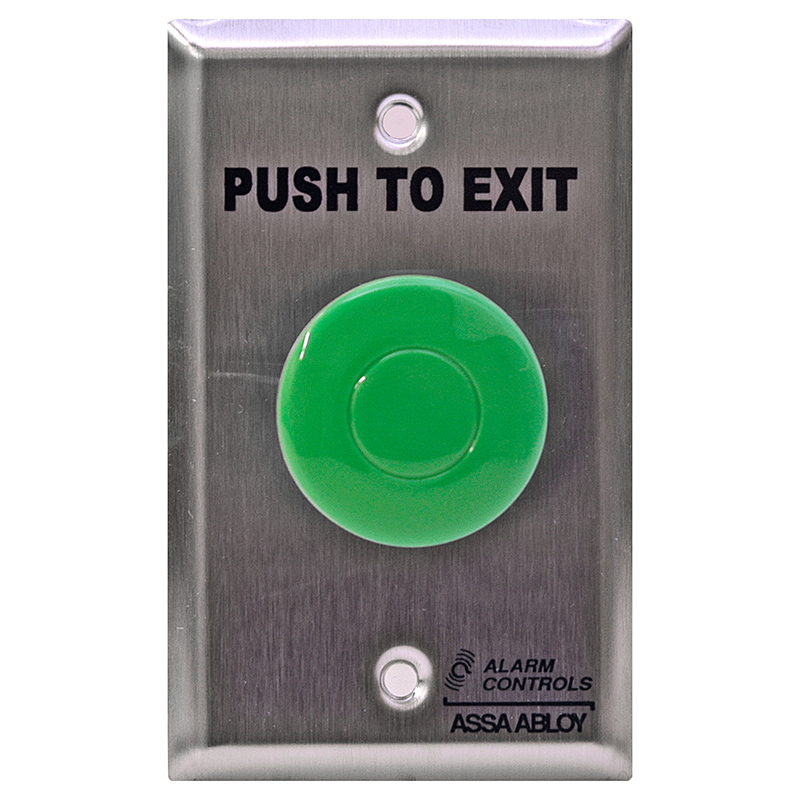

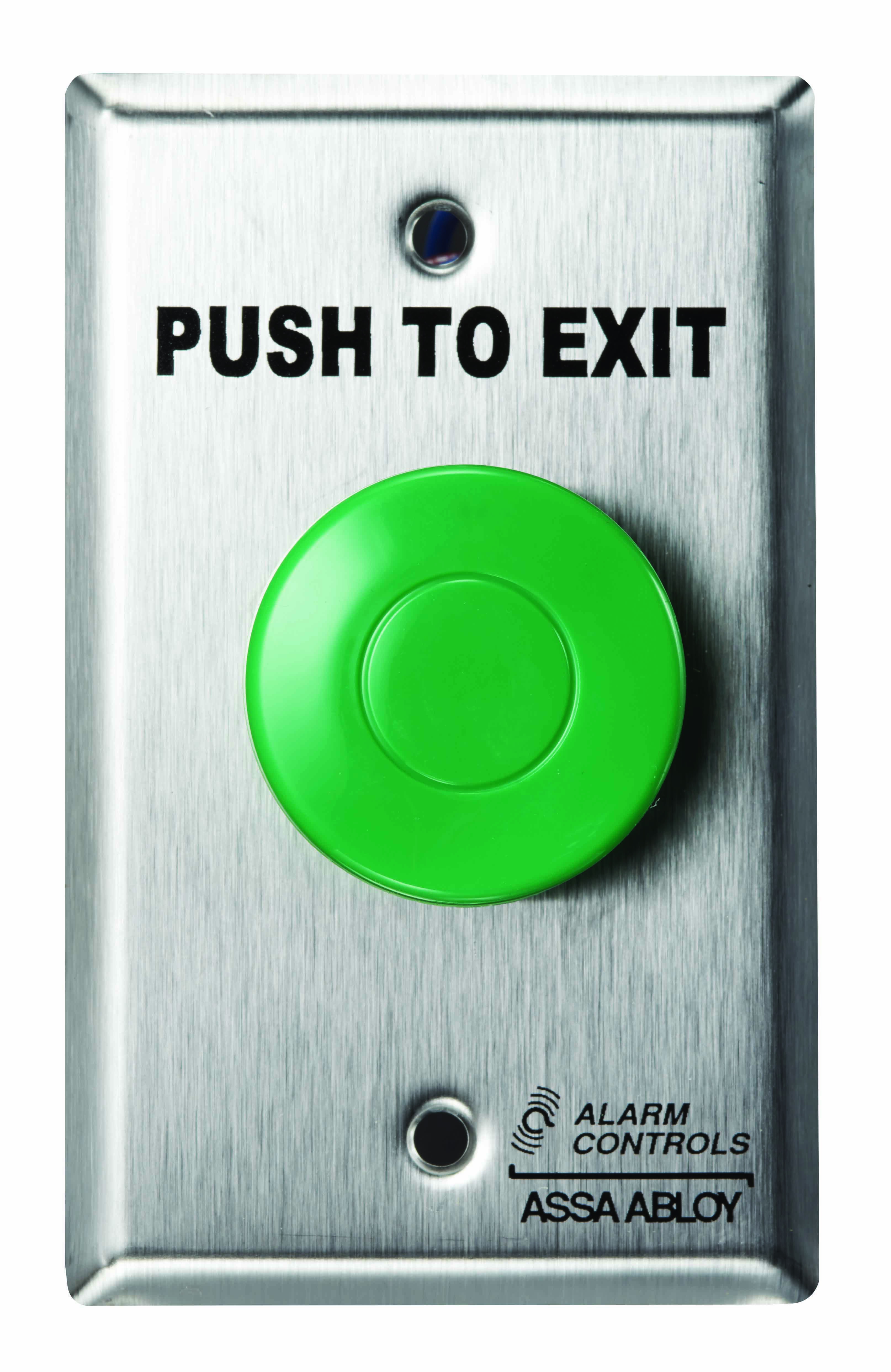

1-1/2" Green Mushroom Button, "PUSH TO EXIT", Pneumatic Time Delay, Single Gang, Satin Stainless Steel
Part Number : ALC_TS14
Availability: 309 In Stock
Alarm Controls TS-14 Alarm Controls Corporation

Notice: The info below is not item specific.

The TS-14 request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.

Features:

  • Switch mounted on single gang wall plate with 430 stainless steel finish
  • 1-1/2" green mushroom push button
  • Plate screened "PUSH TO EXIT" for easy to follow egress instructions
  • Pneumatic time delay is adjustable 2 to 60 seconds
  • Does not require external power for operation

Specifications:

  • Certifications UL 294 listed
  • Electrical:
    • One N/O and one N/C contact pair
    • Contacts rated 10A at 120 VDC
    • Switch depth behind plate: 2-1/4"
    • Switch time repeatable +/- 10%
    • Switch terminated with 10" colored leads
  • Operating Temperature: +15 to 120F (-9 to 49C)

Options:

  • TS-14R: with red mushroom push button
  • TS-14N: with switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
  • TS-14NR: mounted on narrow wall plate with red push button
  • TS-14302: mounted on weather resistant plate with 302 stainless steel finish
  • Finishes: multiple plate finishes available
  • Custom screening available

  • 1.5" Green mushroom button
  • One Normally-Open contact pair and one Normally-Closed contact pair
  • Contacts rated 10A @ 35VDC
  • Time range settable between 2 and 60 seconds
  • Switch time is repeatable ±10%
  • Switch mounted on a single gang stainless steel electrical plate
  • UL listed components
  • Temperature range +15°F to +120°F
  • Switch depth 2.25" behind plate
  • Single Gang Stainless Steel Wall Plate and Green Mushroom Button
  • Contacts Rated 10A @ 35VDC
  • Time Range Settable Between 2 and 60 Seconds
  • Switch Time is Repeatable +/- 10%
  • UL Listed Components

Features

  • Switch mounted on single gang wall plate with 430 stainless steel finish
  • 1-1/2" green mushroom push button
  • Plate screened "PUSH TO EXIT" for easy to follow egress instructions
  • Pneumatic time delay is adjustable 2 to 60 seconds
  • Does not require external power for operation

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: TS-14, TS14

Category: Access Control, Hardwired, Pushplates/Buttons & Switches

Commercial Residential: Commercial

Door Application: Pushplates/Buttons & Switches

Finish: Satin Stainless Steel

Installation: Commercial

Mounting: Single Gang, Surface Mount

Mounting Plate Size: 1 Gang

Pack Qty: 1

Pushplate Style: 1-1/2in Round Button, Pneumatic Timer, "PUSH TO EXIT" Text, Request to Exit Button, Single Gang

Relay Action: Delayed Pneumatic

Size: 2-3/4" x 4-1/2"

Style: Mushroom Push Button

Subtype: Electronic Accessories

Switch Mode: Normally Closed, Normally Open, Pneumatic Time Delay

Type: SPDT

Unit of Measure: EACH

Voltage/ Amp Rating: 12 - 24V DC
