Alarm Controls TS-16 Alarm Controls Corporation

Your Price: $262.57

Retail Price:$389.000

Your Savings:$126.43(33%)

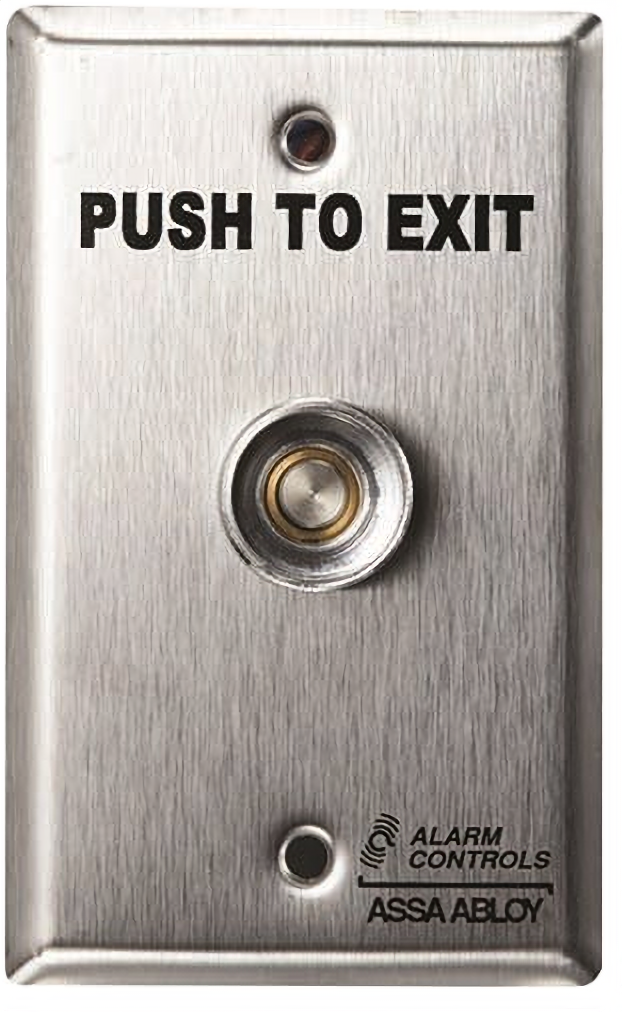

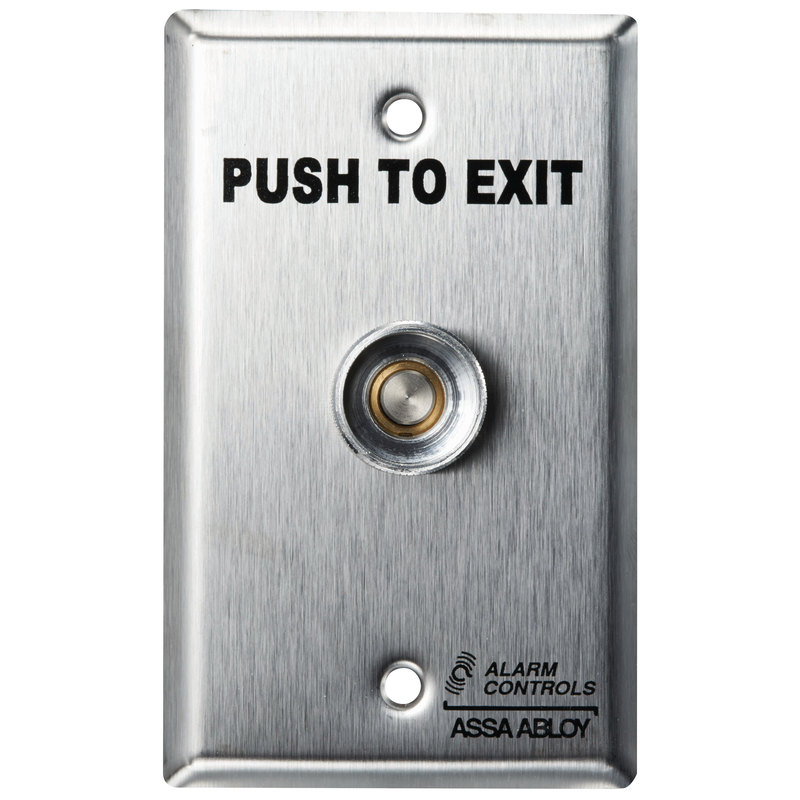

5/16" Dia. Button, "PUSH TO EXIT", Pneumatic Time Delay, Single Gang, Satin Stainless Steel

Part Number : ALC_TS16

Availability: 23 In Stock

Quantity

Description

Alarm Controls TS-16 Alarm Controls Corporation

Notice: The info below is not item specific.

The narrow stile TS-15 and single gang TS-16 request to exit stations with pneumatic push button timer, provide a convenient way to keep the door unlocked for a specified amount of time, allowing easy entry or egress. The door will relock when the relay time has expired.

Features:

Switch mounted on a single gang stainless steel electrical plate
One normally-open contact pair and on normally-closed contact pair
Pneumatic time delay range 2 to 60 seconds
Temperature range +15F to +120F
1/4" button with guard ring
Contacts rated 10A @ 35VDC
Switch time is repeatable ±10%
Switch depth 2-1/4" behind plate
Stainless steel plate
Switch mounted on a single gang stainless steel electrical plate
One normally-open contact pair and on normally-closed contact pair
Pneumatic time delay range 2 to 60 seconds
Temperature range +15F to +120F
1/4" button with guard ring
Contacts rated 10A @ 35VDC
Switch time is repeatable ±10%
Switch depth 2-1/4" behind plate
Stainless steel plate

Specifications:

Certifications UL 294 listed
Electrical:

Two sets of contacts, one N/O and one N/C, isolated
Contacts rated 10A at 120 VDC
Switch depth behind plate: 1-1/4"
Switch time repeatable +/- 10%
Switch terminated with 10" colored leads

Operating Temperature: +15 to 120F (-9 to 49C)

Options:

TS-16302: mounted on weather resistant plate with 302 stainless steel finish

Features

Switch mounted on a single gang stainless steel electrical plate
One normally-open contact pair and on normally-closed contact pair
Pneumatic time delay range 2 to 60 seconds
Temperature range +15F to +120F
1/4" button with guard ring
Contacts rated 10A @ 35VDC
Switch time is repeatable ±10%
Switch depth 2-1/4" behind plate
Stainless steel plate

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: TS-16, TS16

Category: Access Control, Hardwired, Pushplates/Buttons & Switches

Commercial Residential: Commercial

Door Application: Pushplates/Buttons & Switches

Installation: Commercial

Mounting Plate Size: 1 Gang

Pack Qty: 1

Pushplate Style: 3/4in Round Metal Button, Pneumatic Timer, "PUSH TO EXIT" Text, Request to Exit Button, Single Gang, Vandal Resistant

Relay Action: Delayed Pneumatic

Series: Alarm Controls Push Buttons

Subtype: Pushbutton

Type: ACCESS CONTROL

Unit of Measure: EACH
