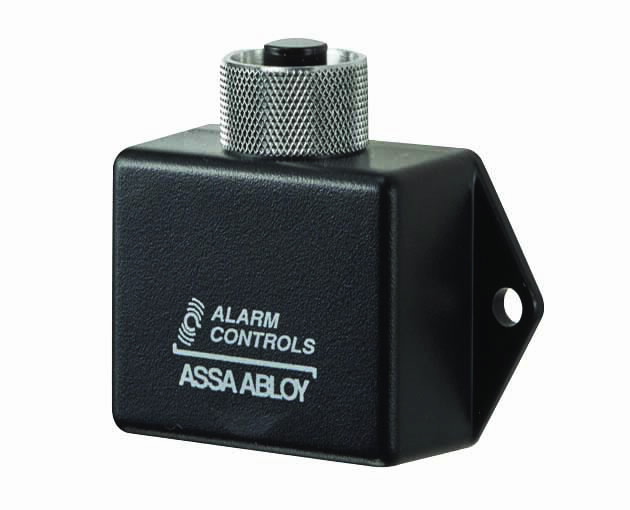

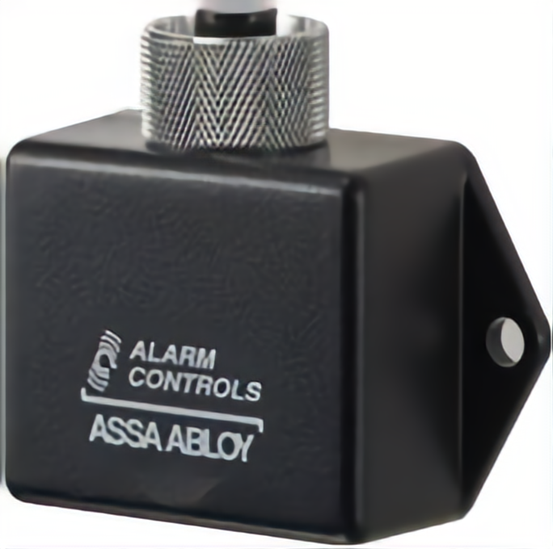

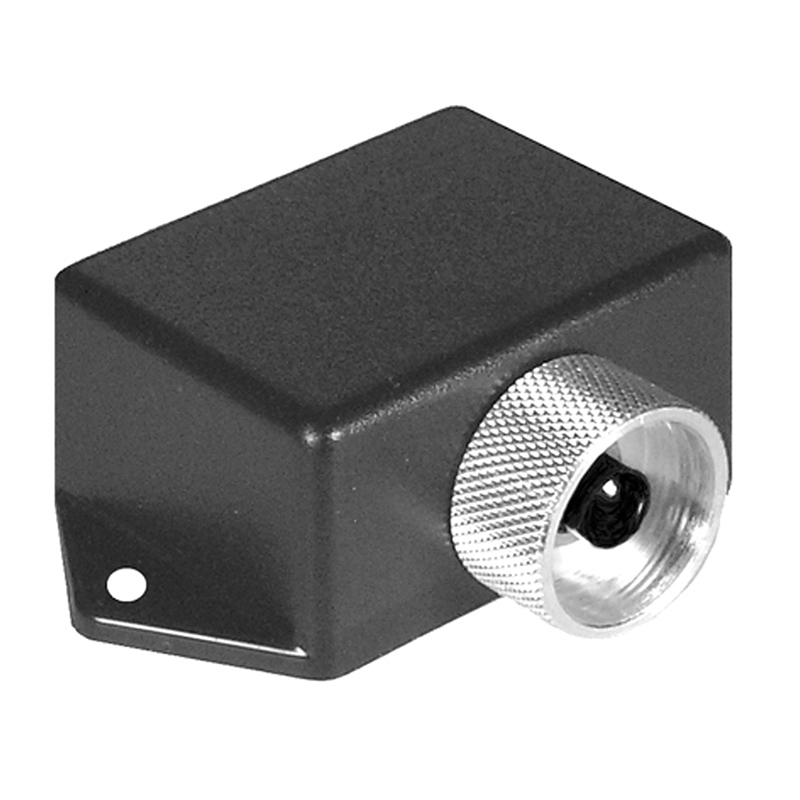

Alarm Controls TS-18 Alarm Controls Corporation

Your Price: $42.53

Retail Price:$63.00

Your Savings:$20.47(32%)

Pushbutton, Surface Mount, Momentary

Part Number : ALC_TS18

Availability: 673 In Stock

Quantity

Description

Alarm Controls TS-18 Alarm Controls Corporation

Notice: The info below is not item specific.

The TS-18, TS-19, and TS-20 are push button controlled under desk/counter door releases for remote control of doors and access controls. Ideal for front desk and reception or hard to wire areas that require discreet control of locking devices.

Features:

TS-19 with one N/O and one N/C momentary action switch; can be used with either provided switch
TS-20 with alternate action switch; can be used with either provided switch
Black ABS plastic box with two mounting ears
Surface mounted push button protected with 1" guard ring
Depressing push button operates switch contacts
TS-18 with momentary action switch

Specifications:

Electrical:

SPDT contacts rated 10A at 35 VDC
TS-18, TS-20: Switch terminated with 12" leads

Certifications:

UL 636 listed
CSA certified components

Momentary push button
S.P.D.T. contacts rated 4 Amps @ 28VDC
Push button protected with 1" guard ring
Switch terminated with colored leads
Enclosure size: 1" H x 1-1/2" W x 2" L
U.L. Approved and C.S.A. Certified Components
SPDT Contacts Rated 4 Amps @ 28VDC
Push Button Protected with 1" Guard Ring
Switch Terminated with Colored Leads
Momentary Push Button

Features

TS-19 with one N/O and one N/C momentary action switch; can be used with either provided switch
TS-20 with alternate action switch; can be used with either provided switch
Black ABS plastic box with two mounting ears
Surface mounted push button protected with 1" guard ring
Depressing push button operates switch contacts
TS-18 with momentary action switch

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: TS-18, TS18

Category: Access Control, Hardwired, Pushplates/Buttons & Switches

Commercial Residential: Commercial

Door Application: Pushplates/Buttons & Switches

Finish: Black

Installation: Commercial

Mounting: Surface Mount, Under Counter Mount

Pack Qty: 1

Pushplate Style: Desk (Surface) Mount Box, Momentary Switch, Request to Exit Button

Relay Action: Momentary (MOM)

Size: 1-1/2" x 2"

Style: Push Button

Subtype: Electronic Accessories

Switch Mode: Momentary

Type: SPDT

Unit of Measure: EACH

Voltage/ Amp Rating: 12 - 24V DC
