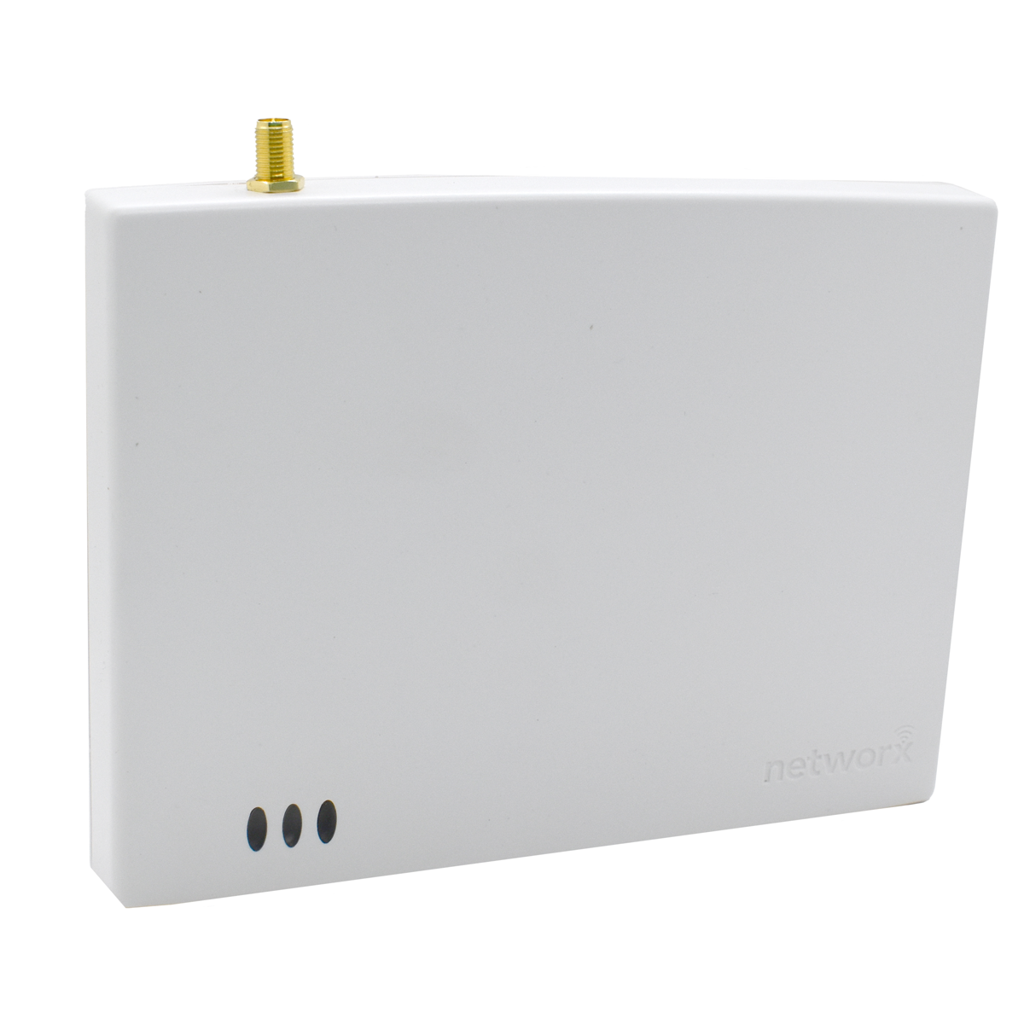

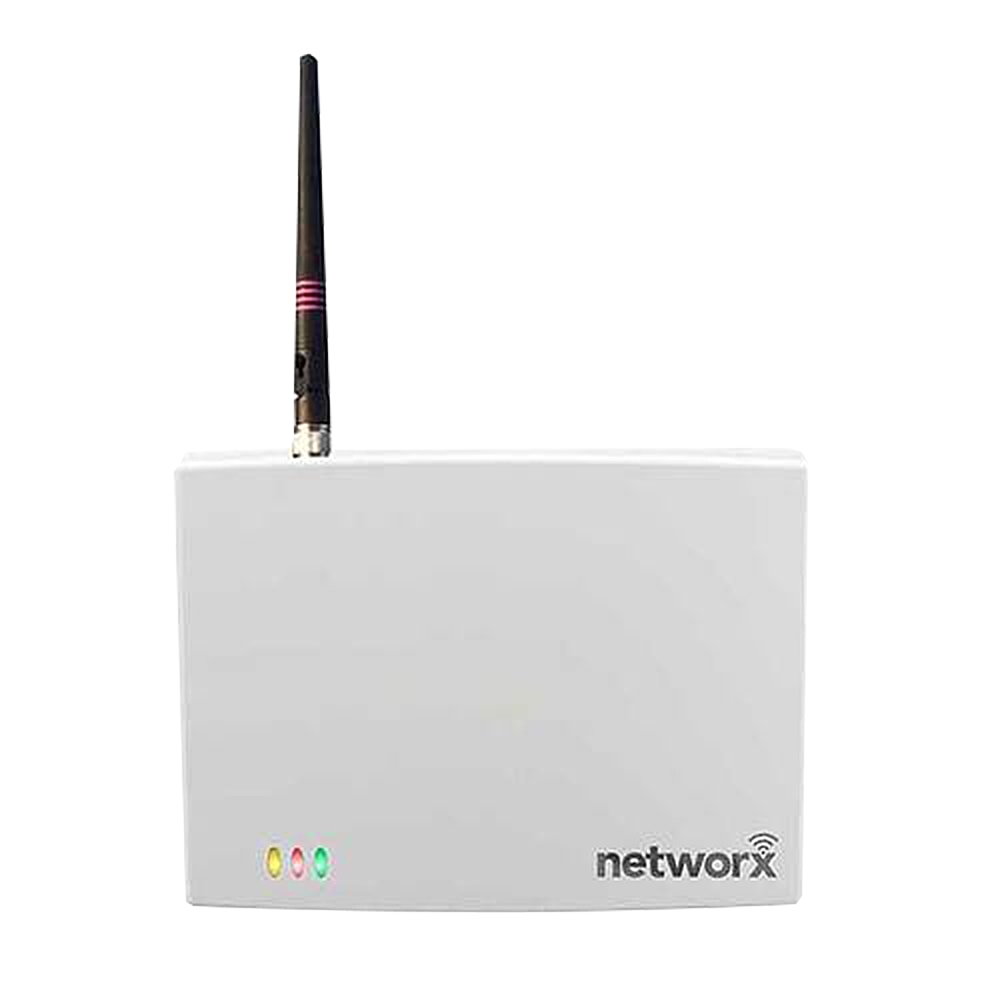

Alarm Lock AL-IM3-80211 Gateway for 802.11 Networks Generation 3, Powered by 6VAC Transformer (Supplied)

Alarm Lock Systems Inc AL-IM3-80211 Gateway for 802.11 Networks Generation 3 is a pivotal component in the Trilogy Networx™ wireless system, designed to enhance access control capabilities in various settings. This gateway seamlessly integrates with wireless wall-mounted expanders, allowing you to cover a more extensive area with a single IP address. The installation process is straightforward, requiring only an RJ-45 Ethernet network cable or Wi-Fi connection and access to an AC outlet. Key features include the ability to expand your Networx lock system with up to seven compatible expanders (AL-IME2-EXP), which can be mounted up to 175 feet radially from the lock locations. The system automatically identifies newly powered expanders and optimizes wireless signal pathways for efficient communication. Supporting a total of 99 addressable groups, this gateway is an excellent choice for any access management needs. With communication frequencies of 2.4 GHz and 900 mHz, it boasts an impressive indoor range of up to 200 feet and up to 900 feet in clear line of sight. It accommodates 5000 user codes and utilizes advanced encryption technology (128-bit AES) to ensure secure access. The AL-IM3-80211 Gateway is the ideal solution for modern access control, combining convenience, efficiency, and reliability.

Gateway for 802.11 Networks Generation 3, Powered by 6VAC Transformer (Supplied)

The Trilogy Networx AL-IM3-80211 is a Gateway device used within the Trilogy Networx™ wireless system. Combines with wireless wall-mounted expanders and plug-in wireless expanders to cover more building space with a single IP address. Installation is simple, only requiring access to one RJ-45 Ethernet network cable or Wi-Fi and connection to an AC outlet.

Features:

• Network gateway for Networx lock systems
• Expand your Networx lock system with up to 7 Expanders (AL-IME2-EXP) – Note expanders cannot communicate with older Gen 1 Gateways
• Mount within 175 feet* (radially) from the intended wireless lock location(s)
• Expanders should be mounted in elevated areas – recommended mounting position 6 to 12 in. below standard 8-9 foot ceiling
• Cost-effective and easier to wire than conventional gateways
• Networx system automatically identifies all newly powered Expanders and quickly self-determines the best wireless signal pathways
• Each Gen. 3 Gateway and a maximum of seven (7) Expanders can be addressed as one group
• Total of 99 addressable groups supported (addressable by two rotary switches)
