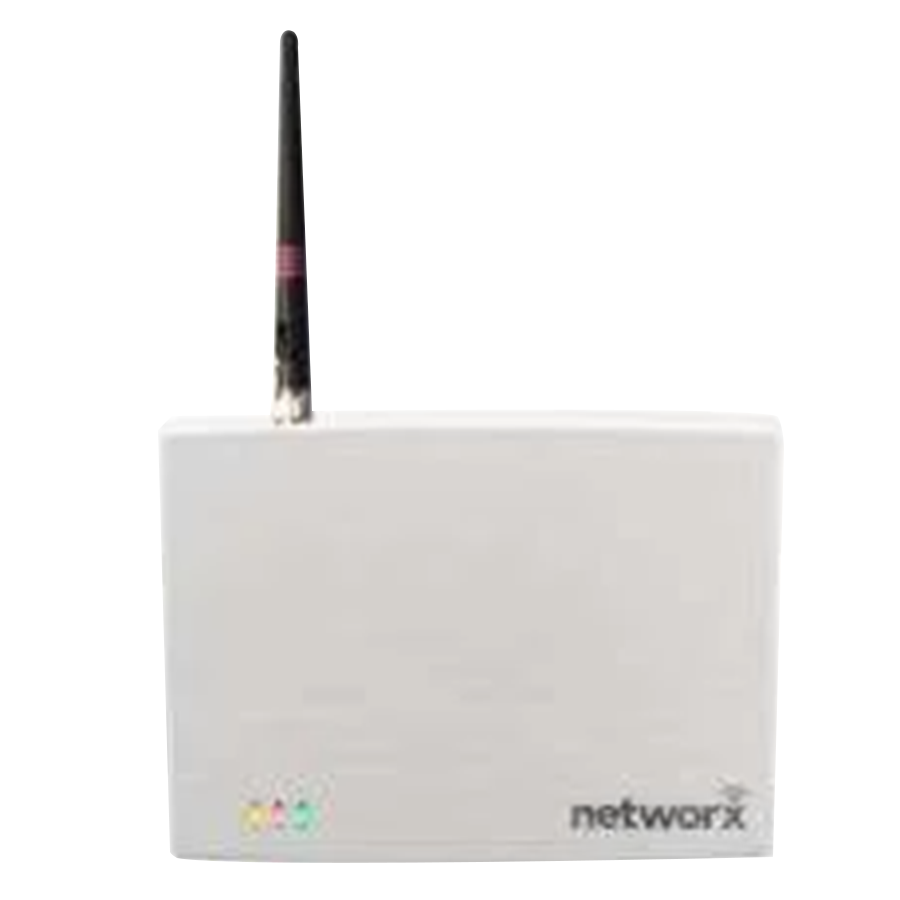

Alarm Lock AL-IME3-POE Generation 3 PoE Gateway

Alarm Lock Systems Inc AL-IME3-POE Generation 3 PoE Gateway is a cutting-edge solution designed to enhance your security and access control capabilities within the Trilogy Networx™ wireless system. This versatile network gateway simplifies installation by utilizing a single RJ-45 Ethernet cable for both communication and power, eliminating the need for additional power supplies or adapters. The AL-IME3-POE allows you to expand your Networx lock system by supporting up to seven wireless expanders, ensuring comprehensive coverage across your building. Each gateway can effectively communicate with a maximum of 99 addressable groups, providing flexibility and efficiency in managing access control. With a robust operating temperature range from -4°F to 140°F, this gateway is built to withstand diverse environments. Designed for ease of use, the system automatically identifies new expanders and optimizes wireless signal pathways. The mounting options are flexible, allowing installation on walls or ceilings, though it is recommended to place expanders 6 to 12 inches below standard ceilings for optimal performance. With advanced features such as 128-bit AES encryption and support for up to 5,000 user codes, the AL-IME3-POE Generation 3 Gateway is an ideal choice for both residential and commercial applications, ensuring secure and seamless access management.

Generation 3 PoE Gateway

The Trilogy Networx is a Gateway device used within the Trilogy Networx™ wireless system. Combines with wireless wall-mounted expanders and plug-in wireless expanders to cover more building space with a single IP address. Installation is simple, only requiring access to one RJ-45 Ethernet network cable for both communication and power.

Features:

• Network gateway for Networx lock systems
• Power-over-Ethernet (POE) gateway – no power supply or adapter needed
• Expand your Networx lock system with up to 7 Expanders (AL-IME2-EXP) – Note expanders cannot communicate with older Gen 1 Gateways
• Mount within 175 feet (radially) from the intended wireless lock location(s)
• Expanders should be mounted in elevated areas – recommended mounting position 6 to 12 in. below standard 8-9 foot ceiling
• Cost-effective and easier to wire than conventional gateways
• Networx system automatically identifies all newly powered Expanders and quickly self-determines the best wireless signal pathways
• Each Gen. 3 Gateway and a maximum of seven (7) Expanders can be addressed as one group
• Total of 99 addressable groups supported (addressable by two rotary switches)
• Open areas increase range while concrete building construction, walls, ceilings and narrow corridors decrease range
• Drop ceiling installation not recommend, signal strength may be affected
• Generation 3 Gateways are compatible with DL-WINDOWS version 5.5.4 and later only
• Generation 3 Gateways can be mixed into an existing system that includes older "non-version 3" gateways
• Optional hardwired switch that connects directly to the gateway to initiate global lockdown

Specifications:

• Dimensions: 4.5 (H) x 6.0 (W) x 1.94 (D) in.
• Ethernet: 100Base-TX (Using RJ-45 Jack), 10Base-T
• Wireless Protocol: DHCP, TCP/IP, UDP/IP
• Power: POE
• Radio Frequency: 900MHz
• Storage Temperature Range: -40° to 185°F (-40° to 85°C)
• Operating Temperature: -4°F – 140°F (-20°C – 60°C)
