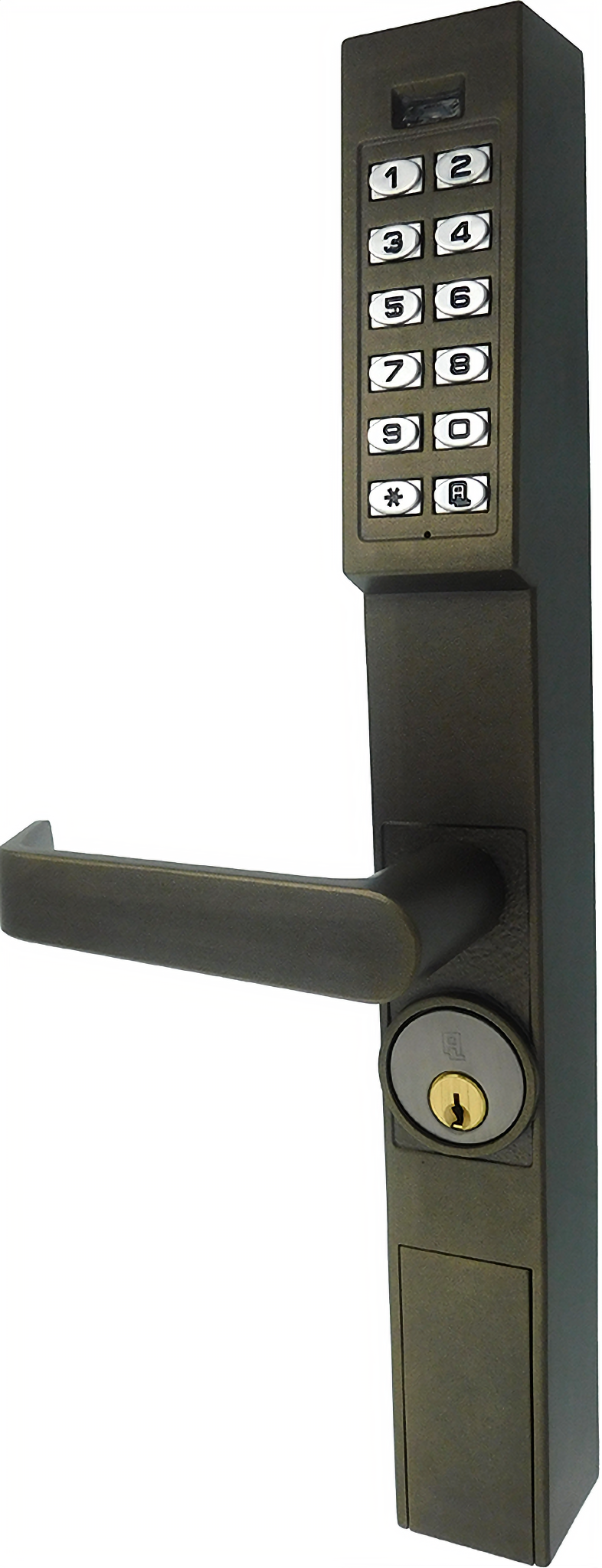

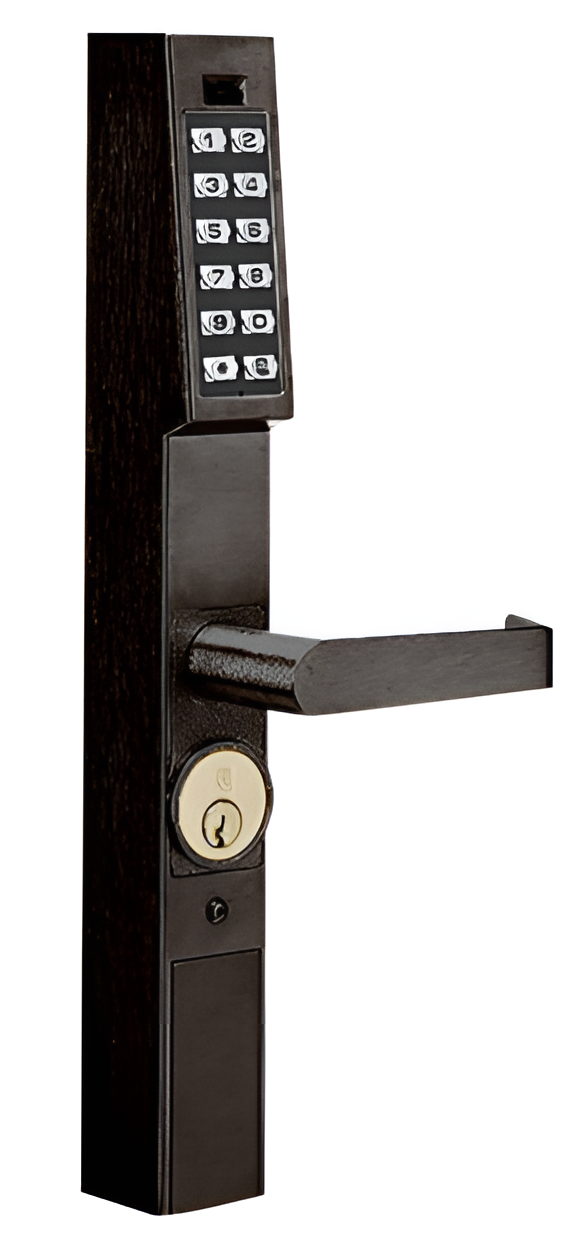

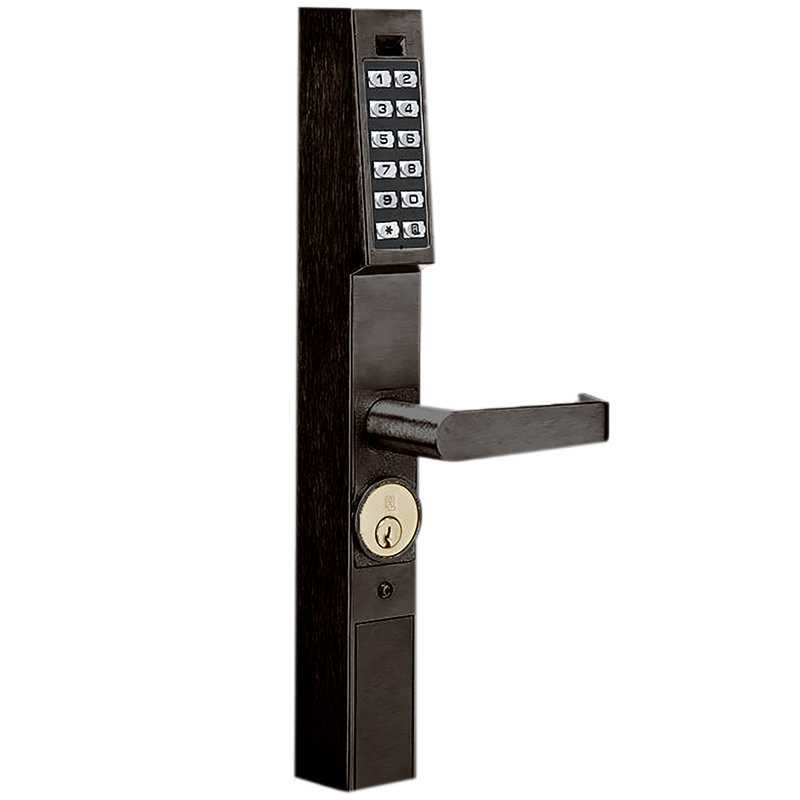

Images may not represent actual product and finish

Alarm Lock DL1200ET/10B Access Control

Your Price: $598.02

Retail Price:$1,166.88

Your Savings:$568.86(49%)

Alarm Lock DL1200ET10B Trilogy Narrow Stile Digital Lock ET Trim Oil Rubbed Bronze Finish

Part Number : ALL_DL1200ET10B

Availability: 79 In Stock

Quantity

Description

Alarm Lock DL1200ET/10B Access Control

Alarm Lock DL1200ET10B Trilogy Narrow Stile Digital Lock ET Trim Oil Rubbed Bronze Finish

Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
DL1200 supports 100 3-6 digit PIN user codes, fingertip programmable
DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
Weatherproof -31 deg. to +151 deg.F (-35 deg. to +66 deg.C)
Long-life, battery- operated for 100,000 and 80,000 cycles respectively, 2 lithium 3V batteries, supplied; low battery alert
Compact styling, 14-3/8"H x 1-5/8"D x 1-3/4"W
Key override mortise cylinder, 1-1/4" supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
Backsets 31/32", 1-1/8" and 1-1/2" ; Stile thickness 1-3/4"
Non-handed; fully field-reversible
Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze
100 3-6 Digit PIN User Codes
Finger Tip Programmable
Battery Operated for 100,000 Cycles
1-1/4" Key Override
Fully Reversible

Attributes

Manufacturer surcharge: $ 0.0

Access Type: Electronic

Alternate Codes: ALADL1200ET/10B LHR, ALADL1200ET/10B RHR, ALADL1200ET/Oil Rubbed Bronze LHR, ALADL1200ET/Oil Rubbed Bronze RHR, DL1200ET/10B, DL1200ET/Oil Rubbed Bronze, DL1200ET10B, DL1200ETOil Rubbed Bronze

Application: CM EL

Backset: 1-1/2", 1-1/8", 31/32"

Base Material: Bronze

Battery Type: Lithium

Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks

Clazz: AL

Code Length: 3-6

Color: Oil Rubbed Bronze

Commercial Residential: Commercial

Communication Technology: Stand Alone

Country of Origin: Dominican_republic

Crossbore Size: 1-1/4" Bore with additional through-bolt holes

Cylinder Type: 6-Pin Cylinder, Mortise

Design: Narrow Stile

Door Application: Access Management

Door Bore Prep: Latch Lockset 1.25in Prep

Door Thickness: 1-3/4"

Feedback: Audible Low Battery Alert, Audible & Visible Entry Indicator

Finish: Oil Rubbed Bronze

Finish Code: US10B

Finish Color: Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Finish Family: Dark Bronze

Function: Keyless Entry, Key Override

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Item Class Description: Trilogy Narrow Stile Digital Lock ET Trim

Item Type Keyword: Digital

Keypad Type: Electronic

Keyway: Schlage C

Knob/ Lever Style: Lever

Latchbolt Type: Deadlatch

Lever Design: Standard

Limited Warranty: 2 Years

Lock Category: Exit Device Trim, Narrow Stile Locks

Lock Platform: Exit Device Trim

Manufacturer: Alarm Lock Systems Inc

Material: Zinc Alloy

Number Of Inners: 1

Number Of Pins: 6 pin

Pack Height: 2.25"

Pack Length: 17.5"

Pack Qty: 1

Pack Volume: 388.83 in³

Pack Width: 9.88"

Power: Lithium 3V

Power Supply Type: Battery

Product Dimension: 1-3/4" x 14-3/8"

Programmer: Optional

Prop65: N

Proximity Format: Keypad

Reader Technology: Keypad Only

Series: P/DL1200, Trilogy

Series Name: Trilogy

Ship Weight: 6.5 lbs.

Software: Optional

Subtype: Electronic Locksets

Trim Option: Lever Trim

Type: Electronics

Unit of Measure: Each

Users: 100

Voltage: 2 3V

Weatherproof: Yes
