Alarm Lock DL1300/10B1 Access Control

Your Price: $725.71

Retail Price:$1,416.02

Your Savings:$690.31(49%)

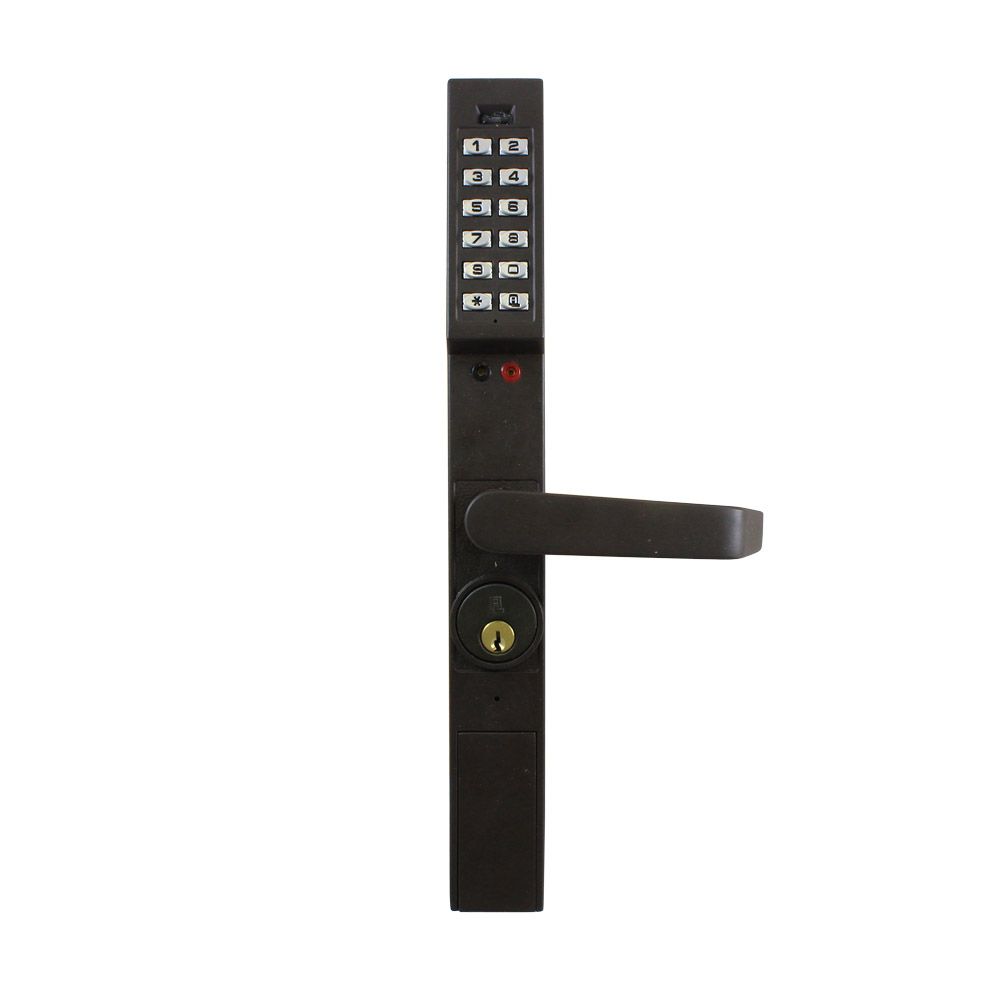

Alarm Lock DL130010B1 Trilogy Narrow Stile Digital Lever Lock Oil Rubbed Bronze Finish

Part Number : ALL_DL130010B1

Availability: 70 In Stock

Quantity

Description

Alarm Lock DL1300/10B1 Access Control

Alarm Lock DL130010B1 Trilogy Narrow Stile Digital Lever Lock Oil Rubbed Bronze Finish

Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
Add keyless convenience to mechanical latch locks from Trilogy's all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
DL1200 supports 100 3-6 digit PIN user codes , fingertip programmable
DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
Weatherproof -31 deg. to +151 deg.F (-35 deg. to +66 deg.C)
Long-life, battery- operated for 100,000 and 80,000 cycles respectively, on 2 lithium 3V batteries, supplied; low battery alert
Compact styling 14-3/8"H x 1-5/8"D x 1-3/4"W
Key override mortise cylinder, 1-1/4" supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
Backsets 31/32",1-1/8" and 1-1/2" ; Stile thickness 1-3/4"
Non-handed; fully field-reversible
Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze
Retrofit Outside Trim
2000 PIN User Codes
40,000 Event Audit Trail By User
Batter Operated for 80,000 Cycles
1-1/4" Key Override Mortise Cylinder

Attributes

Manufacturer surcharge: $ 0.0

Access Function: Software Programmable

Access Type: Electronic

Alternate Codes: 144010, ALADL130010B1, ALADL1300Oil Rubbed Bronze1, DL1300/10B1, DL1300/Oil Rubbed Bronze1, DL130010B, DL130010B1, DL1300Oil Rubbed Bronze, DL1300Oil Rubbed Bronze1

Application: CM EL

Audit Trail: 40000 Events

Backset: 1-1/2", 1-1/8", 31/32"

Base Material: Bronze

Battery Type: 5x, AA

Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks

Clazz: AL

Code Length: 3-6

Color: Oil Rubbed Bronze

Commercial Residential: Commercial

Communication Technology: Stand Alone

Compatibility: Adams Rite 4710, Adams Rite 4730, Adams Rite 4900

Country of Origin: Dominican_republic

Crossbore Size: 1-1/4" Bore with additional through-bolt holes

Cylinder Type: 6-Pin Cylinder, Mortise

Design: Narrow Stile

Door Application: Access Management

Door Bore Prep: Latch Lockset 1.25in Prep

Door Thickness: 1-3/4"

Feedback: Audible Low Battery Alert, Audible & Visible Entry Indicator

Finish: Oil Rubbed Bronze

Finish Code: US10B

Finish Color: Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Finish Family: Dark Bronze

Function: Keyless Entry, Key Override

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Item Class Description: Trilogy Narrow Stile Digital Lever Lock

Item Type Keyword: Digital

Keypad Type: Electronic

Keyway: Schlage C

Knob/ Lever Style: Lever

Latchbolt Type: Deadlatch

Lever Design: Standard

Limited Warranty: 2 Years

Lock Category: Narrow Stile Locks

Lock Platform: Narrow Stile Trim Latch

Manufacturer: Alarm Lock Systems Inc

Material: Zinc Alloy

Number Of Inners: 1

Number Of Pins: 6 pin

Pack Height: 2.25"

Pack Length: 17.5"

Pack Qty: 1

Pack Volume: 388.83 in³

Pack Width: 9.88"

Power: Lithium 3V

Power Supply Type: Battery

Product Dimension: 1-3/4" x 14-3/8"

Programmer: Optional

Prop65: N

Proximity Format: Keypad

Reader Technology: Keypad Only

Series: P/DL1300, Trilogy

Series Name: Trilogy

Ship Weight: 6.5 lbs.

Software: Optional

Subtype: Electronic Locksets

Trim Option: Lever Trim

Type: Electronics

Unit of Measure: Each

Users: 2000

Voltage: 2 3V

Weatherproof: Yes
