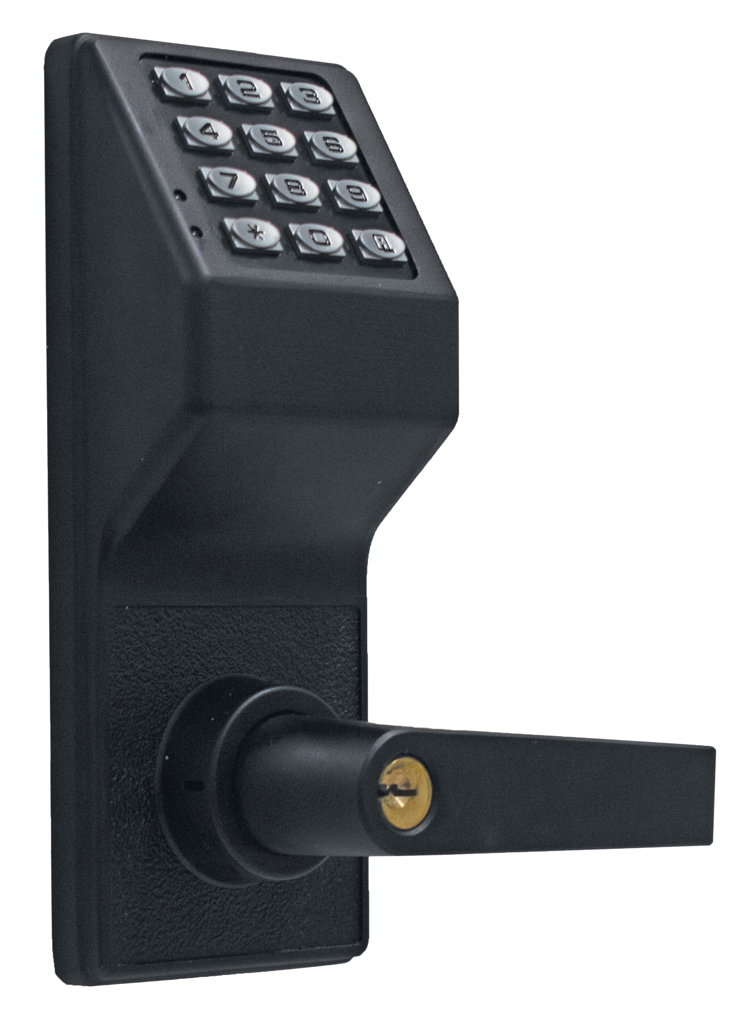

Alarm Lock DL2700/19 Trilogy Electronic Lock, 100 Users, 12 Button Keypad, Weather-Proof, Matte Black

Alarm Lock Systems Inc DL2700/19 Trilogy Electronic Lock offers advanced security with a robust design tailored for both commercial and residential applications. This Grade 1 lockset features a durable, vandal-proof metal keypad with 12 buttons, allowing for up to 100 users, including multi-level access capabilities with master and manager codes. The clutch mechanism enables the lever to turn freely without retracting the latch, minimizing wear and tear while ensuring easy access through code entry or key bypass. Designed to fit doors with a thickness of 1-5/8" to 1-7/8", the DL2700/19 accommodates standard backsets of 2-3/4" or 2-3/8". Included are solid brass key override cylinders and a UL-listed latchbolt, providing reliable deadlocking with a 1/2" throw. The lock also boasts adjustable features for flat or beveled doors and comes equipped with 5 AA alkaline batteries that last for up to 120,000 cycles, along with audible low-battery alerts. With an aesthetically pleasing matte black finish (US19), this lock not only guarantees security but also complements a variety of door styles. Compliant with ADA standards, the DL2700/19 ensures easy usability without compromising on safety or functionality.

Trilogy Electronic Lock, Up to 100 Users, 12 Button Metal Keypad, Weather-Proof, 622/US19 Matte Black

Our most popular keypad door lock – now with more codes & power! Grade 1 Durability and a dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad. Has Multi-level codes Master, 10 managers, 90 users, 3 service codes. 100 Total users.

Features:

• Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
• Door Thickness: 1-5/8" to 1-7/8" Other thicknesses may be available special order.
• Backset:
• 2-3/4" Standard.
• 2-3/8" backset also available.
• Keypad: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
• Standard Key Override Cylinders: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
• Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core Models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
• Latchbolt: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
• Strike: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
• Latch Front: 1-1/8" x 2-1/4" wrought brass or stainless steel.
• Handing: Non-handed.
• Power: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive" motor.
• Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• Compliances: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
• Note: Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core Models. Must Specify 7 Pin for Corbin and Yale

Series Models:

Finishes:

• US3 - Polished brass
• US26D - Satin chrome
• US26 - Polished chrome
• US5 - Antique brass
• 10B - Duranodic
