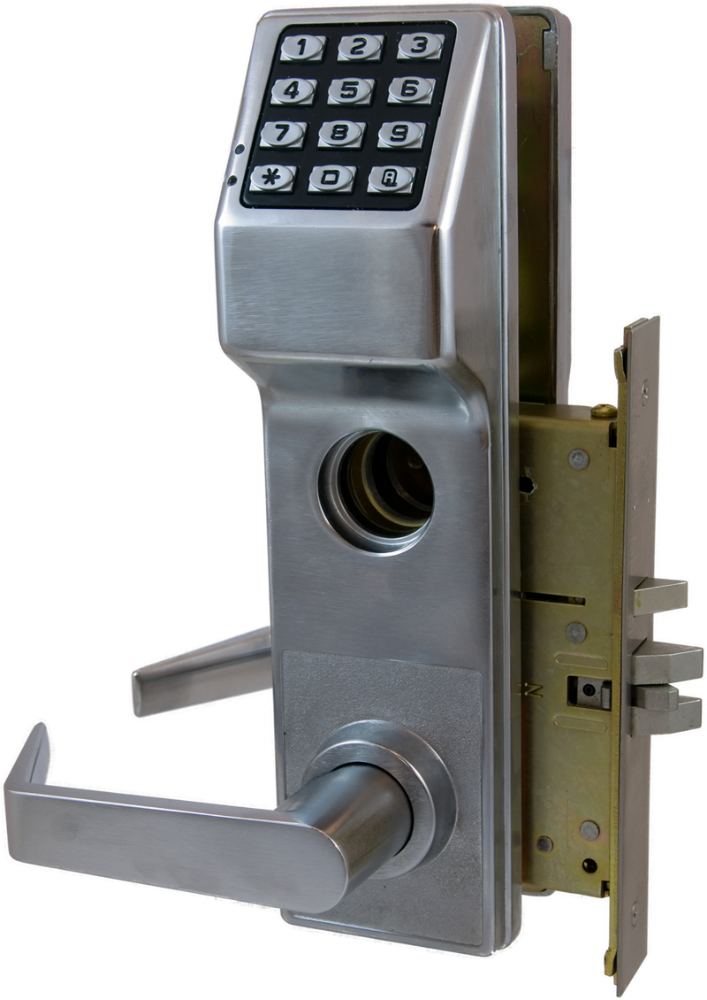

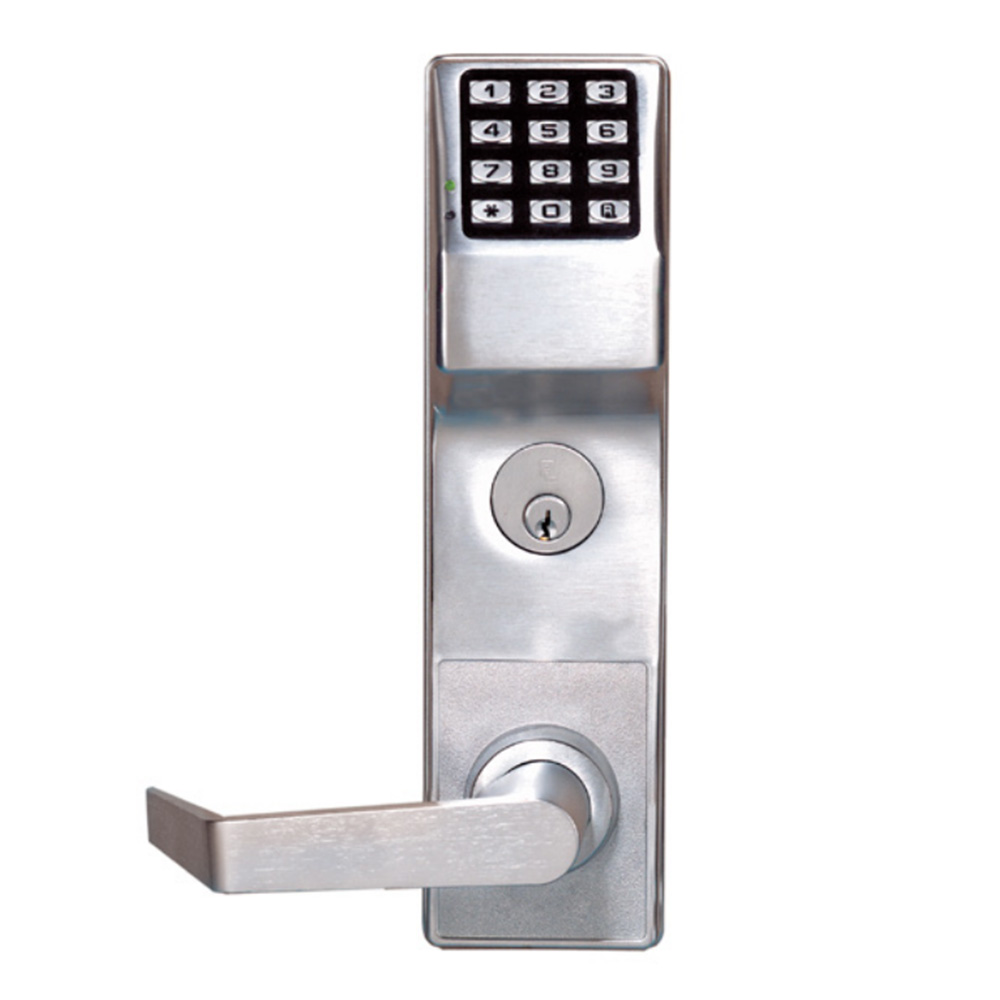

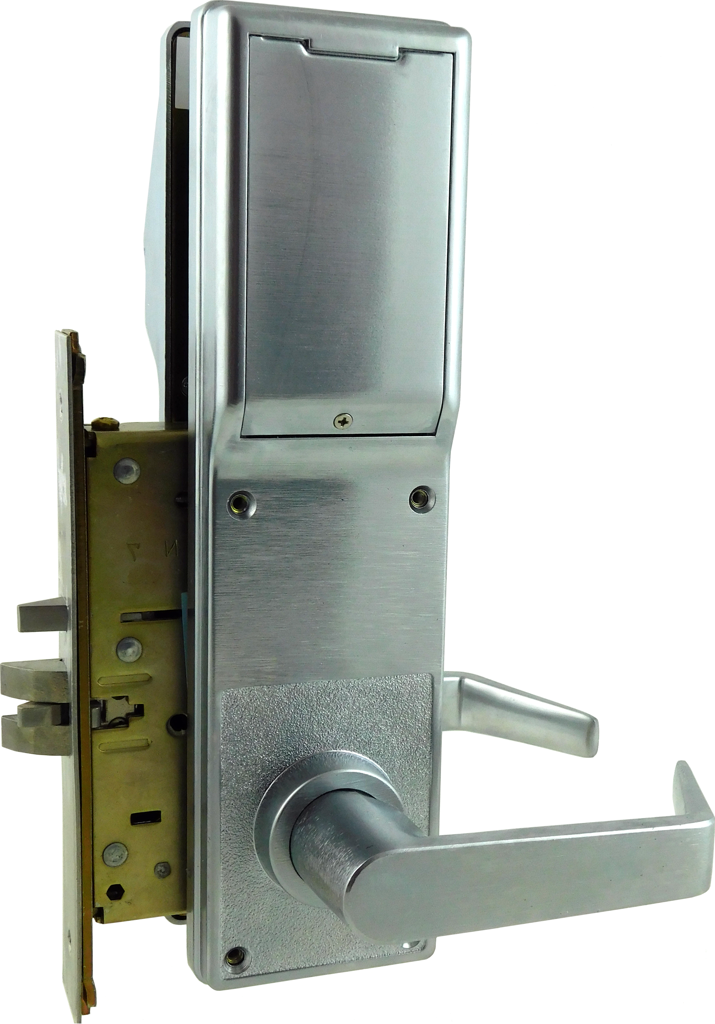

Alarm Lock DL2700CRL/26D Trilogy Electronic Classroom Mortise Lock, Left Hand, Satin Chrome

Alarm Lock DL2700CRL26D Non-Weatherized Left Hand Trilogy Electronic Digital Classroom Mortise Lever Lock offers a robust security solution for educational and commercial environments. Crafted from solid steel and featuring a satin chrome finish, this durable lock combines functionality with an attractive aesthetic. The mortise chassis design ensures a seamless integration into a variety of door types, accommodating thicknesses from 1-5/8" to 1-7/8". Equipped with a digital keypad, the DL2700CRL26D allows for multi-level user codes and one-time service codes, enhancing access control while enabling free passage or total lock-out features. The reversible handing makes installation flexible, catering to both left and right-hand doors. With a typical battery life of 150,000 cycles powered by 5 AA batteries, this lock minimizes maintenance while providing peace of mind. Designed for safety, this model is fire-rated and includes a Schlage C keyway for added security. The lock's dimensions of 3-1/4" x 8-1/4" are optimal for standard installations. Backed by a limited 2-year warranty, the Alarm Lock DL2700CRL26D is a reliable choice for those looking to elevate their security measures in any facility.

Non-Weatherized Left Hand Trilogy Electronic Digital Classroom Mortise Lever Lock Satin Chrome Finish

For four decades Alarm Lock Systems has built a strong reputation as a respected leader in the design and manufacture of electronic and mechanical access and egress control keyless entry products. Originally known worldwide for its superior Sirenlock panic exit and delayed egress exit alarms in full-door and clapper styles, Alarm Lock has nearly eclipsed its original product success with that of another -- the incredibly-popular, innovative Trilogy line of standalone access keyless locks that enable security professionals securing buildings of all kinds to more cost-effectively add dependable wireless access control a door at a time with a field-proven access solution and with a consistent model for every door type in a facility.

• OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
• DOOR THICKNESS: 1-5/8" to 1-7/8" Other thicknesses may be available special order.
• BACKSET:
• 2-3/4" Standard.
• 2-3/8" backset also available.
• KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
• STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
• INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
• LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
• STRIKE: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
• LATCH FRONT: 1-1/8" x 2-1/4" wrought brass or stainless steel.
• HANDING: Non-handed.
• POWER: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive" motor.
• DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
• Constructed from Solid Steel
• Reversible Handing
• Multi-Level User Codes and One-Time Service Codes
• Free Passage, Group or Total Lock-Out Codes
• Typical 150,000 Cycle Battery Life
