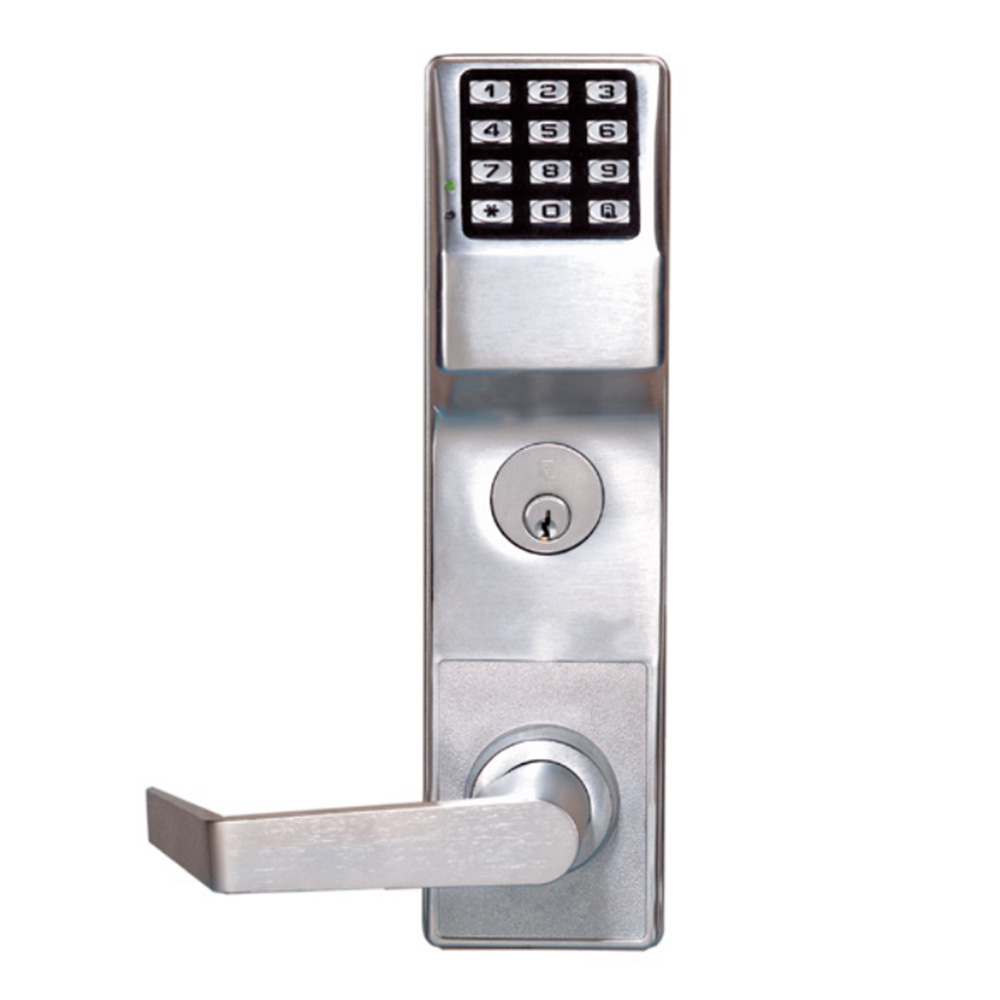

Alarm Lock DL2700CRR/26D Trilogy Electronic Classroom Mortise Lever Lock, Right Hand, Satin Chrome

Alarm Lock DL2700CRR26D Non-Weatherized Right Hand Trilogy Electronic Digital Classroom Mortise Lever Lock offers a reliable solution for enhancing access control in educational and commercial environments. Crafted from solid steel with a satin chrome finish, this lock combines durability with a sleek aesthetic, making it an excellent choice for modern facilities. Designed for right-handed doors, the DL2700CRR26D features reversible handing, allowing for versatile installation. It supports multi-level user codes along with one-time service codes, providing secure and flexible access management. The free passage option and group or total lock-out codes further enhance its usability, making it ideal for classroom settings. With a typical battery life of 150,000 cycles powered by five AA batteries, this electronic lock ensures long-term functionality. The mortise chassis and 2-1/8" crossbore size make installation straightforward, while its compatibility with door thicknesses ranging from 1-5/8" to 1-7/8" adds to its versatility. Additionally, this fire-rated lock meets UL10C standards, assuring compliance with safety regulations. The Alarm Lock DL2700CRR26D is backed by a limited two-year warranty, providing peace of mind with your investment in security solutions.

Non-Weatherized Right Hand Trilogy Electronic Digital Classroom Mortise Lever Lock Satin Chrome Finish

For four decades Alarm Lock Systems has built a strong reputation as a respected leader in the design and manufacture of electronic and mechanical access and egress control keyless entry products. Originally known worldwide for its superior Sirenlock panic exit and delayed egress exit alarms in full-door and clapper styles, Alarm Lock has nearly eclipsed its original product success with that of another -- the incredibly-popular, innovative Trilogy line of standalone access keyless locks that enable security professionals securing buildings of all kinds to more cost-effectively add dependable wireless access control a door at a time with a field-proven access solution and with a consistent model for every door type in a facility.

• OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
• DOOR THICKNESS: 1-5/8" to 1-7/8" Other thicknesses may be available special order.
• BACKSET:
• 2-3/4" Standard.
• 2-3/8" backset also available.
• KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
• STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
• INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
• LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
• STRIKE: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
• LATCH FRONT: 1-1/8" x 2-1/4" wrought brass or stainless steel.
• HANDING: Non-handed.
• POWER: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive" motor.
• DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
• Constructed from Solid Steel
• Reversible Handing
• Multi-Level User Codes and One-Time Service Codes
• Free Passage, Group or Total Lock-Out Codes
• Typical 150,000 Cycle Battery Life
