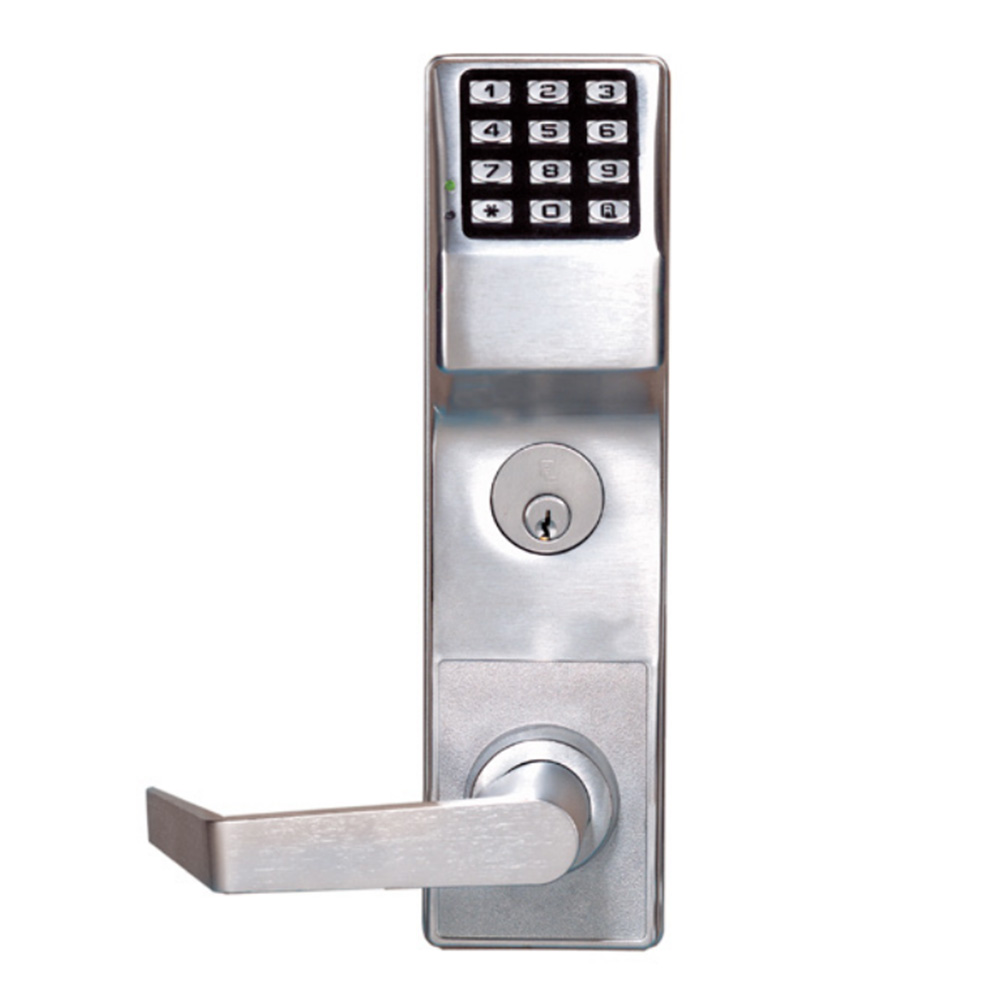

Alarm Lock DL2700DBL/26D Left Hand Trilogy Electronic Digital Deadbolt Lever Lock Satin Chrome Finish

Your Price: $993.59

Retail Price:$1,744.35

Your Savings:$750.76(43%)

The Alarm Lock DL2700DBL/26D is a durable, weatherproof keypad mortise lock with 100 user codes and Grade 1 security.

Part Number : ALL_DL2700DBL26D

Availability: 37 In Stock

Quantity

Description

Alarm Lock DL2700DBL/26D Left Hand Trilogy Electronic Digital Deadbolt Lever Lock Satin Chrome Finish

Alarm Lock DL2700DBL26D Left Hand Trilogy Electronic Digital Deadbolt Lever Lock Satin Chrome Finish

OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
DOOR THICKNESS: 1-5/8" to 1-7/8" Other thicknesses may be available special order.
BACKSET:
2-3/4" Standard.
2-3/8" backset also available.
KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
STRIKE: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
LATCH FRONT: 1-1/8" x 2-1/4" wrought brass or stainless steel.
HANDING: Non-handed.
POWER: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive" motor.
DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
Constructed from Solid Steel
Reversible Handing
Multi-Level User Codes and One-Time Service Codes
Free Passage, Group or Total Lock-Out Codes
Typical 150,000 Cycle Battery Life

Attributes

Access Type: Electronic, Standalone

Alternate Codes: ALADL2700DBL26D, DL2700DBL/26D, DL2700DBL26D

Backset: 2-3/4"

Battery Type: 5x, AA

Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks

Certifications: ADA, FCC, UL Listed

Code Length: 3-6

Communication Technology: Stand Alone

Cylinder Type: Knob/Lever Cylinder

Design: Digital Keypad

Door Application: Access Management

Door Bore Prep: ANSI 161 Series Prep

Door Thickness: 1-5/8"-1-7/8"

Feedback: Audible Low Battery Alert, Audible & Visible Entry Indicator

Finish: Satin Chrome

Finish Code: US26D

Finish Color: Satin Chrome

Fire Rated: Yes

Fire Rating: 180 min

Function: Deadbolt

Grade: Grade 1

Handing: Left Handed

Keypad Type: 12 Button

Knob/ Lever Style: Lever

Latch Throw: 1/2"

Latchbolt Type: Deadlatch

Lever Design: Standard

Lock Category: Mortise Lock

Manufacturer: Alarm Lock Systems Inc

Power Supply Type: Battery

Series: DL2700, Trilogy T2

Strike: 1-1/8" x 2-3/4" T-Strike, 1-1/4" x 4-7/8" ASA Strike

Strike Type: ASA Strike, T-Strike

Subtype: Electronic Locksets

Type: Electronics

Users: 100 User Codes

Voltage: 5 AA

Weatherproof: No
