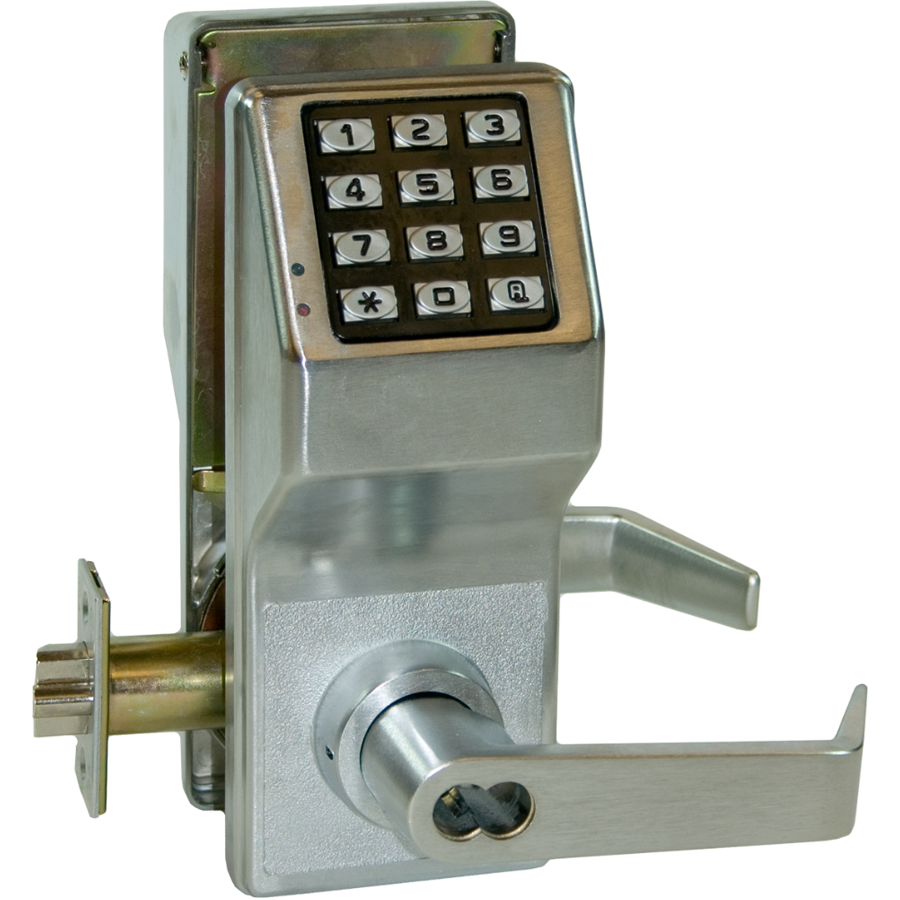

Alarm Lock DL2700IC/26D-M Trilogy T2 Keypad Lock, Medeco LFIC Prep, 100 Users, Satin Chrome

Alarm Lock Systems Inc DL2700IC/26D-M Trilogy T2 Keypad Cylindrical Standalone Lock combines robust security features with enhanced usability. This Grade 1 lockset is designed to accommodate up to 100 users, making it ideal for high-traffic commercial areas. The durable all-metal keypad is vandal-proof and supports multi-level access with master, manager, and user codes, ensuring flexibility in access management. The lock operates on a reliable clutch mechanism, allowing the lever to turn without retracting the latch, which reduces wear on the lock body. With both key bypass and programmable access codes, users can enjoy convenient entry while maintaining security. The latchbolt is UL listed and fire-rated for up to 180 minutes, adding an additional layer of safety. Fitting doors with a thickness of 1-5/8" to 1-7/8", the DL2700IC/26D-M is compatible with various backsets, including standard 2-3/4" and optional 2-3/8". Powered by five AA alkaline batteries, it boasts an impressive cycle rating of 120,000, along with low battery alerts and visual indicators for ease of use. Available in a sleek satin chrome finish (US26D), this lockset is both aesthetically pleasing and functionally robust, making it a reliable choice for any security application.

Trilogy T2 Keypad Cylindrical Standalone Lock, Medeco LFIC Prep, 100 Users, No Audit or Scheduled Events, 626/US26D Satin Chrome

Our most popular keypad door lock – now with more codes & power! Grade 1 Durability and a dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad. Has Multi-level codes Master, 10 managers, 90 users, 3 service codes. 100 Total users.

Features:

• Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
• Door Thickness: 1-5/8" to 1-7/8" Other thicknesses may be available special order.
• Backset:
• 2-3/4" Standard.
• 2-3/8" backset also available.
• Keypad: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
• Standard Key Override Cylinders: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
• Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core Models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
• Latchbolt: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
• Strike: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
• Latch Front: 1-1/8" x 2-1/4" wrought brass or stainless steel.
• Handing: Non-handed.
• Power: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive" motor.
• Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• Compliances: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
• Note: Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core Models. Must Specify 7 Pin for Corbin and Yale

Series Models:

Finishes:

• US3 - Polished brass
• US26D - Satin chrome
• US26 - Polished chrome
• US5 - Antique brass
• 10B - Duranodic
