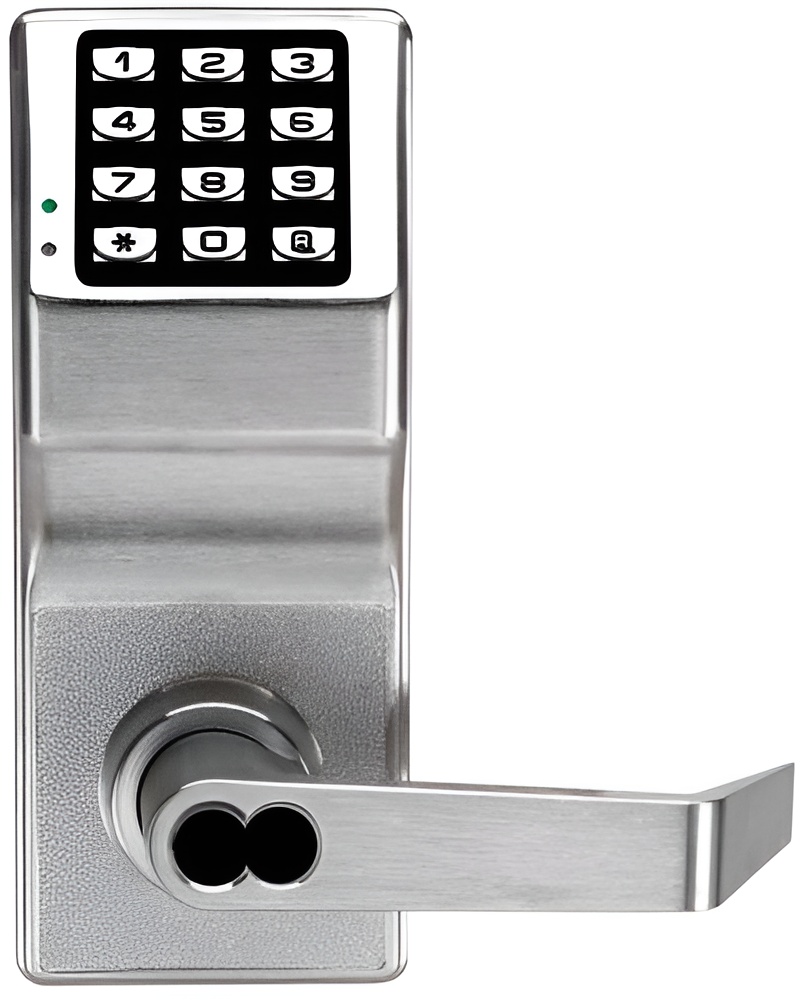

Alarm Lock DL2700IC/26D-Y Trilogy Electronic Digital Lever Lock, Interchangeable Core, Satin Chrome

Alarm Lock DL2700IC26DY Non-Weatherized Trilogy Electronic Digital Lever Lock with Interchangeable Core for Yale Prep Satin Chrome Finish combines security and convenience in a sleek design. This durable lock is crafted from solid steel and features a satin chrome finish, making it suitable for various commercial settings. With reversible handing, it accommodates diverse door configurations, while its digital keypad allows for effortless access control. Equipped with multi-level user codes and one-time service codes, the DL2700IC26DY enhances security by offering free passage, group, or total lock-out codes, ensuring flexible access management. Designed to withstand daily use, this lock boasts a typical battery life of 150,000 cycles powered by five AA batteries, making it a reliable choice for busy environments. The lock is compatible with door thicknesses ranging from 1-5/8" to 1-7/8" and features a cylindrical chassis with a 2-1/8" crossbore size, along with additional through-bolt holes for easy installation. It is UL10C fire rated, ensuring safety compliance. Backed by a limited 2-year warranty, the Alarm Lock DL2700IC26DY is an excellent investment for those seeking a robust and efficient electronic locking solution.

Non-Weatherized Trilogy Electronic Digital Lever Lock with Interchangeable Core for Yale Prep Satin Chrome Finish

For four decades Alarm Lock Systems has built a strong reputation as a respected leader in the design and manufacture of electronic and mechanical access and egress control keyless entry products. Originally known worldwide for its superior Sirenlock panic exit and delayed egress exit alarms in full-door and clapper styles, Alarm Lock has nearly eclipsed its original product success with that of another -- the incredibly-popular, innovative Trilogy line of standalone access keyless locks that enable security professionals securing buildings of all kinds to more cost-effectively add dependable wireless access control a door at a time with a field-proven access solution and with a consistent model for every door type in a facility.

• OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
• DOOR THICKNESS: 1-5/8" to 1-7/8" Other thicknesses may be available special order.
• BACKSET:
• 2-3/4" Standard.
• 2-3/8" backset also available.
• KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
• STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
• INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
• LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
• STRIKE: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
• LATCH FRONT: 1-1/8" x 2-1/4" wrought brass or stainless steel.
• HANDING: Non-handed.
• POWER: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive" motor.
• DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
• Constructed from Solid Steel
• Reversible Handing
• Multi-Level User Codes and One-Time Service Codes
• Free Passage, Group or Total Lock-Out Codes
• Typical 150,000 Cycle Battery Life

Resources

• Cut Sheet
