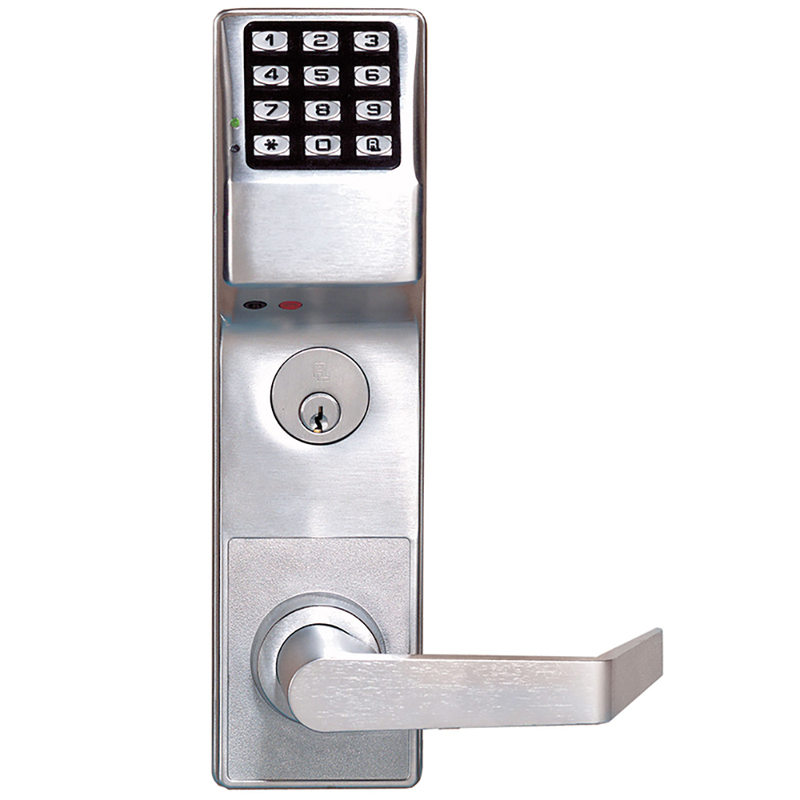

Alarm Lock DL3500CRL US26D Trilogy T3 Mortise Lock

Alarm Lock DL3500CRL US26D Trilogy T3 Mortise Lock is a sophisticated pushbutton classroom mortise lock designed for high security and efficient access control. Capable of managing up to 300 user codes, including master, manager, supervisor, and basic users, this lock is both versatile and user-friendly. Its fingertip or Windows PC programmability allows for seamless integration with existing systems, while the real-time clock enables scheduling of up to 500 events, including holiday schedules. Equipped with a robust 40,000 event audit trail, the lock provides a time/date-stamped log of all electronic activity, ensuring comprehensive security oversight. The long-life battery pack supports approximately 80,000 cycles and features a low-battery alert, minimizing maintenance concerns. The lock is adaptable to either classroom or deadbolt functions and can be configured for left or right-hand installation, further enhancing its usability. Weatherproof and operational in temperatures ranging from -31°F to +151°F, the lock is suitable for various environments. With a sleek satin chrome finish and Grade 1 security rating, the Alarm Lock DL3500CRL is an ideal solution for commercial applications, combining durability with advanced technology for reliable access management.

Trilogy T3 Mortise Lock

Pushbutton Classroom Mortise Lock, 300 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, Left Hand or Right Hand Reverse, Satin Chrome

Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes: Master, manager, supervisor & basic users Fingertip or Windows PC-programmable Real time clock enables up to 500 scheduled events and holiday schedules 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity Long-life battery pack for 80,000 cycles, typ. and low-battery alert Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.) 1 3/8 In. (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or prox enroller tool 40,000 event audit trail log 500 scheduled events, e.g., lock or unlock PC programming/reporting Quick passage mode (without being in program mode) Program data transferred to lock via AL-PCI2 or AL-DTMIII 5AA battery-pak operated; 75,000 cycles, typ. 5 Architectural finishes Weatherproof -31 Deg. to +151 Deg. F (-35 Deg. to +66 Deg. C)

Trilogy Mortise: High security digital locks.

 Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes.

• 300 User codes: Master, manager, supervisor & basic users
• Fingertip or Windows PC-programmable
• Real time clock enables up to 500 scheduled events and holiday schedules
• 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
• Long-life battery pak for 80,000 cycles, typical and low-battery alert
• Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
• 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
• 40,000 event audit trail log
• 500 scheduled events, e.g., lock or unlock
• PC programming/reporting
• Quick passage mode (without being in program mode)
• Program data transferred to lock via AL-PCI2 or AL-DTMIII
• 5AA battery-pak operated; 75,000 cycles, typical
• 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)

Resources

• DL3500 & DL3500EX Programming Instructions
• DL3500 Door Template
• EC Declaration of Conformity for the DL3500 Series Mortise Lock
• UL Single-Point Locks or Latches - Model DL3500
• UL Single-Point Locks or Latches Certified For Canada - Model DL3500
• What's in the Box? DL3500CR
