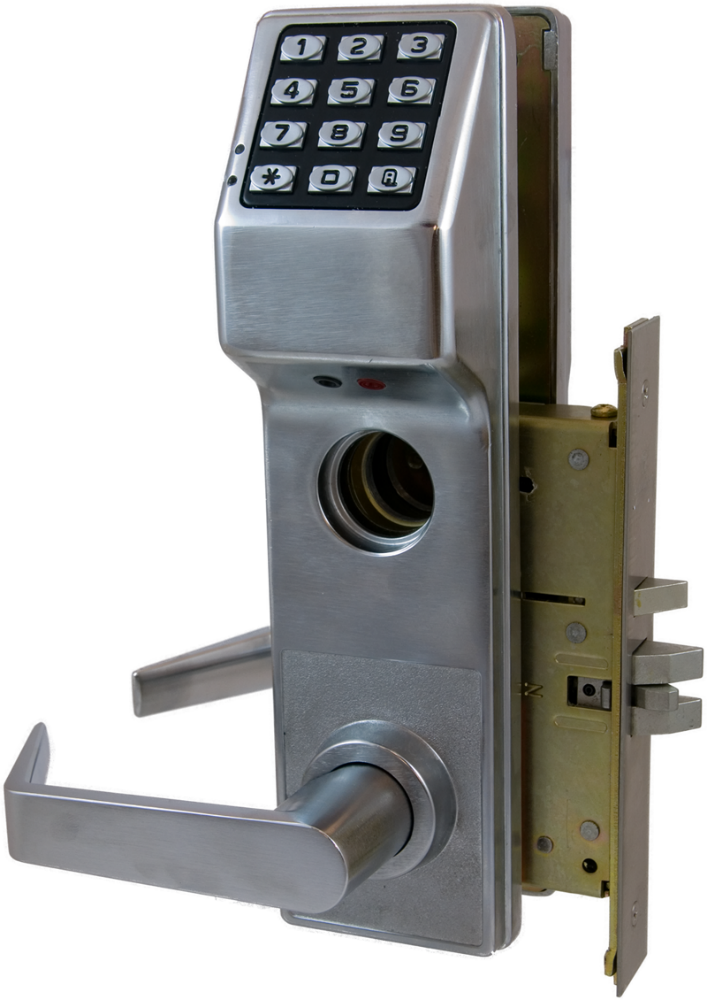

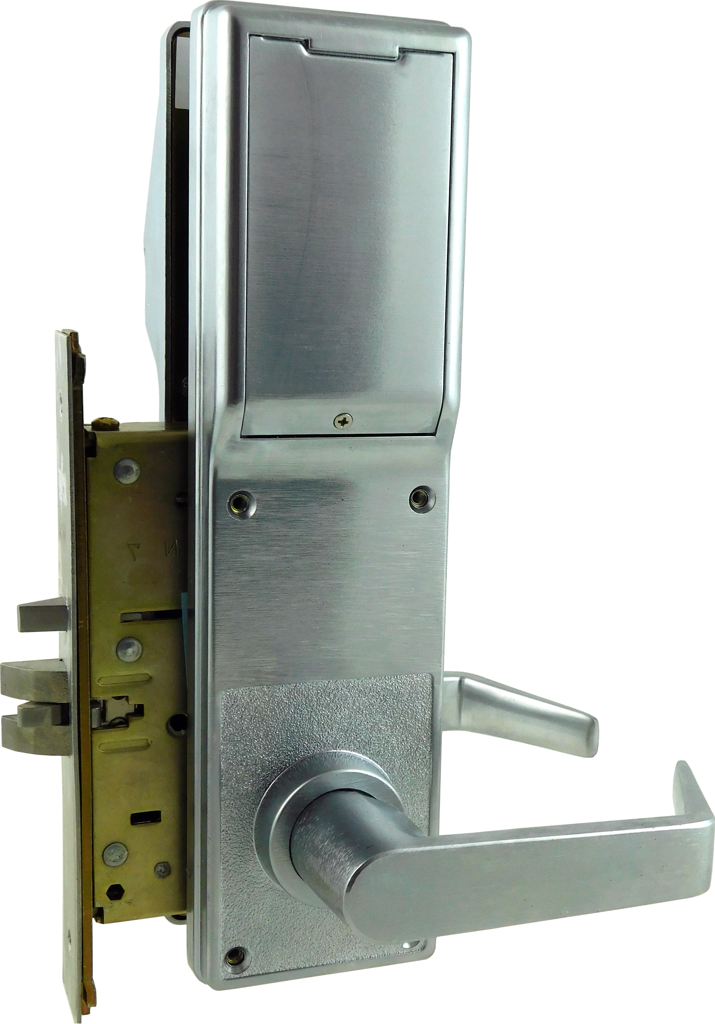

Alarm Lock DL3500CRR/26D Trilogy T3 Keypad Mortise Lock, Right Hand, Weather Proof, Satin Chrome

Alarm Lock Systems Inc DL3500CRR/26D Trilogy T3 Keypad Mortise Standalone Lock offers a robust solution for secure access management in both commercial and residential settings. Designed for right-handed doors, this weather-resistant lock features a durable all-metal 12-button keypad, allowing for easy programming of up to 300 user codes, including master and supervisor levels. With a solid construction that meets BHMA Grade 1 specifications and UL listed to the 10C Positive Pressure Specification, this lock is built for reliability. The stainless steel latchbolt boasts a 3/4" projection, ensuring a secure deadlocking mechanism. It accommodates door thicknesses ranging from 1-3/8" to 1-7/8" and features a standard 2-3/4" backset for easy installation. Equipped with a real-time clock, the DL3500CRR provides a comprehensive 40,000 event audit trail and supports 150 scheduled events, making it an excellent choice for facilities that require detailed access logs. Powering the lock is straightforward with five included AA alkaline batteries, ensuring consistent performance. The satin chrome finish adds a sleek aesthetic, blending seamlessly with any décor. Choose the DL3500CRR for its combination of security, functionality, and style.

Trilogy T3 Keypad Mortise Standalone Lock, Right Hand (Field Reversible), Deadlatch Only, Weather Proof, 1-3/8in Mortise Cylinder, Schlage C Keyway, 300 Users, 40,000 Event Audit Trail and 150 Scheduled Events, 626/US26D Satin Chrome

Electronic battery operated digital mortise lock. Holds up to 300 codes, Master, Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail.

Specifications:

• Door Thickness: Fits 1-3/8" to 1-7/8" (4.46cm).
• Backset: 2-3/4" standard
• Strike: 1-1/4" x 4-7/8" Strike included
• Handing: Specify RH or LH when ordering, lock is reversible In the field
• Power: 5 AA alkaline batteries (included)
• Keypad: All metal, 12 button. All functions programmed through Keypad.
• Door Prep: Standard ANSI A115 Mortise Prep, modified by adding additional through-bolt holes
• Compliances: Steelcase lock body meets BHMA Specifications for Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA compliant levers
• Functions: Classroom function feature stainless steel Latchbolt with 3/4" (1.91cm) projection and deadlocking latch
• Cylinder: Schlage C
• 1-3/8" (3.5cm) mortise cylinder supplied.
• Will Accept 1-3/8" to 1-1/2" (3.5 – 3.82cm) mortise cylinder.
• Classroom function supplied with straight Cam and deadbolt function supplied with cloverleaf cam
• Cams: Cams for other manufacturer's cylinders are available see "Mortise Lock accessories" for part numbers & manufacturers
• All DL3500 Mortise Locks are Weather-Resistant
• Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially Prepped IC Core Models.
• Must Specify 7 Pin for Corbin and Yale

Series Models:

Finishes:

• US26D - Satin chrome
• US3 - Polished brass
• US10B - Duranodic

Features

• All DL3500 Mortise Locks are Weather-Resistant
• Handing: Specify RH or LH when ordering, lock is reversible In the field
• 1-3/8" (3.5cm) mortise cylinder supplied.
• Cylinder: Schlage C
• Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially Prepped IC Core Models.
• Classroom function supplied with straight Cam and deadbolt function supplied with cloverleaf cam
• Door Thickness: Fits 1-3/8" to 1-7/8" (4.46cm).
• Compliances: Steelcase lock body meets BHMA Specifications for Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA compliant levers
• Must Specify 7 Pin for Corbin and Yale
• Backset: 2-3/4" standard
• Strike: 1-1/4" x 4-7/8" Strike included
• Keypad: All metal, 12 button. All functions programmed through Keypad.
• Door Prep: Standard ANSI A115 Mortise Prep, modified by adding additional through-bolt holes
• Will Accept 1-3/8" to 1-1/2" (3.5 – 3.82cm) mortise cylinder.
• Power: 5 AA alkaline batteries (included)
• Functions: Classroom function feature stainless steel Latchbolt with 3/4" (1.91cm) projection and deadlocking latch
• Cams: Cams for other manufacturer's cylinders are available see "Mortise Lock accessories" for part numbers & manufacturers

Resources

• Cut Sheet
• Installation Guide
