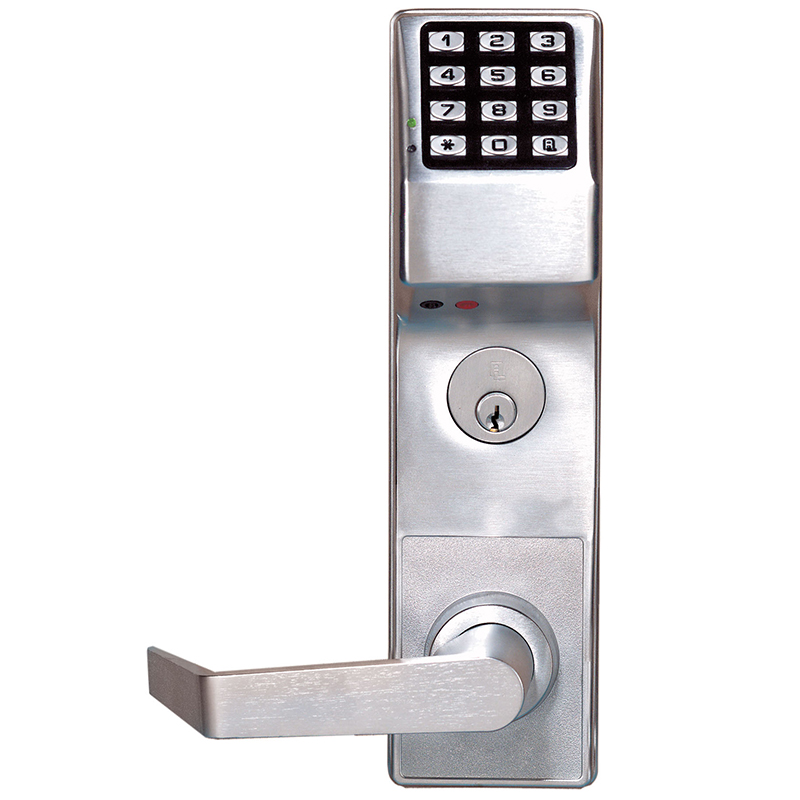

Alarm Lock DL3500DBL US26D Trilogy T3 Mortise Deadbolt

Alarm Lock DL3500DBL US26D Trilogy T3 Mortise w/Deadbolt is a sophisticated solution designed for high-security applications. This pushbutton mortise lock supports up to 300 user codes, including master, manager, supervisor, and basic users, ensuring flexible access control for various needs. With its robust weatherproof design, it operates effectively in extreme temperatures ranging from -31°F to +151°F (-35°C to +66°C), making it suitable for both commercial and residential environments. The lock features a long-lasting battery pack that typically handles 80,000 cycles, along with a low-battery alert to ensure uninterrupted operation. A comprehensive 40,000 event audit trail provides a detailed log of all electronic activities, complete with time and date stamps, which enhances security monitoring. The real-time clock enables up to 500 scheduled events, including holiday schedules, while the card enrollment mode allows for quick addition of access cards without needing a PC. Available in a sleek satin chrome finish, the Alarm Lock DL3500DBL also offers both classroom and deadbolt versions, and can easily be reversed for left or right handing. With its Grade 1 rating and fire rating of 3 hours, this lock combines durability and advanced technology to meet your security needs effectively.

Trilogy T3 Mortise wDeadbolt

Pushbutton Mortise Lock with Deadbolt, 300 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, Left Hand or Right Hand Reverse, Satin Chrome

Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes: Master, manager, supervisor & basic users Fingertip or Windows PC-programmable Real time clock enables up to 500 scheduled events and holiday schedules 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity Long-life battery pack for 80,000 cycles, typ. and low-battery alert Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.) 1 3/8 In. (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or prox enroller tool 40,000 event audit trail log 500 scheduled events, e.g., lock or unlock PC programming/reporting Quick passage mode (without being in program mode) Program data transferred to lock via AL-PCI2 or AL-DTMIII 5AA battery-pak operated; 75,000 cycles, typ. 5 Architectural finishes Weatherproof -31 Deg. to +151 Deg. F (-35 Deg. to +66 Deg. C)

Trilogy Mortise: High security digital locks.

 Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes.

• 300 User codes: Master, manager, supervisor & basic users
• Fingertip or Windows PC-programmable
• Real time clock enables up to 500 scheduled events and holiday schedules
• 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
• Long-life battery pak for 80,000 cycles, typical and low-battery alert
• Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
• 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
• 40,000 event audit trail log
• 500 scheduled events, e.g., lock or unlock
• PC programming/reporting
• Quick passage mode (without being in program mode)
• Program data transferred to lock via AL-PCI2 or AL-DTMIII
• 5AA battery-pak operated; 75,000 cycles, typical
• 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)

Resources

• DL3500 & DL3500EX Programming Instructions
• DL3500 Door Template
• EC Declaration of Conformity for the DL3500 Series Mortise Lock
• UL Single-Point Locks or Latches - Model DL3500
• UL Single-Point Locks or Latches Certified For Canada - Model DL3500
• What's in the Box? DL3500CR
