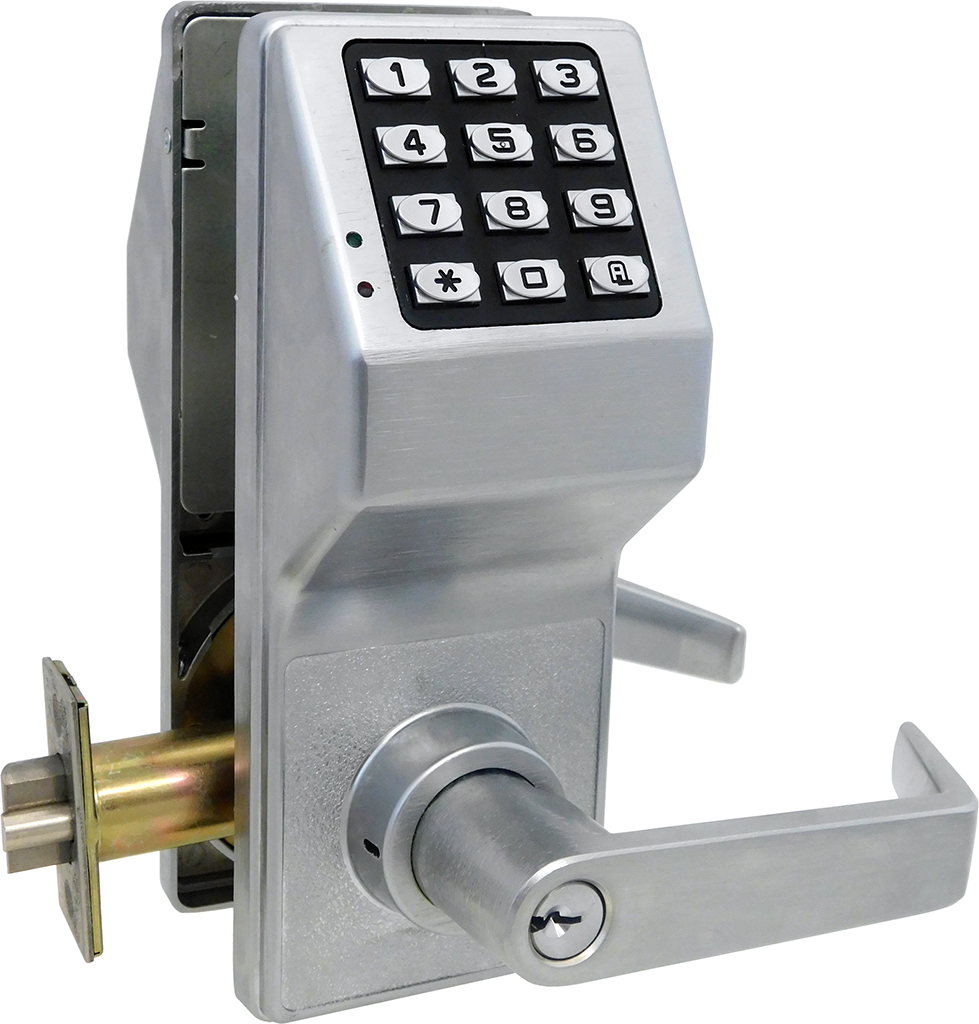

Alarm Lock DL5200IC/26D Trilogy T2 Keypad Double Sided Lock, Best SFIC Prep, 100 Users, Satin Chrome

Alarm Lock Systems Inc DL5200IC/26D Trilogy T2 Keypad Double Sided Cylindrical Standalone Lock offers a robust solution for access control in commercial environments. This double-sided electronic lock is battery-operated and features a weatherproof, all-metal design, ensuring durability in any setting. With the capacity to hold up to 100 user codes, including one master code and ten manager codes, this lock provides flexibility in managing access for various users. The user-friendly 12-button keypad allows for easy programming of all functions directly through the keypad, while the key override on the primary side ensures access in emergencies. The key on the secondary side is designed solely for battery access. Designed to fit doors with thicknesses ranging from 1-5/8" to 1-7/8", the DL5200IC/26D is equipped with a UL-listed, fire-rated latchbolt that features a 1/2" throw for added security. Compliant with BHMA Grade 1 standards, this lockset includes a 2-3/4" backset and is compatible with various interchangeable core models. The satin chrome finish enhances its aesthetic appeal, making it a perfect fit for both modern and traditional spaces. Experience peace of mind with Alarm Lock Systems Inc's commitment to quality and security.

Trilogy T2 Keypad Double Sided Cylindrical Standalone Lock, Best SFIC Prep, 100 Users, No Audit or Scheduled Events, 626/US26D Satin Chrome

Double sided electronic battery operated digital lock. Holds up to 100 user codes, 1 Master, 10 Manager codes & up to 3 one time user codes. Programmable Keypad on both sides of the Door. Key override is only operable on the primary side. The key on the secondary side is used only to remove the lever and access the batteries. Weatherproof, all-metal, 12-button programmable for multi-level access functions. Proximity antenna housing molded of ultra high strength.

Specifications:

• Door Thickness: Fits 1-5/8" to 1-7/8". Other Thickness, please consult factory
• Backset: 2-3/4" (2-3/8" also available)
• Strike: 1-1/8" x 2-3/4" T Strike & 1-1/4" x 4-7/8" ASA Strike included
• Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
• Handing: Non-handed
• Power: 5 AA alkaline batteries (included)
• Keypad: Weatherproof all metal, 12 button. All functions programmed through Keypad.
• Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes
• Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed UL Listed 10C Positive Pressure Specification. FCC Certified . ADA compliant levers
• Cylinder: 6 pin solid brass, SC1 keyway, furnished with all key override locks. Schlage, Corbin-Russwin CL, Sargent 480 Series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
• Interchangeable Core Models: Standard Model accepts 6 & 7 pin cylinders from Best, Falcon, and Arrow.
• All DL5200 Locks are Weather Resistant
• Note: Key override operates latch on primary side only. Key override on secondary side protects battery pack.

Finishes:

• 626/US26D - Satin Chrome Plated
• 640/US10B - Dark Oxidized Satin Bronze, Oil Rubbed
• 632/US3 - Bright Brass, Clear Coated

Features

• Keypad: Weatherproof all metal, 12 button. All functions programmed through Keypad.
• Strike: 1-1/8" x 2-3/4" T Strike & 1-1/4" x 4-7/8" ASA Strike included
• Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed UL Listed 10C Positive Pressure Specification. FCC Certified . ADA compliant levers
• Note: Key override operates latch on primary side only. Key override on secondary side protects battery pack.
• Interchangeable Core Models: Standard Model accepts 6 & 7 pin cylinders from Best, Falcon, and Arrow.
• All DL5200 Locks are Weather Resistant
• Handing: Non-handed
• Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes
• Door Thickness: Fits 1-5/8" to 1-7/8". Other Thickness, please consult factory
• Cylinder: 6 pin solid brass, SC1 keyway, furnished with all key override locks. Schlage, Corbin-Russwin CL, Sargent 480 Series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
• Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
• Power: 5 AA alkaline batteries (included)
• Backset: 2-3/4" (2-3/8" also available)
