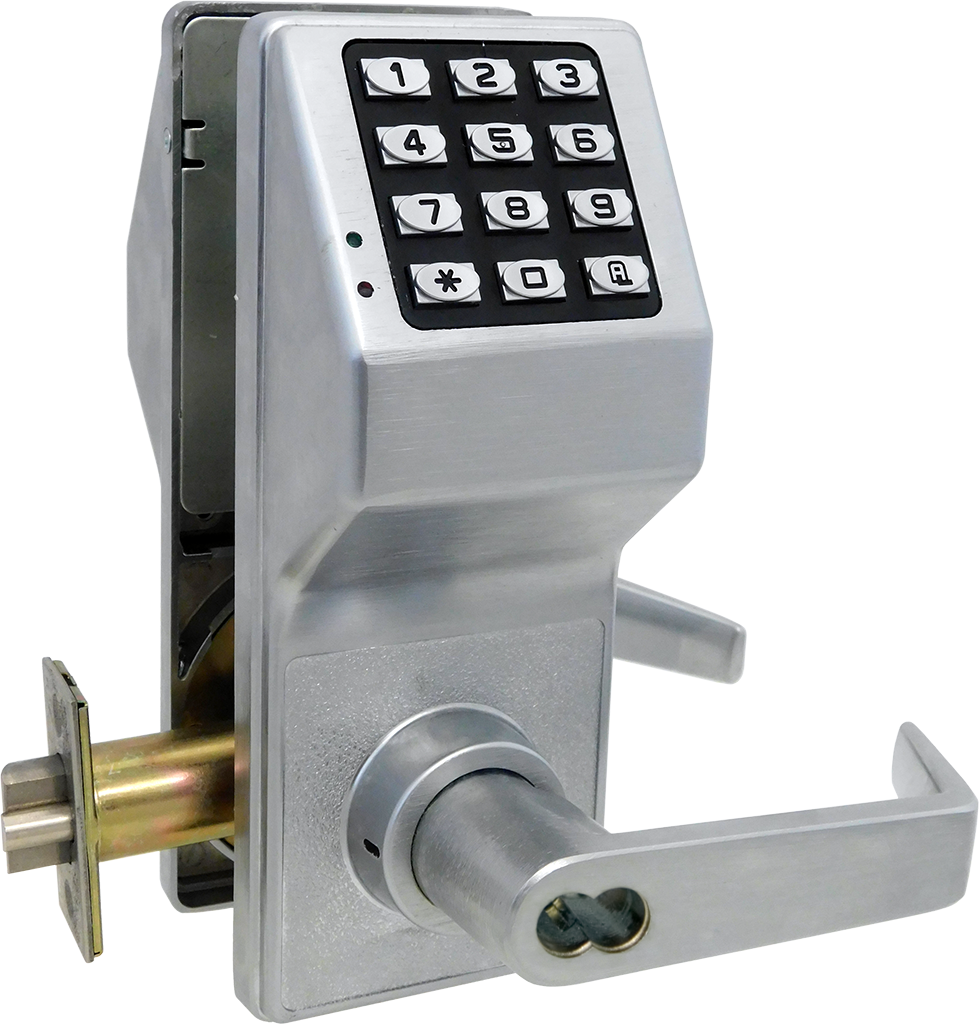

Alarm Lock DL5300IC/26D Trilogy T3 Keypad Double-Sided Lock, Weatherproof, 2000 Users, Satin Chrome

Alarm Lock Systems Inc DL5300IC/26D Trilogy T3 Keypad Double Sided Cylindrical Lock offers robust security with its electronic, battery-operated design. This standalone lock features a weatherproof, all-metal construction and holds up to 2,000 user codes, ensuring reliable access management for commercial applications. Designed for versatility, it supports master, management, supervisor, and basic user codes, alongside a 40,000-event audit trail and the ability to schedule 500 events. The dual-keypad design allows for programming from both sides of the door, enhancing user convenience. The primary keypad is equipped with data transfer capabilities, while the secondary side is secured to protect the battery access. Its UL-listed latchbolt is fire-rated for three hours, providing peace of mind in emergency situations. Installation is straightforward, compatible with door thicknesses between 1-5/8" to 1-7/8", and includes both T and ASA strikes. The lock is ADA compliant and certified as Grade 1, ensuring top-tier durability and security. Powering the lock is easy with five AA alkaline batteries included. With its sleek satin chrome finish and advanced features, the DL5300IC/26D is an excellent choice for those prioritizing security without sacrificing style.

Trilogy T3 Keypad Double Sided Cylindrical Standalone Lock, Weather Proof, Best SFIC, 2000 Users, 40,000 Event Audit Trail and 500 Scheduled Events, 626/US26D Satin Chrome

Double sided electronic battery operated digital lock. Holds up to 2,000 codes, Master, Management, Supervisor & basic user. 500 event schedule, multiple "one-time" user codes & 40,000 event audit trail. Programmable Keypad on both sides of the Door. Only primary Keypad has data transfer capability. Key override is only operable on the primary side. The key on the secondary side is used only to remove the lever and access the batteries. Weatherproof, all-metal, 12-button programmable for multi-level access functions. Proximity antenna housing molded of ultra high strength, impact resistant Lexan.

Specifications:

• Door Thickness: Fits 1-5/8" to 1-7/8". Other Thickness, please consult factory
• Backset: 2-3/4" (2-3/8" also available)
• Strike: 1-1/8" x 2-3/4" T Strike & 1-1/4" x 4-7/8" ASA Strike included
• Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
• Handing: Non-handed
• Power: 5 AA alkaline batteries (included)
• Keypad: All metal, 12 button. All functions programmed through Keypad on both sides
• Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes
• Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed 10C Positive Pressure Specification. FCC Certified. ADA compliant levers
• Cylinder: 6 pin solid brass, SC1 keyway, furnished with all key override locks. Schlage, Corbin-Russwin CL, Sargent 480 Series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
• Interchangeable Core Models: Standard Model accepts 6 & 7 pin cylinders from Best, Falcon, and Arrow.
• Note: Key override operates latch on primary side only. Key override on secondary side protects battery pack.
• All DL5300 Locks are Weather Resistant

Series Models:

Finishes:

• 626/US26D - Satin Chrome Plated
• 640/US10B - Dark Oxidized Satin Bronze, Oil Rubbed
• 632/US3 - Bright Brass, Clear Coated

Features

• Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
• Strike: 1-1/8" x 2-3/4" T Strike & 1-1/4" x 4-7/8" ASA Strike included
• Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed 10C Positive Pressure Specification. FCC Certified. ADA compliant levers
• Keypad: All metal, 12 button. All functions programmed through Keypad on both sides
• Note: Key override operates latch on primary side only. Key override on secondary side protects battery pack.
• Interchangeable Core Models: Standard Model accepts 6 & 7 pin cylinders from Best, Falcon, and Arrow.
• Handing: Non-handed
• Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes
• Door Thickness: Fits 1-5/8" to 1-7/8". Other Thickness, please consult factory
• Cylinder: 6 pin solid brass, SC1 keyway, furnished with all key override locks. Schlage, Corbin-Russwin CL, Sargent 480 Series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
• All DL5300 Locks are Weather Resistant
• Power: 5 AA alkaline batteries (included)
• Backset: 2-3/4" (2-3/8" also available)
