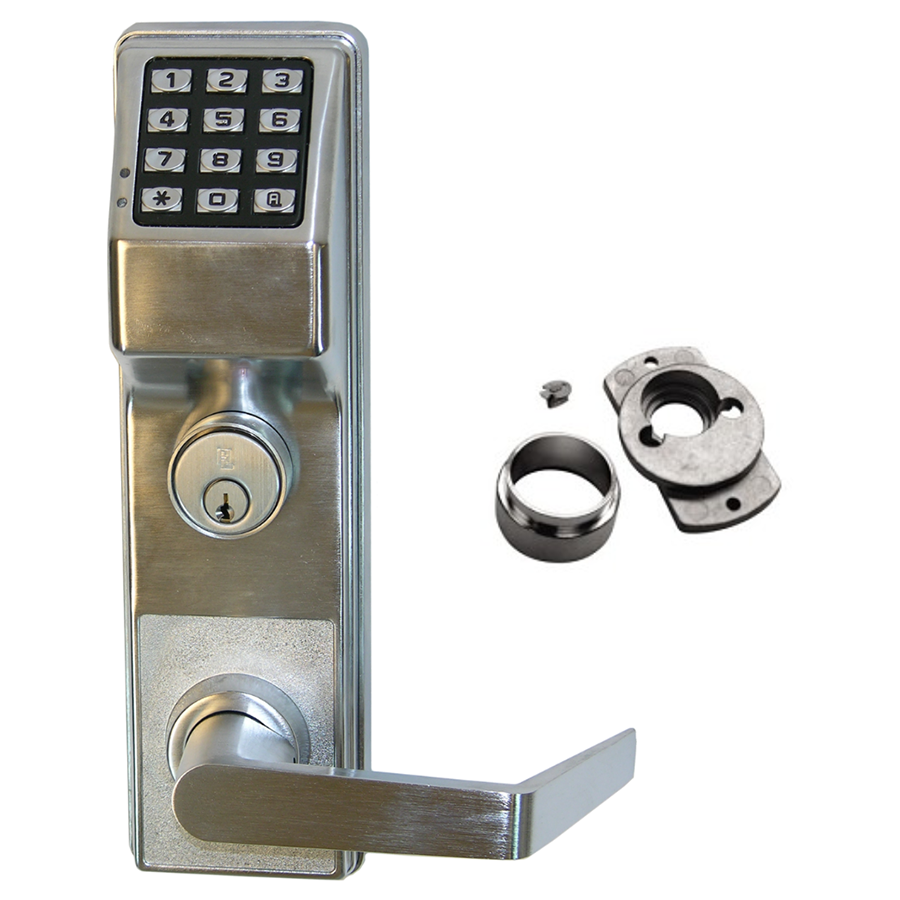

Alarm Lock ETDL27S1ET-SIC/26DM99 Trilogy T2 Keypad - Marks M9900 Exit Trim, Weather Proof, 100 Users, Satin Chrome

Alarm Lock Systems Inc ETDL27S1ET-SIC/26DM99 KIT - Trilogy T2 Keypad combines advanced security with user-friendly access management. Designed for commercial applications, this device features a robust 12-button weather-resistant metal keypad, ensuring durability in various environmental conditions. The non-handed design allows for easy field reversal, making installation straightforward for any door thickness between 1-5/8" to 1-7/8". This kit supports up to 100 users, with the capacity to program 2000 unique access codes. Enhanced access control is possible, as users can be assigned to utilize either a code, a proximity card, or both for maximum security. The device boasts a real-time clock that logs up to 40,000 time/date-stamped events, facilitating detailed audit trails. With a rugged clutch mechanism that reduces wear, this exit device is built for longevity. Powering the system is straightforward with five AA batteries, providing audible low battery alerts and visual indicators for user convenience. The ETDL27S1ET-SIC/26DM99 also maintains compliance with UL safety and fire ratings when installed correctly. Available in a sleek satin chrome finish (US26D), this exit trim is not only functional but adds a modern touch to any building's security system.

KIT - Trilogy T2 Keypad - Marks M9900 Exit Trim, Requires ALAS6146, Weather Proof, Schlage FSIC Rim Cylinder Adaptor, 100 Users, No Audit or Events, 626/US26D Satin Chrome

Trilogy Exit Features:

• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Trilogy Exit with Prox Features:

• Accepts most HID Proximity cards and keyfobs
• Users are individually programmed to use a card only, code only, or for the highest security – both card and code
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Prox Card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-Windows software.
• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Specifications:

• Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering access code, presenting prox card or key bypass, or remote bypass will allow lever to retract latch. Inside panic bar always provides instant egress. (Temperature Range: +150°F to -20° F.)
• Door Thickness: 1 3/4" standard. Other thickness please see ordering information and/or consult factory
• Keypad: Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from weather and elements.)
• Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).
• Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco, Keymark & KabaPeaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm lock tailpiece is supplied; IC Core is not included.
• Cylinder: Requires separately available Cylinder Adapter Kit
• Handing: Non-handed, field reversible
• Compliances: Use of the Alarm Lock Trilogy Exit does not alter or invalidate the UL Safety or Fire Ratings of the Panic Exit Device you are using (when properly installed per Alarm Lock’s instruction sheet).
• Finishes: US3 polished brass, US26D satin chrome, US26 polished chrome, 10B Duranodic, US5 Antique Brass.
• Power: 5 AA alkaline batteries, (supplied) installed in Battery Pack (see below). Audible low battery alert, visual and audible entry indicators

Resources

• Spec Sheet & Parts Breakdown
