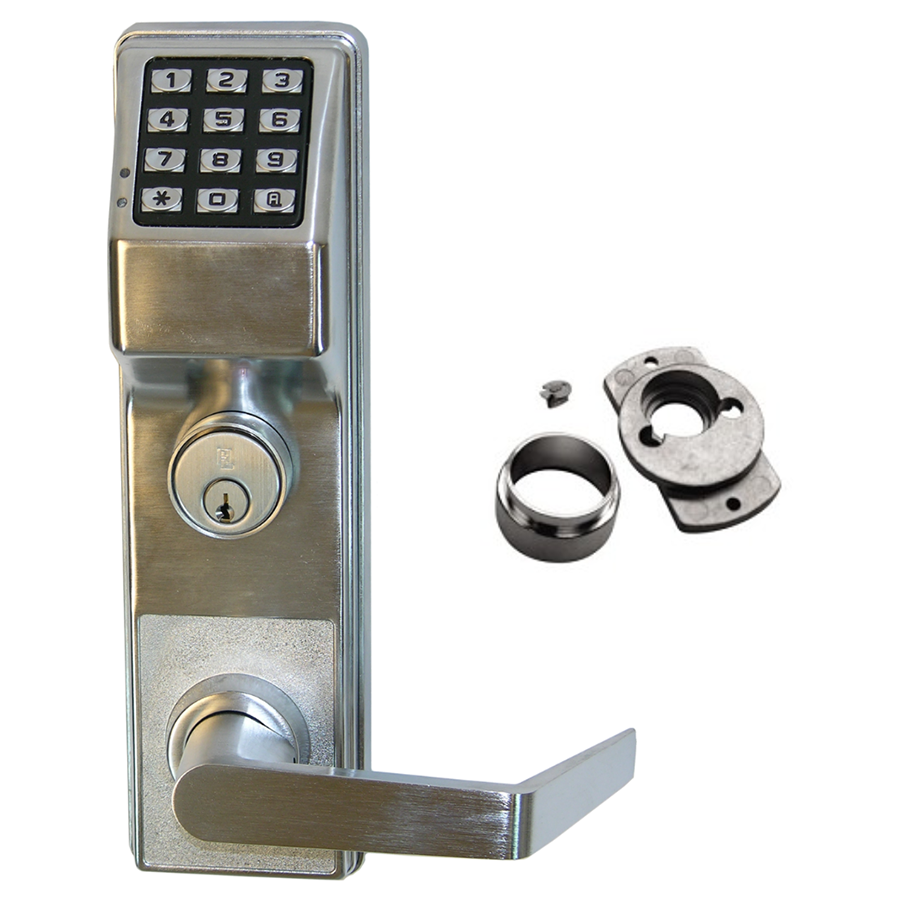

Alarm Lock ETDL27S1ET-SIC/26DNS8 Trilogy T2 Keypad Kit - Sargent 88 Exit Trim, Weather Proof, 100 Users, Satin Chrome

Alarm Lock Systems Inc ETDL27S1ET-SIC/26DNS8 KIT – Trilogy T2 Keypad offers a robust security solution for commercial access management. Designed for durability, it features a rugged, weather-resistant 12-button metal keypad, ensuring reliable performance in various environments. This model supports up to 100 user codes, allowing seamless access for multiple individuals, and its non-handed design ensures easy installation on any door setup. The Trilogy T2 keypad’s field-proven clutch mechanism minimizes stress on the spindle while permitting lever operation without retracting the latch. With advanced programming capabilities, it accommodates both fingertip and Windows programming, enabling extensive control over user access. The device also supports a real-time clock with an impressive audit trail that logs up to 40,000 events, making it ideal for facilities that require detailed tracking. Designed for compatibility with major manufacturers' standard RIM and IC RIM cylinders, this system also includes an adaptor for Schlage FSIC rim cylinders. It operates on 5 AA batteries, complete with an audible low battery alert for convenience. Finish options include a sleek satin chrome (US26D), ensuring it complements various architectural styles while maintaining a Grade 1 rating for security. The Alarm Lock Systems Inc ETDL27S1ET-SIC/26DNS8 KIT is a reliable choice for those seeking advanced access control solutions.

KIT - Trilogy T2 Keypad - New Sargent 88 Exit Trim, Weather Proof, Schlage FSIC Rim Cylinder Adaptor, 100 Users, No Audit or Events, 626/US26D Satin Chrome

Trilogy Exit Features:

• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Trilogy Exit with Prox Features:

• Accepts most HID Proximity cards and keyfobs
• Users are individually programmed to use a card only, code only, or for the highest security – both card and code
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Prox Card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-Windows software.
• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Specifications:

• Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering access code, presenting prox card or key bypass, or remote bypass will allow lever to retract latch. Inside panic bar always provides instant egress. (Temperature Range: +150°F to -20° F.)
• Door Thickness: 1 3/4" standard. Other thickness please see ordering information and/or consult factory
• Keypad: Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from weather and elements.)
• Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).
• Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco, Keymark & KabaPeaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm lock tailpiece is supplied; IC Core is not included.
• Cylinder: Requires separately available Cylinder Adapter Kit
• Handing: Non-handed, field reversible
• Compliances: Use of the Alarm Lock Trilogy Exit does not alter or invalidate the UL Safety or Fire Ratings of the Panic Exit Device you are using (when properly installed per Alarm Lock’s instruction sheet).
• Finishes: US3 polished brass, US26D satin chrome, US26 polished chrome, 10B Duranodic, US5 Antique Brass.
• Power: 5 AA alkaline batteries, (supplied) installed in Battery Pack (see below). Audible low battery alert, visual and audible entry indicators

Resources

• Spec Sheet & Parts Breakdown
