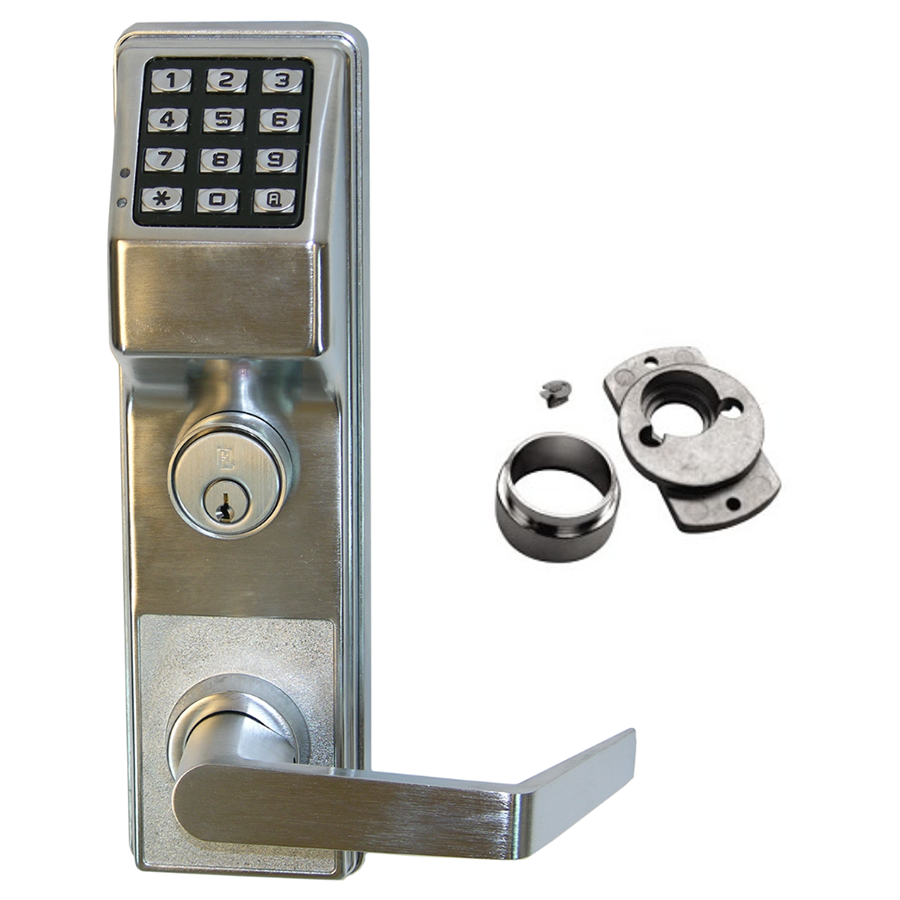

Alarm Lock ETDL27S1ET-SIC/26DY71 Trilogy T2 Keypad Exit Trim Kit, Weather Proof, 100 Users, Satin Chrome

Alarm Lock Systems Inc ETDL27S1ET-SIC/26DY71 KIT is a reliable and weatherproof solution designed for enhanced security and access control. This Trilogy T2 Keypad model is equipped with a rugged 12-button metal keypad that stands up to the elements, ensuring durability and long-lasting performance. It accommodates up to 100 user codes, making it ideal for various applications, from commercial settings to residential use. Featuring a field-proven clutch mechanism, this device offers the ability to turn the lever without retracting the latch, reducing wear and tear on the spindle. The keypad is fully programmable via fingertip or Windows software, allowing users to manage access with ease. With real-time clock functionality, it can maintain an audit trail of up to 40,000 events, providing valuable insights into entry activities. This model is adaptable to most major manufacturers’ standard RIM and IC RIM cylinders, making installation straightforward. The battery-operated design utilizes five AA batteries, conveniently mounted on the interior door. With compliance to UL safety and fire ratings, the ETDL27S1ET-SIC/26DY71 KIT ensures safety remains uncompromised. Available in a sleek satin chrome finish, this exit trim combines functionality with an elegant appearance, perfect for modern security needs.

KIT - Trilogy T2 Keypad - Corbin/Yale Exit Trim, Weather Proof, Schlage FSIC Rim Cylinder Adaptor, 100 Users, No Audit or Events, 626/US26D Satin Chrome

Trilogy Exit Features:

• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Trilogy Exit with Prox Features:

• Accepts most HID Proximity cards and keyfobs
• Users are individually programmed to use a card only, code only, or for the highest security – both card and code
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Prox Card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-Windows software.
• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Specifications:

• Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering access code, presenting prox card or key bypass, or remote bypass will allow lever to retract latch. Inside panic bar always provides instant egress. (Temperature Range: +150°F to -20° F.)
• Door Thickness: 1 3/4" standard. Other thickness please see ordering information and/or consult factory
• Keypad: Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from weather and elements.)
• Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).
• Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco, Keymark & KabaPeaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm lock tailpiece is supplied; IC Core is not included.
• Cylinder: Requires separately available Cylinder Adapter Kit
• Handing: Non-handed, field reversible
• Compliances: Use of the Alarm Lock Trilogy Exit does not alter or invalidate the UL Safety or Fire Ratings of the Panic Exit Device you are using (when properly installed per Alarm Lock’s instruction sheet).
• Finishes: US3 polished brass, US26D satin chrome, US26 polished chrome, 10B Duranodic, US5 Antique Brass.
• Power: 5 AA alkaline batteries, (supplied) installed in Battery Pack (see below). Audible low battery alert, visual and audible entry indicators

Resources

• Spec Sheet & Parts Breakdown
