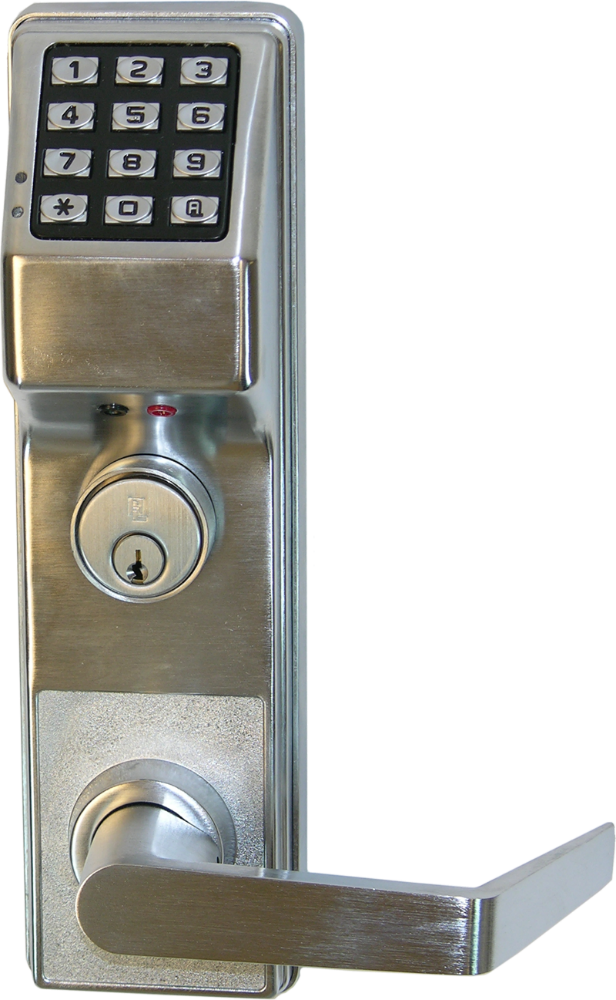

Alarm Lock Systems Inc ETDLS1ET-S/26DS88 Trilogy T3 Keypad combines advanced access control with robust security features. Designed specifically for use with the Old Sargent 88 Exit Trim, this weatherproof keypad is ideal for both commercial and residential applications. With the ability to support up to 2,000 user codes, including master, manager, and supervisor levels, it ensures comprehensive access management tailored to your needs. The rugged 12-button metal keypad is not just durable; it also features a fully field-reversible design, making installation a breeze. With a real-time clock and an impressive 40,000 audit trail events, you can effectively monitor and manage access with ease. The flexibility of up to 500 scheduled lock/unlock events allows for precise control over entry times. Powered by 5 AA batteries, which are included, the device is equipped with visual and audible indicators for low battery alerts, ensuring reliability at all times. Compatible with most major manufacturers' standard RIM and IC RIM cylinders, it provides a versatile solution for various locking systems. The ETDLS1ET-S/26DS88 is finished in satin chrome (US26D), adding a touch of elegance while maintaining its rugged functionality. Experience peace of mind with the Alarm Lock Trilogy T3 Keypad, where security meets innovation.

Trilogy T3 Keypad - Old Sargent 88 Exit Trim, Weather Proof, Schlage Rim Cylinder Adaptor, 2000 Users, 500 Scheduled Events, 40,000 Audit Trail Events, 626/US26D Satin Chrome

Trilogy Exit Features:

• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Trilogy Exit with Prox Features:

• Accepts most HID Proximity cards and keyfobs
• Users are individually programmed to use a card only, code only, or for the highest security – both card and code
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Prox Card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-Windows software.
• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Specifications:

• Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering access code, presenting prox card or key bypass, or remote bypass will allow lever to retract latch. Inside panic bar always provides instant egress. (Temperature Range: +150°F to -20° F.)
• Door Thickness: 1 3/4" standard. Other thickness please see ordering information and/or consult factory
• Keypad: Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from weather and elements.)
• Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).
• Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco, Keymark & KabaPeaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm lock tailpiece is supplied; IC Core is not included.

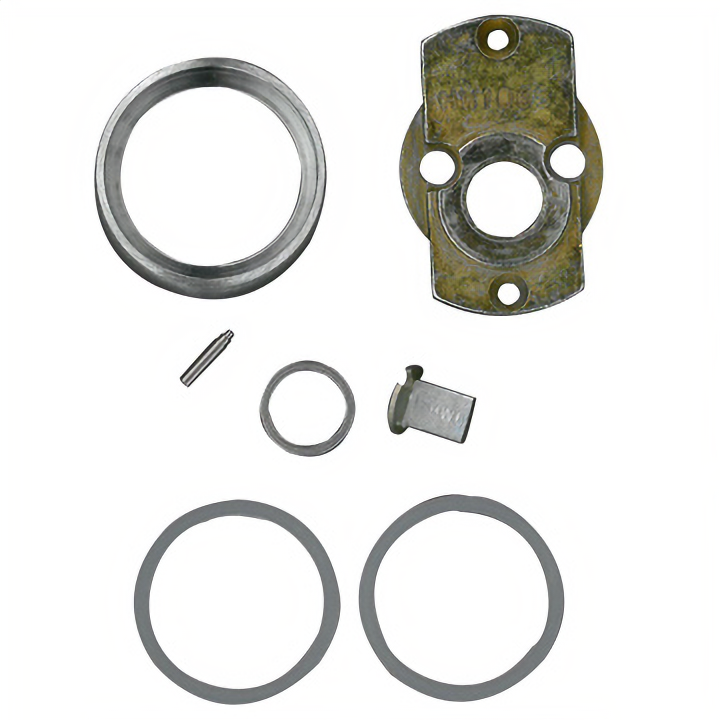

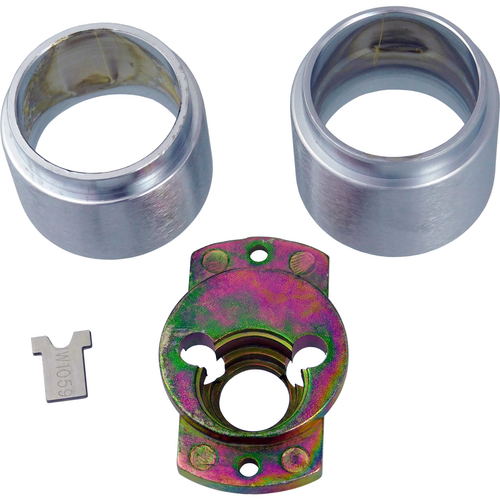

• Cylinder: Requires separately available Cylinder Adapter Kit
• Handing: Non-handed, field reversible
• Compliances: Use of the Alarm Lock Trilogy Exit does not alter or invalidate the UL Safety or Fire Ratings of the Panic Exit Device you are using (when properly installed per Alarm Lock’s instruction sheet).
• Finishes: US3 polished brass, US26D satin chrome, US26 polished chrome, 10B Duranodic, US5 Antique Brass.
• Power: 5 AA alkaline batteries, (supplied) installed in Battery Pack (see below). Audible low battery alert, visual and audible entry indicators

Resources

• Spec Sheet & Parts Breakdown
