Alarm Lock ETPDLS1ET-AS/26DV99 Trilogy T3 Prox Reader Keypad - Von Duprin Exit Trim, Weather Proof, Satin Chrome

Alarm Lock Systems Inc ETPDLS1ET-AS/26DV99 KIT - Trilogy T3 Prox Reader Keypad is designed to provide robust security solutions for commercial environments. This advanced exit trim incorporates a weatherproof, rugged 12-button metal keypad, allowing for fingertip and Windows programming. With the capacity to manage up to 2000 user codes, it supports master, manager, supervisor, and standard user access levels, ensuring tailored security management. The unit features a non-handed, fully reversible design, making it adaptable to a variety of door configurations. Its field-proven clutch mechanism allows the lever to turn without retracting the latch, significantly reducing wear and tear while providing instant egress via the inside panic bar. The Trilogy T3 also boasts a real-time clock that records up to 40,000 events in a time/date-stamped audit trail, along with the ability to schedule up to 500 lock/unlock events with time zone support. Compatible with most major manufacturers of standard RIM and IC RIM cylinders, this unit requires a separately available cylinder adapter kit for installation. Powered by 5 AA batteries, it includes audible low battery alerts and visual indicators for user feedback. With a satin chrome finish (US26D), the Trilogy T3 Prox Reader Keypad combines durability with an appealing aesthetic, making it an excellent choice for access control needs.

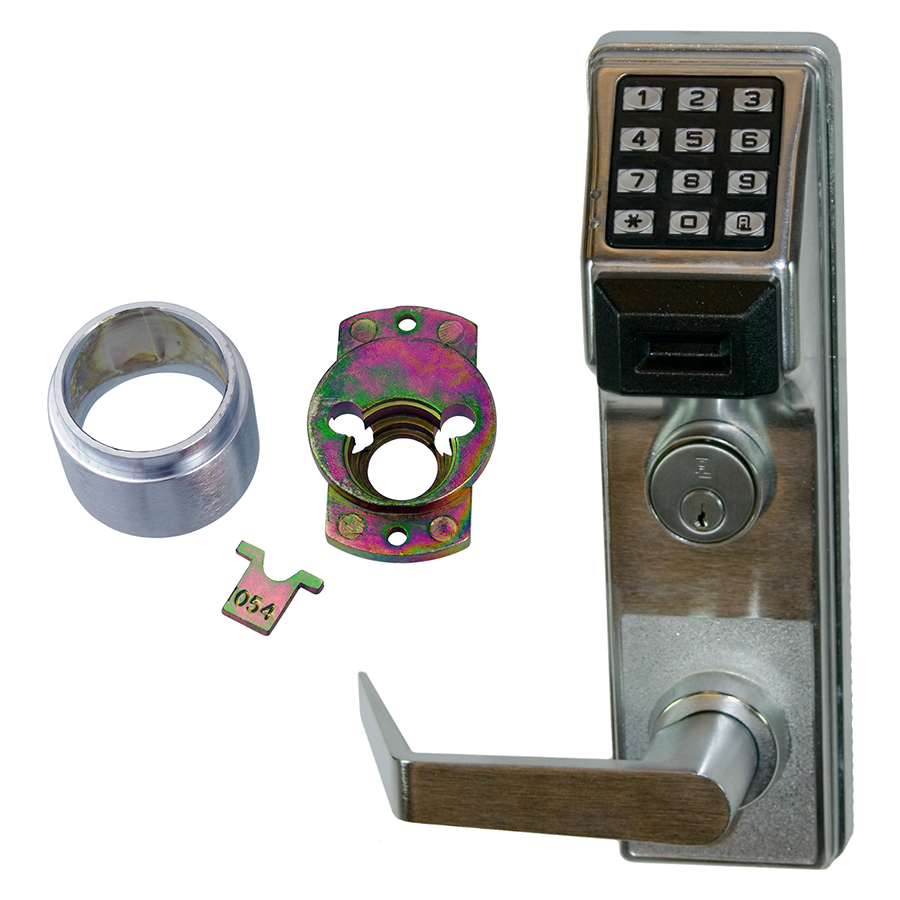

KIT - Trilogy T3 Prox Reader Keypad - Von Duprin Exit Trim, Weather Proof, ASSA Rim Cylinder Adaptor, 2000 Users, 500 Scheduled Events, 40,000 Audit Trail Events, 626/US26D Satin Chrome

Trilogy Exit Features:

• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Trilogy Exit with Prox Features:

• Accepts most HID Proximity cards and keyfobs
• Users are individually programmed to use a card only, code only, or for the highest security – both card and code
• 2000 User Codes: Master, manager, supervisor and users
• Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Prox Card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-Windows software.
• Field-proven clutch Mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• Rugged 12-Button Weather-Resistant Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Specifications:

• Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering access code, presenting prox card or key bypass, or remote bypass will allow lever to retract latch. Inside panic bar always provides instant egress. (Temperature Range: +150°F to -20° F.)
• Door Thickness: 1 3/4" standard. Other thickness please see ordering information and/or consult factory
• Keypad: Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from weather and elements.)
• Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).
• Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco, Keymark & KabaPeaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm lock tailpiece is supplied; IC Core is not included.
• Cylinder: Requires separately available Cylinder Adapter Kit
• Handing: Non-handed, field reversible
• Compliances: Use of the Alarm Lock Trilogy Exit does not alter or invalidate the UL Safety or Fire Ratings of the Panic Exit Device you are using (when properly installed per Alarm Lock’s instruction sheet).
• Finishes: US3 polished brass, US26D satin chrome, US26 polished chrome, 10B Duranodic, US5 Antique Brass.
• Power: 5 AA alkaline batteries, (supplied) installed in Battery Pack (see below). Audible low battery alert, visual and audible entry indicators
